09- Rear Cargo Box

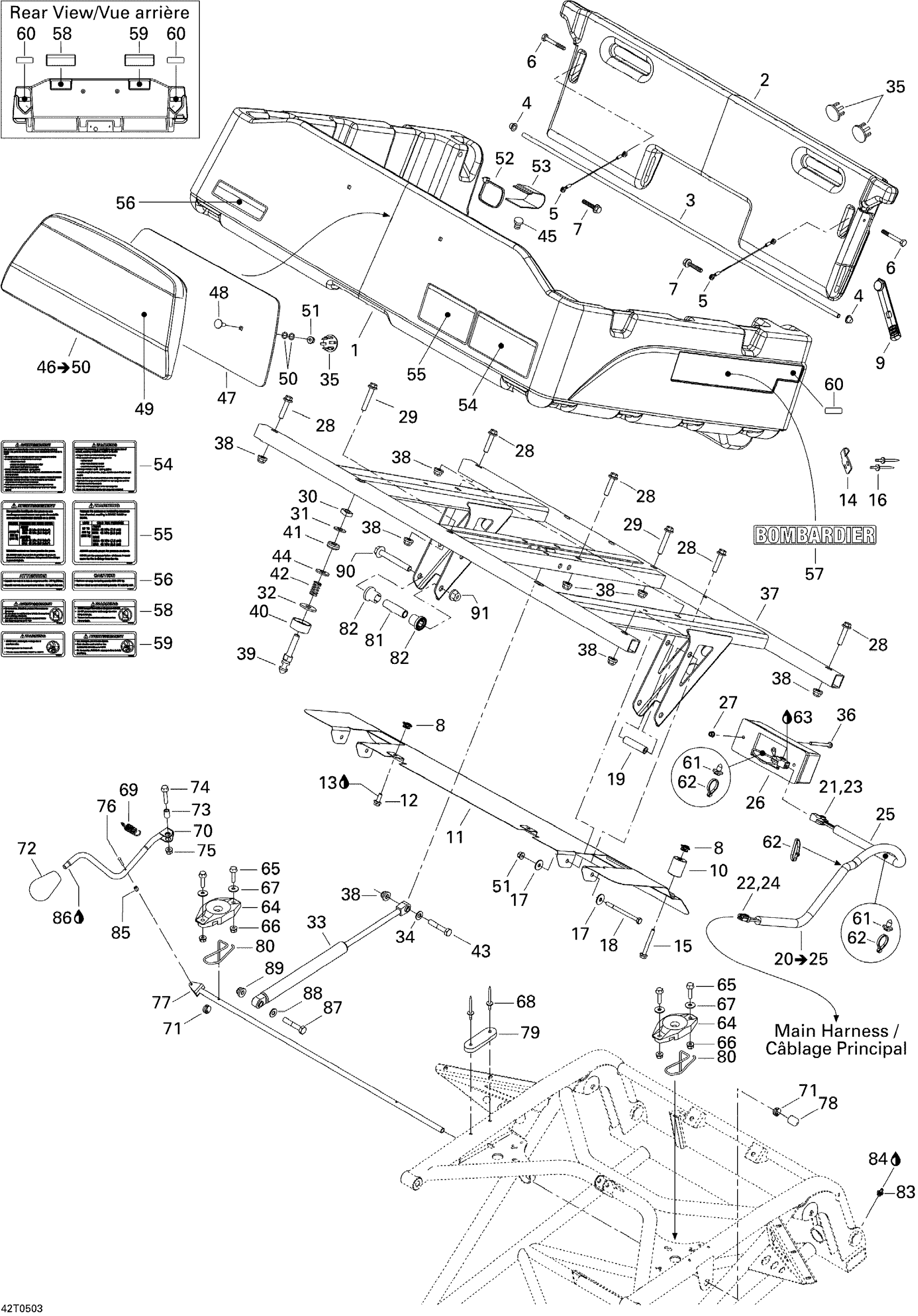

Can-Am Traxter XL, 2005 09- Rear Cargo Box Diagram
#
1
Box
705001600
Unavailable
2
Panel
705000220
Unavailable
3
Pivot Tube, black
705000294
Unavailable
4
PUSHNUT CAP 3/8 - Call your local BRP dealership
293000097
Unavailable
5
PANEL CABLE - Call your local BRP dealership
705000296
Unavailable
6
HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership
243164540
Unavailable
7
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
8
JACK NUT M6 - Call your local BRP dealership
732610057
Unavailable
9
Panel Bracket
705000297
Unavailable
10
SPACER - Call your local BRP dealership
705000114
Unavailable
11
Heat Shield
705001227
Unavailable
12
Hex. Flange Screw M6 X 16
207661644
Unavailable
13
Loctite 609, 10 ml
413703100
Unavailable
14
LATCH SUPPORT - Call your local BRP dealership
291000166
Unavailable
15
Hex. Flange Screw M6 X 50
207665044
Unavailable
16
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
17
Flat Washer
224061201
Unavailable
18
Hex. Screw M6 X 80
207068044
Unavailable
19
Bushing
705001358
Unavailable
20
Harness | Includes 20 to 25
710000721
Unavailable
21
Male Terminal
515175232
Unavailable
22
Female Terminal
515175231
Unavailable
23
Male Housing, 3 Circuits
515175494
Unavailable
24
Female Housing, 3 Circuits
515175495
Unavailable
25
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
26
Tail Light Housing Ass'y | Includes 17 to 20
710000711
Unavailable
27
Hex. Flange Elastic Nut M5
233251414
Unavailable
28
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
29
Hex. Flange Screw M8 X 50
207685044
Unavailable
30
Square Nut M10
232802412
Unavailable
31
Washer
503175800
Unavailable
32
WASHER - Call your local BRP dealership
506148100
Unavailable
33
Gas Shock
705000261
Unavailable
34
Flat Washer 8 mm
234081410
Unavailable
35
PROTECTOR CAP - Call your local BRP dealership
293000096
Unavailable
36
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
37
Box Support, Black
705001279
Unavailable
38
Hex. Flange Elastic Nut M8
233281414
Unavailable
39
LATCH STUD - Call your local BRP dealership
293750032
Unavailable
40
Rubber Pad
293830025
Unavailable
41
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
42
Spring
705000307
Unavailable
43
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
44
Flat Washer M10 | 4X4
250200014
Unavailable
45
Cap
705000323
Unavailable
46
BACKREST COVER ASS'Y - Call your local BRP dealership | Includes 46 to 50
708000079
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
CARRIAGE BOLT M6 X 30
207763060
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
50
Locking Nut
250100020
Unavailable
51
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
52
Tie Wrap 368 mm
293750008
Unavailable
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Warning Label, Cargo | English Version
704900926
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
WARNING LABEL, TIRE PRESSURE - Call your local BRP dealership | English Version
704900925
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
56
WARNING LABEL, BOX CAPACITY - Call your local BRP dealership | English Version
704900443
Unavailable
56
Warning Label, Box Capacity | French Version
704900445
Unavailable
57
Bombardier Label
704900136
Unavailable
58
WARNING LABEL, FLAMABLE - Call your local BRP dealership | English Version
704900759
Unavailable
58
WARNING LABEL, FLAMABLE - Call your local BRP dealership | French Version
704900760
Unavailable
59
WARNING LABEL, PASSENGER - Call your local BRP dealership | English Version
704900757
Unavailable
59
WARNING LABEL, PASSENGER - Call your local BRP dealership | French Version
704900758
Unavailable
60
REAR REFLECTOR - Call your local BRP dealership
704900128
Unavailable
61
Mount Dart
293730040
Unavailable
62
Tie Wrap 142 mm
293750002
Unavailable
63
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
64
Latch Base
708000034
Unavailable
65
Hex. Flange Screw M6 X 25
207662544
Unavailable
66
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
67
Flat Washer M6, Stainless
234062600
Unavailable
68
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
69
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
Unavailable
70
Lever, black
705000253
Unavailable
71
SLEEVE - Call your local BRP dealership
705000292
Unavailable
72
LEVER BUTTON - Call your local BRP dealership
705500022
Unavailable
73
Sleeve
293900078
Unavailable
74
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
75
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
76
ROUND HEAD RIVET - Call your local BRP dealership
293150084
Unavailable
77
CENTRAL TUBE, BLACK - Call your local BRP dealership
705000289
Unavailable
78
CAP - Call your local BRP dealership
705000300
Unavailable
79
Rubber Support
705000299
Unavailable
80
SPRING - Call your local BRP dealership
705000259
Unavailable
81
Internal Bushing
706200061
Unavailable
82
Cushion
706200063
Unavailable
83
Grease Fitting
408200700
Unavailable
84
Synthetic Grease, 400 G
293550010
Unavailable
85
RING HOLDER - Call your local BRP dealership
705000305
Unavailable
86
Loctite 243, 10 ml
293800060
Unavailable
87
Hex. Screw M8 X 45
207084544
Unavailable
88
Flat Washer 8 mm
234081410
Unavailable
89
Hex. Flange Elastic Nut M8
233281414
Unavailable
90
Hex. Flange Screw M10 X 70
207607046
Unavailable
91
Hex. Flange Nut M10
233001414
Unavailable
