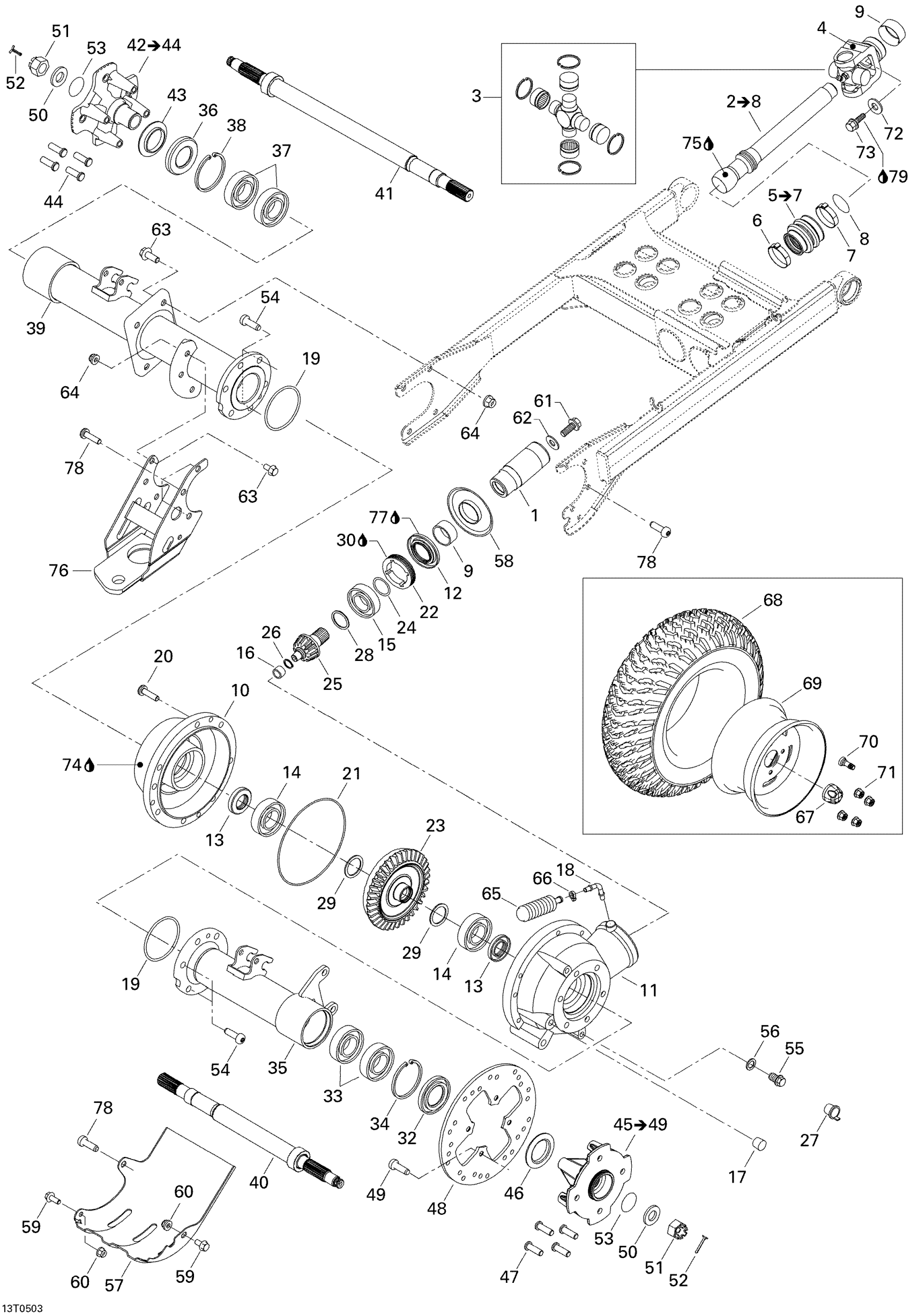

Can-Am Traxter XL, 2005 Drive System, Rear Diagram

#

Description
Price

1

Front Bushing Shaft Kit | 4X4

703500678

$104.58

2

Rear Drive Axle Ass'y | Includes 2 to 8

705500393

Unavailable

3

Universal Joint

715900326

$69.20

4

Fixed Yoke Joint

715900116

$59.97

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

7

Collar | 4X4

705400148

Unavailable

8

SEALING RING - Call your local BRP dealership

705500315

Unavailable

9

Wear Ring | 4X4

705400036

$25.35

10

Rear Cover

705500175

Unavailable

11

PINION REAR COVER - Call your local BRP dealership

705500512

Unavailable

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$17.66

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing | 4X4

705500260

$30.39

16

Needle Bearing | 4X4

705500261

$17.66

17

Drain Plug | 4X4

705500894

$11.06

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

O-RING - Call your local BRP dealership

705500263

Unavailable

20

Screw | 4X4

705401601

$9.29

21

Seal | 4X4

705500265

$16.12

22

Nut | 4X4

705401603

$36.89

23

GEAR, 36 TEETH - Call your local BRP dealership

705500416

Unavailable

24

O-Ring | 4X4

705500267

$6.25

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$16.12

29

Shim | 4X4

705401604

$55.35

30

Loctite 243, 10 ml

293800060

$20.77

31

Not Available As Spare Part - Friction Washer

Unavailable

32

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

33

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

34

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

35

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

36

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

37

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

38

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

39

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

40

RH AXLE - Call your local BRP dealership

705500183

Unavailable

41

LH AXLE - Call your local BRP dealership

705500184

Unavailable

42

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

43

WEAR RING - Call your local BRP dealership

705500100

Unavailable

44

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

45

RH REAR WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 41 to 45

705500634

Unavailable

46

WEAR RING - Call your local BRP dealership

705500100

Unavailable

47

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

48

Brake Disc

705600343

Unavailable

49

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

50

WASHER - Call your local BRP dealership

250200019

Unavailable

51

Hex. Flange Castellated Nut M18

232291413

$2.82

52

Cotter Pin

250400036

$1.74

53

O-RING - Call your local BRP dealership

705500271

Unavailable

54

Torx Screw M10 X 30

250000085

Unavailable

55

Fill Level Plug | 4X4

705500504

$7.61

56

Copper Washer | 4X4

705500506

$0.36

57

Differential Protector, Black

705500565

Unavailable

58

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

59

Hex. Flange Screw M8 X 16

207681644

$4.02

60

Hex. Flange Nut M8

233181414

$0.91

61

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

62

Flat Washer M10 | 4X4

250200014

$1.17

63

Hex. Flange Screw M10 X 25

207602544

$1.33

64

Hex. Flange Elastic Nut M10

233201414

$1.26

65

Rubber Bellow | 4X4

705400552

$6.02

66

Tie Wrap 94 mm | 4X4

293750001

$0.83

67

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

68

Rear Tire

705500230

Unavailable

69

Rear Rim

705500555

Unavailable

70

Rim Valve With Cap

705400193

$6.69

71

Steel Wheel Nut

250100042

$2.48

72

Washer

211200041

$2.63

73

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

74

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

75

Synthetic Grease, 400 G

293550010

Unavailable

76

Trailer Hook, Black

705500244

Unavailable

77

Synthetic Grease, 400 G

293550010

Unavailable

78

TORX SCREW M10 X 33 - Call your local BRP dealership

250000190

Unavailable

79

Loctite 271, 10 ml

293800005

$20.77
