07- Steering System

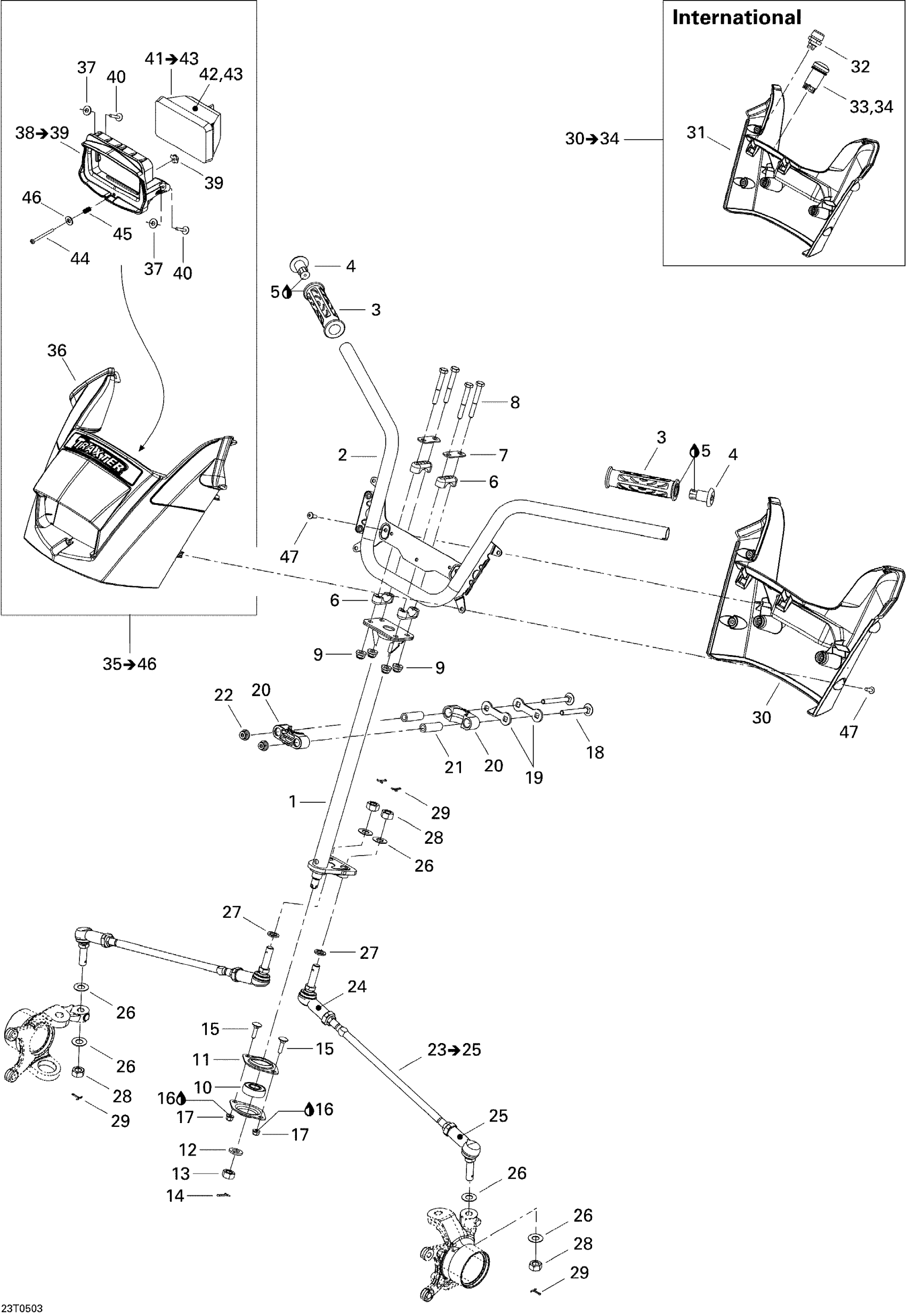

Can-Am Traxter XL, 2005 07- Steering System Diagram
#
1
Main Tube, Black
709400305
Unavailable
2
HANDLE BAR - Call your local BRP dealership
709400300
Unavailable
3
Handle Grip
709400493
Unavailable
4
END-PIECE - Call your local BRP dealership | DS 650
709400189
Unavailable
5
Loctite 406, 7 Oz
293800100
Unavailable
6
Steering Support
709400919
Unavailable
7
Stiffner
709400509
Unavailable
8
Hex. Screw M8 X 60
207086046
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Ball Bearing
709400439
Unavailable
11
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
12
Flat Washer 12 mm
234021410
Unavailable
13
Nut M12
250100099
Unavailable
14
Cotter Pin
211400017
Unavailable
15
Carriage Bolt M6 X 25
207762544
Unavailable
16
Loctite 243, 10 ml
293800060
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Carriage Bolt M8 X 70
207787044
Unavailable
19
Stopper Plate
506150600
Unavailable
20
HALF-HOUSING - Call your local BRP dealership
709400034
Unavailable
21
Housing Bushing
506150500
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
ROD-TIE ASS'Y - Call your local BRP dealership
709400489
Unavailable
24
RH Ball Joint
709402302
Unavailable
25
LH Ball Joint
709402303
Unavailable
26
Hardened Washer
706200281
Unavailable
27
Washer
503189276
Unavailable
28
Nut M12
250100099
Unavailable
29
Cotter Pin
211400013
Unavailable
30
REAR STEERING COVER - Call your local BRP dealership
709400252
Unavailable
30
Rear Steering Cover Ass'y | Europe / Includes 32 to 36
709400336
Unavailable
31
REAR STEERING COVER - Call your local BRP dealership
709400252
Unavailable
32
Push Button
415130372
Unavailable
33
EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe
710000367
Unavailable
34
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe
710000661
Unavailable
35
FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter STD 5 Speed / Includes 37 to 48
709400334
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Washer M5
250200025
Unavailable
38
Light Stand Ass'y | Includes 40 to 41
709400296
Unavailable
39
T-NUT, M4 - Call your local BRP dealership
250100030
Unavailable
40
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
41
CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45
710000712
Unavailable
42
LAMP HOUSING - Call your local BRP dealership
705000284
Unavailable
43
BULB - Call your local BRP dealership
710000762
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Spring
517168600
Unavailable
46
Washer M5
250200025
Unavailable
47
Torx Screw K50 X 16
250000720
Unavailable
