- Traxter XL, 2005
07- Drive System, Front

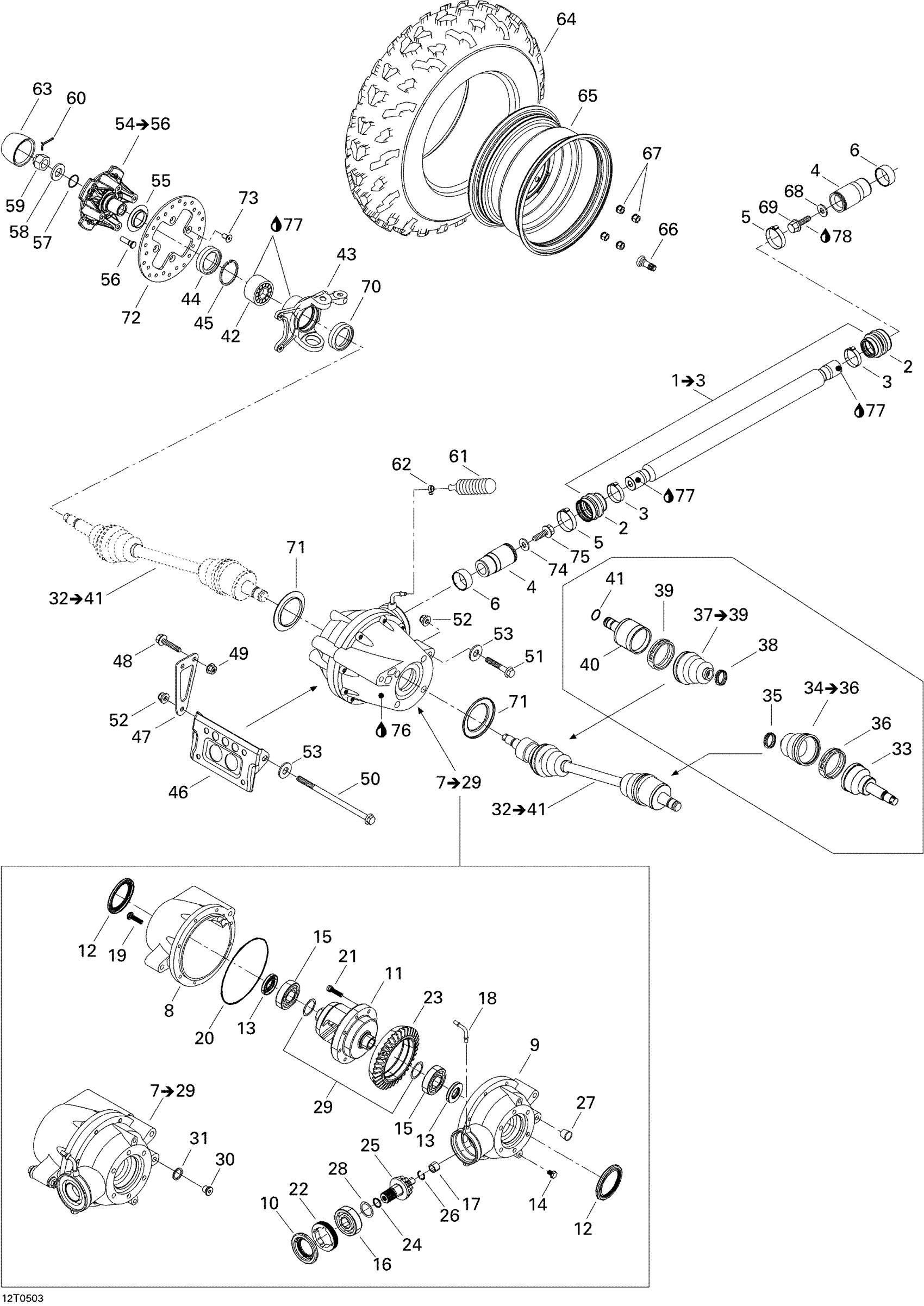

Can-Am Traxter XL, 2005 07- Drive System, Front Diagram
#
1
Front Drive Axle Ass'y | Includes 1 to 3
705400334
Unavailable
2
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
3
Collar | 4X4
705400148
Unavailable
4
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
5
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
6
Wear Ring | 4X4
705400036
Unavailable
7
Front Differential Ass'y | Includes 7 to 29
705400264
Unavailable
8
Front Cover
705400099
Unavailable
9
PINION REAR COVER - Call your local BRP dealership
705500515
Unavailable
10
Oil Seal | 4X4
705401481
Unavailable
11
DIFFERENTIAL - Call your local BRP dealership
705400404
Unavailable
12
OIL SEAL - Call your local BRP dealership
705400019
Unavailable
13
Gasket | 4X4
705401618
Unavailable
14
Drain Plug | 4X4
705500894
Unavailable
15
Ball Bearing | 4X4
705401606
Unavailable
16
Ball Bearing | 4X4
705500260
Unavailable
17
Needle Bearing | 4X4
705500261
Unavailable
18
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
19
Screw | 4X4
705401601
Unavailable
20
Seal | 4X4
705500265
Unavailable
21
RING GEAR SCREW - Call your local BRP dealership | 4X4
705400101
Unavailable
22
Nut | 4X4
705401603
Unavailable
23
GEAR, 36 TEETH - Call your local BRP dealership | 4X4
705400192
Unavailable
24
O-Ring | 4X4
705500267
Unavailable
25
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
26
RETAINING RING - Call your local BRP dealership | 4X4
705500269
Unavailable
27
PROTECTION PLUG - Call your local BRP dealership
705500516
Unavailable
28
Pinion Gear Shim .022"
705500075
Unavailable
29
Shim | 4X4
705401604
Unavailable
30
Fill Level Plug | 4X4
705500504
Unavailable
31
Copper Washer | 4X4
705500506
Unavailable
32
LH CV JOINT - Call your local BRP dealership | Includes 32 to 41
705400124
Unavailable
32
RH CV JOINT - Call your local BRP dealership | Includes 32 to 41
705400125
Unavailable
33
CV JOINT - Call your local BRP dealership
705400093
Unavailable
34
Boot Wheel Kit | 4X4 / Includes 36 to 38
705400127
Unavailable
35
CLAMP - Call your local BRP dealership | 4X4
705400064
Unavailable
36
Clamp | 4X4
705400180
Unavailable
37
Boot Differential Kit | 4X4 / Includes 39 to 41
705400126
Unavailable
38
CLAMP - Call your local BRP dealership | 4X4
705400064
Unavailable
39
Clamp | 4X4
705400181
Unavailable
40
RH Plunging Joint
705400128
Unavailable
40
LH Plunging Joint
705400129
Unavailable
41
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
42
Ball Bearing
293350150
Unavailable
43
RH Knuckle
709400095
Unavailable
43
LH KNUCKLE - Call your local BRP dealership
709400097
Unavailable
44
OIL SEAL - Call your local BRP dealership
705500099
Unavailable
45
Circlip
293370019
Unavailable
46
DIFFENTIAL FRONT BRACKET - Call your local BRP dealership
705400255
Unavailable
47
RH Diffential Front Bracket
705400069
Unavailable
48
Hex. Flange Screw M8 X 20
207682044
Unavailable
49
Hex. Flange Elastic Nut M8
233281414
Unavailable
50
Flange Screw M10 X 200, Scotch Grip
250000024
Unavailable
51
Hex. Flange Screw M10 X 65
207606536
Unavailable
52
Hex. Flange Elastic Nut M10
233201436
Unavailable
53
Flat Washer
250200003
Unavailable
54
Wheel Hub Ass'y | Includes 54 to 56
705400330
Unavailable
55
WEAR RING - Call your local BRP dealership
705500100
Unavailable
56
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
57
O-RING - Call your local BRP dealership
705500271
Unavailable
58
WASHER - Call your local BRP dealership
250200019
Unavailable
59
Hex. Flange Castellated Nut M18
232291413
Unavailable
60
Cotter Pin
250400036
Unavailable
61
Rubber Bellow | 4X4
705400552
Unavailable
62
Tie Wrap 94 mm | 4X4
293750001
Unavailable
63
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
64
Tire 205 X 80 R12
705402890
Unavailable
65
FRONT RIM - Call your local BRP dealership
705400290
Unavailable
66
Rim Valve With Cap
705400193
Unavailable
67
Steel Wheel Nut
250100042
Unavailable
68
Washer
211200041
Unavailable
69
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
70
Oil Seal | 4X4
293250090
Unavailable
71
Wear Ring
705400016
Unavailable
72
Disc Brake 205 mm
705600342
Unavailable
73
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
74
Flat Washer M10 | 4X4
250200014
Unavailable
75
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
76
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
77
Synthetic Grease, 400 G
293550010
Unavailable
78
Loctite 271, 10 ml
293800005
Unavailable
