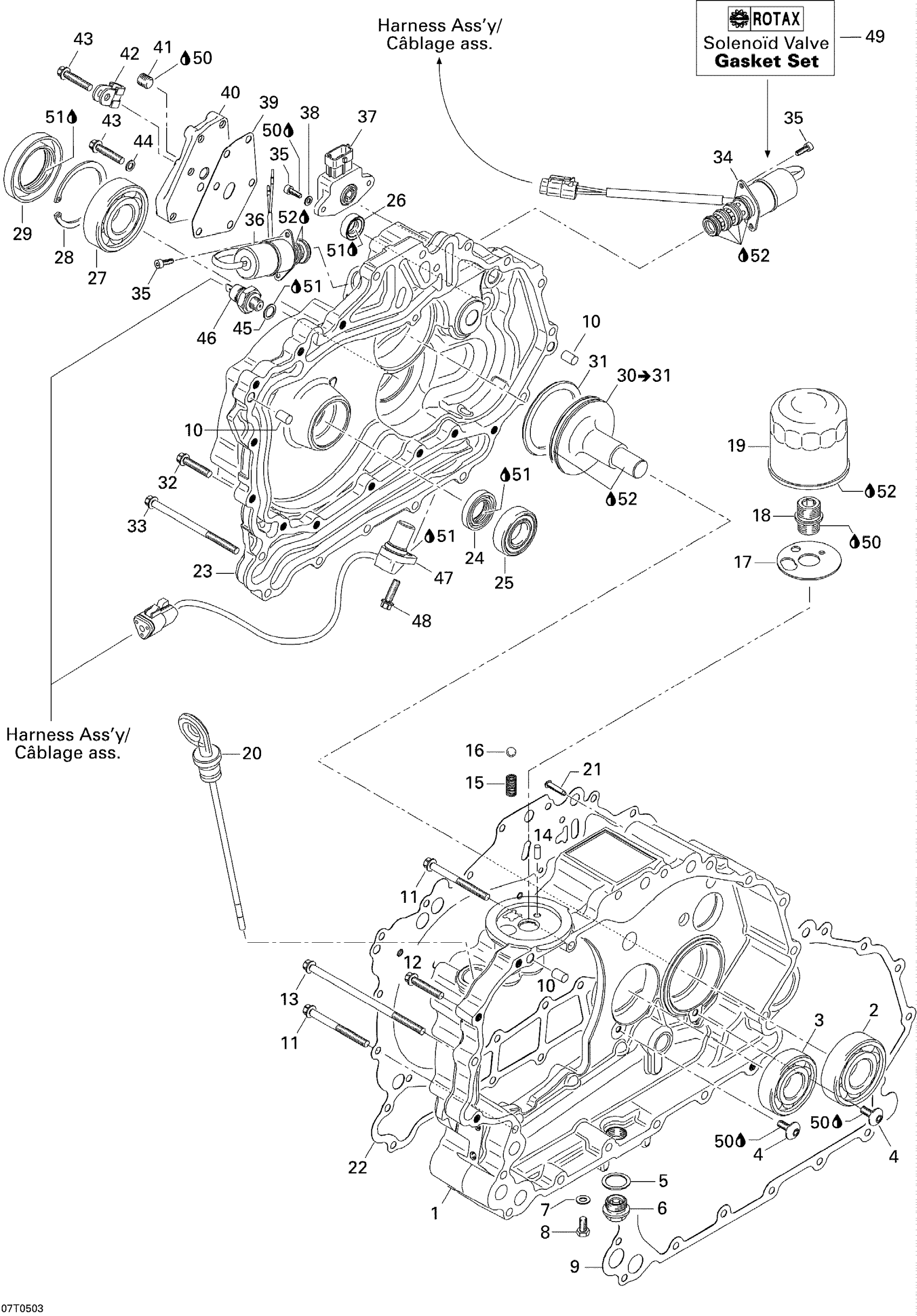

Can-Am Traxter XL, 2005 05- Clutch Housing And Cover Diagram

#

Description
Price

1

Clutch Housing

420211921

Unavailable

2

Ball Bearing

420932822

Unavailable

3

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

4

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

5

Crush Washer

420552280

Unavailable

6

Drain Plug M18 X 1.5

420840278

Unavailable

7

Sealing Washer

404146600

Unavailable

8

Hex. Flange Screw M6 X 16

420241751

Unavailable

9

GASKET, CLUTCH HOUSING - Call your local BRP dealership

420650582

Unavailable

10

Center Pin 8 X 12

420632010

Unavailable

11

Hex. Flange Screw M6 X 70

420940576

Unavailable

12

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

Unavailable

13

Hex. Flange Screw M6 X 130

420640371

Unavailable

14

NEEDLE PIN - Call your local BRP dealership

420232710

Unavailable

15

Spring

420238050

Unavailable

16

BALL - Call your local BRP dealership

420232370

Unavailable

17

OIL FILTER WASHER - Call your local BRP dealership

420627370

Unavailable

18

Oil Filter Nipple

420924420

Unavailable

19

Filtre Huile * Filter Oil

420256623

Unavailable

20

OIL DIPSTICK - Call your local BRP dealership

420256610

Unavailable

21

Groove Pin M4 X 20

420229170

Unavailable

22

GASKET, CLUTCH COVER - Call your local BRP dealership

420650592

Unavailable

23

Clutch Cover

420211811

Unavailable

24

Oil Seal

420930392

Unavailable

25

Ball Bearing 6304

420232190

Unavailable

26

Oil Seal

420250455

Unavailable

27

Ball Bearing

420932822

Unavailable

28

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

29

Oil Seal

420650682

Unavailable

30

DISENGAGING PISTON - Call your local BRP dealership | Includes 30 to 31

420257056

Unavailable

31

K-GROOVED RING - Call your local BRP dealership

420650550

Unavailable

32

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

33

Hex. Flange Screw M6 X 100

420640361

Unavailable

34

Solenoïd Valve

420256550

Unavailable

35

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

36

Pressure Valve

420256560

Unavailable

37

POTENTIOMETER, SUB TRANSMISSION - Call your local BRP dealership

420265600

Unavailable

38

Flat Washer 4

420244072

Unavailable

39

GASKET - Call your local BRP dealership

420650620

Unavailable

40

Oil Duct Cover

420211935

Unavailable

41

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

42

Open Clamp

414176000

Unavailable

43

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

44

Seal Washer

420230415

Unavailable

45

Oil Seal

420230150

Unavailable

46

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

47

Speed Sensor

420265723

Unavailable

48

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

49

SOLENOID VALVE GASKET SET - Call your local BRP dealership

420296375

Unavailable

50

Loctite 243, 10 ml

293800060

Unavailable

51

Grease, Super Lube

293550030

Unavailable

52

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
