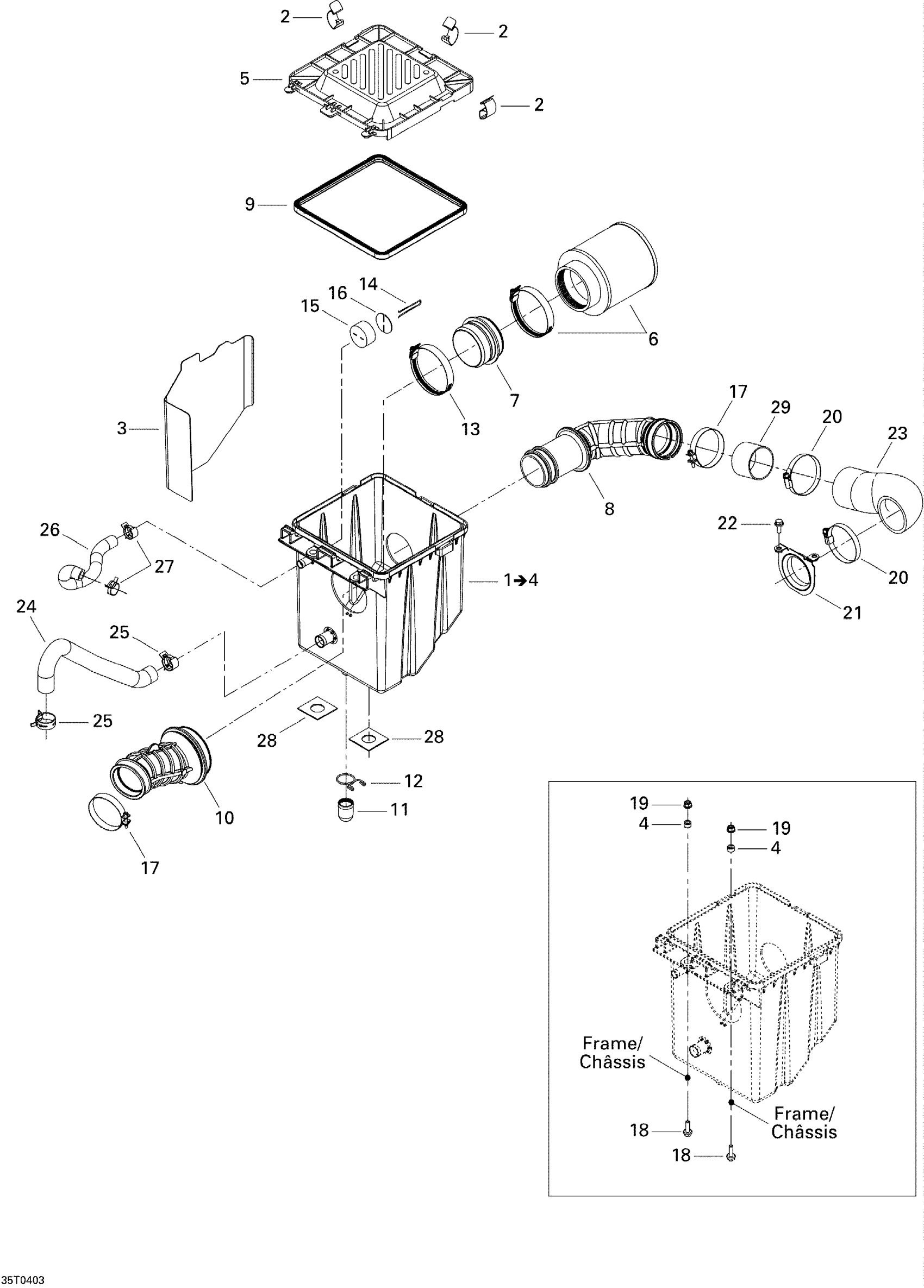

Can-Am Traxter XL, 2005 02- Air Intake Diagram

#

Description
Price

1

SILENCER BASE ASS'Y - Call your local BRP dealership | Includes 1 To 7

707800167

Unavailable

2

Bracket Cover

707800079

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

707800083

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

MUFFLER COVER - Call your local BRP dealership

707800158

Unavailable

6

Air Filter

707800072

Unavailable

7

Adaptor

707800077

Unavailable

8

Intake Adaptor

707800078

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

Unavailable

10

Intake Adaptor

707800157

Unavailable

11

Drain Tube

707800080

Unavailable

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

Unavailable

14

FOAM BRACKET - Call your local BRP dealership

707800087

Unavailable

15

FILTER FOAM - Call your local BRP dealership

707800088

Unavailable

16

Retainer Bracket

707800089

Unavailable

17

Gemi Clamp

293650158

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Norma Clamp

293650079

Unavailable

21

Hose Support

705000810

Unavailable

22

Hex. Flange Screw M6 X 16

207661644

Unavailable

23

Rear Air Intake

707800109

Unavailable

24

Vent Hose

707800164

Unavailable

25

Norma Spring Clamp

293650108

Unavailable

26

Carburator Vent Hose

707800086

Unavailable

27

Norma Clamp

293650110

Unavailable

28

Rubber Bumper

293830091

Unavailable

29

Sleeve

707800129

Unavailable
