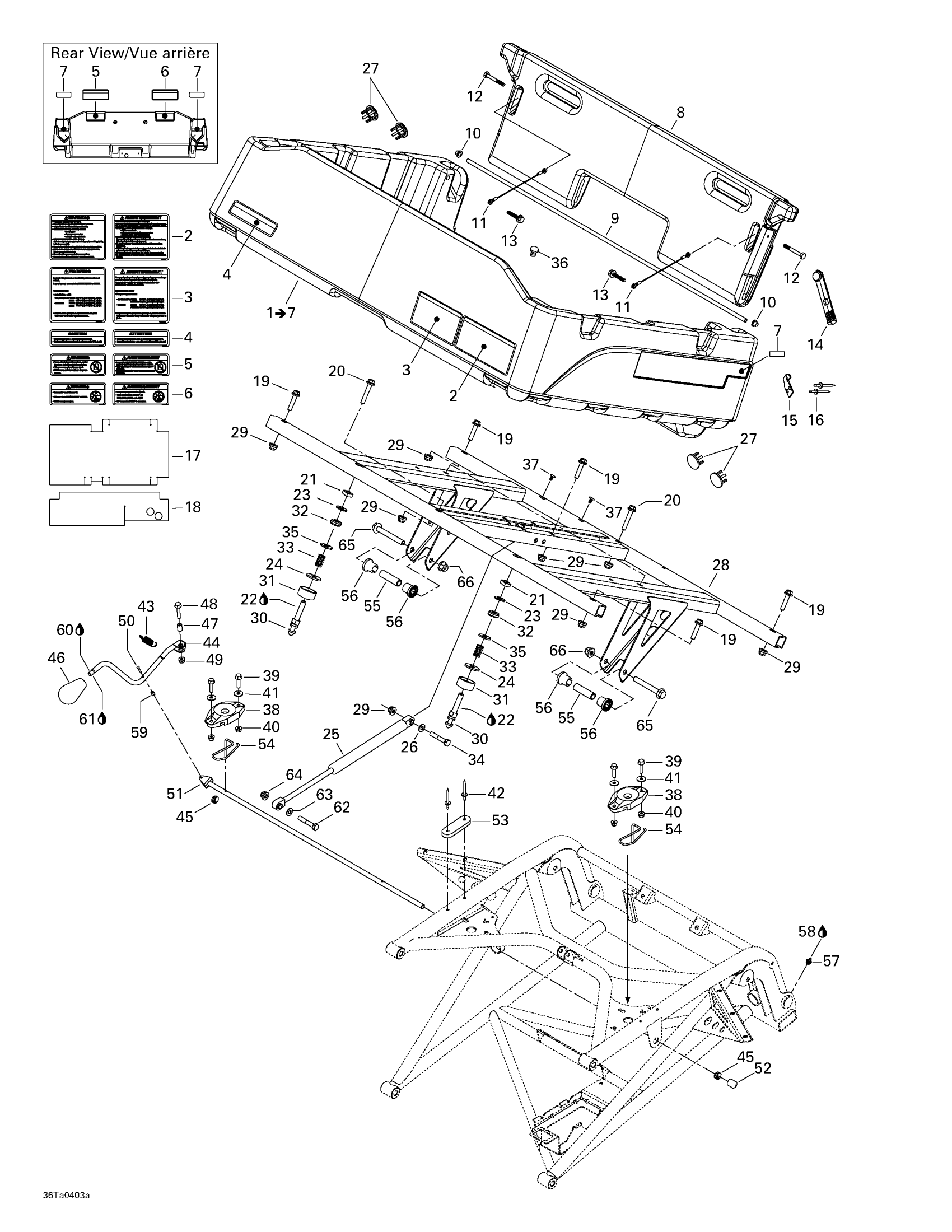

Can-Am Traxter XL, 2004 Rear Cargo Box Diagram

#

Description
Price

1

Box Kit (XL) | Includes 1 - 7.

703500158

Unavailable

2

Warning Label (English)

704900132

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

3

Warning Label (English)

704900373

Unavailable

Warning Label (French) | (Tire Pressure)

704900378

Unavailable

4

Warning Label (English)

704900134

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

5

Warning Label (English)

704900137

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

6

Warning Label (English)

704900138

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

7

REAR REFLECTOR - Call your local BRP dealership

704900128

Unavailable

8

Panel

705000220

Unavailable

9

Pivot Tube, black

705000294

Unavailable

10

Pushnut Cap Type 3/8 | (7489) (7448 From S/N v000709)

250100026

Unavailable

11

PANEL CABLE - Call your local BRP dealership

705000296

$12.28

12

HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership

243164540

$4.28

13

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

14

Panel Bracket

705000297

Unavailable

15

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

16

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

$1.19

17

RH Heat Shield

705000313

Unavailable

LH Heat Shield

705000318

Unavailable

18

RH Heat Shield

705000316

Unavailable

LH Heat Shield

705000319

Unavailable

19

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

20

Hex. Flange Screw M8 X 50

207685044

$1.39

21

Square Nut M10

232802412

Unavailable

22

Loctite 271, 10 ml

293800005

$20.77

23

Washer

503175800

$3.26

24

WASHER - Call your local BRP dealership

506148100

$1.91

25

Gas Shock

705000261

Unavailable

26

Flat Washer 8 mm

234081410

$0.69

27

PROTECTOR CAP - Call your local BRP dealership

293000096

$4.58

28

Box Support

705000604

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.14

30

Stud Latch

291000664

Unavailable

31

Rubber Pad

293830025

Unavailable

32

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

33

Spring

705000307

Unavailable

34

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

$1.78

35

Flat Washer M10 | 4X4

250200014

$1.17

36

Cap

705000323

Unavailable

37

Mount Dart

293730040

$0.86

38

Latch Base

708000034

Unavailable

39

Hex. Flange Screw M6 X 25

207662544

$0.53

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

41

Flat Washer M6, Stainless

234062600

$0.64

42

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

43

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

$9.20

44

Lever, black

705000253

Unavailable

45

SLEEVE - Call your local BRP dealership

705000292

$5.35

46

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

47

Sleeve

293900078

$12.68

48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

50

ROUND HEAD RIVET - Call your local BRP dealership

293150084

$0.54

51

CENTRAL TUBE, BLACK - Call your local BRP dealership

705000289

Unavailable

52

CAP - Call your local BRP dealership

705000300

$5.35

53

Rubber Support

705000299

Unavailable

54

SPRING - Call your local BRP dealership

705000259

$28.49

55

Internal Bushing

706200061

Unavailable

56

Cushion

706200063

Unavailable

57

Grease Fitting

408200700

$2.80

58

Synthetic Grease, 400 G

293550010

Unavailable

59

RING HOLDER - Call your local BRP dealership

705000305

$5.35

60

Was 293800041 Loctite Primer 7649

219704458

$41.99

61

Loctite 243, 10 ml

293800060

$20.77

62

Hex. Screw M8 X 45

207084544

$1.25

63

Flat Washer 8 mm

234081410

$0.69

64

Hex. Flange Elastic Nut M8

233281414

$1.14

65

Hex. Flange Screw M10 X 70

207607046

$2.91

66

Hex. Flange Nut M10

233001414

Unavailable
