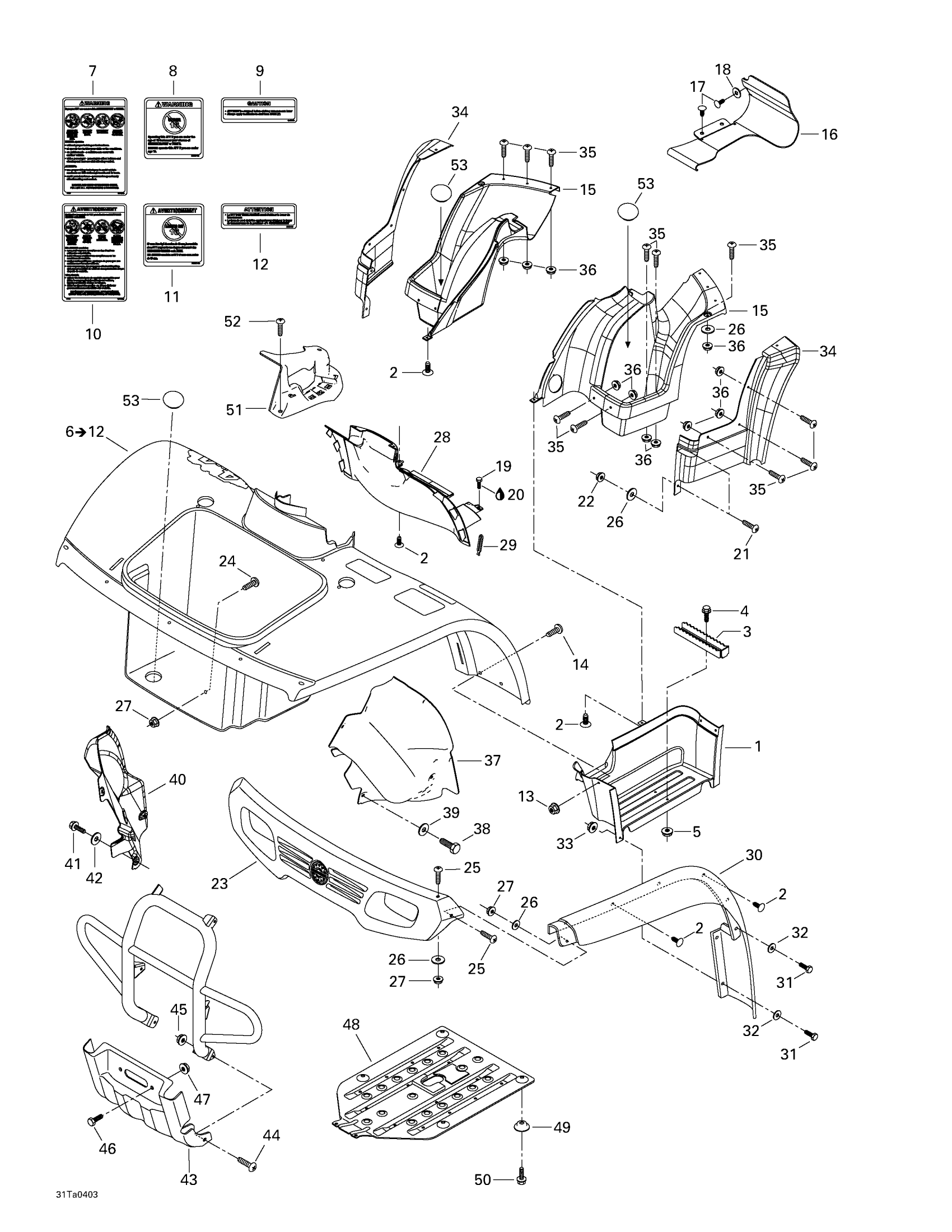

Can-Am Traxter XL, 2004 Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Slate Gray

705000822

Unavailable

LH Footboard, Slate Gray

705000823

Unavailable

2

Black, Dart

293730011

$0.79

3

Footrest, Black

705001083

Unavailable

4

Hex. Flange Screw M6 X 25

207662554

$1.48

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Front Fender, Green | Includes 1 - 8. (Laurentian green)

703500315

$249.97

7

Warning Decal, Death And Injuries | English version

704900001

Unavailable

8

Warning Decal, Under 16 Years Old

704900011

Unavailable

9

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

10

Warning Decal, Death And Injuries

704900002

Unavailable

11

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

12

Caution Decal, Transmission Selector | French version

704900008

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

15

RH Rear Fender

705000842

Unavailable

LH Rear Fender

705000843

Unavailable

16

Air Shield

705000413

Unavailable

17

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

18

Washer | DS 650 X

391301600

$0.48

19

Hex. Flange Screw M6 X 12

207661244

$1.70

20

Loctite 243, 10 ml

293800060

$20.77

21

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Front Fascia, Slate Gray

705000708

Unavailable

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

25

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

26

Flat Washer

224060201

$1.15

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Tank Cover, Slate Gray

705000710

Unavailable

29

Windshield Latch

570023800

$3.58

30

LH Front Mudguard

705000827

Unavailable

RH Front Mudguard

705000828

Unavailable

31

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

32

Flat Washer

224060201

$1.15

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

LH Rear Mudguard

705000845

Unavailable

RH Rear Mudguard

705000846

Unavailable

35

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

LH TANK PROTECTOR - Call your local BRP dealership

705000133

$21.51

38

Hex. Flange Screw M6 X 16

210261650

$1.22

39

Flat Washer

224061201

$1.11

40

RH TANK PROTECTOR - Call your local BRP dealership

705000134

$21.51

41

Hex. Flange Screw M6 X 16

210261650

$1.22

42

Flat Washer

224060201

$1.15

43

PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership

705000713

$20.74

44

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

46

Hex. Flange Screw M10 X 25

207602544

$1.33

47

Hex. Flange Elastic Nut M10

233201414

$1.26

48

Skid Plate

705200535

Unavailable

49

CUP - Call your local BRP dealership

705200533

$5.35

50

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

51

Lever Indicator

705000081

Unavailable

52

Tuflock Phillips Plastic Screw

414745900

$1.30

53

Rubber Cover

570041600

Unavailable
