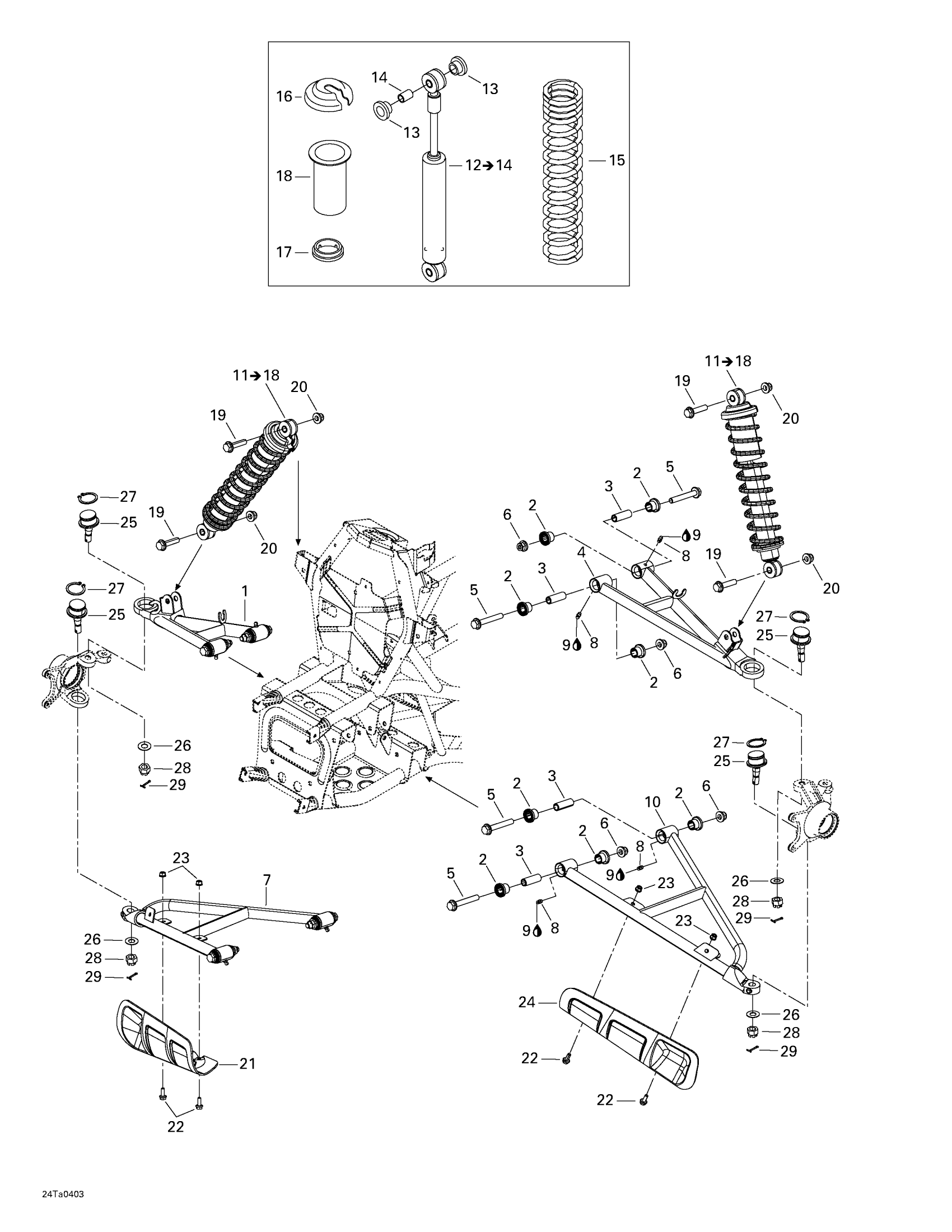

Can-Am Traxter XL, 2004 Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

$3.68

3

Sleeve

706201587

$4.60

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.91

6

Hex. Flange Elastic Nut M10

233201436

$1.74

7

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

$148.43

8

Grease Fitting

408200700

$2.80

9

Synthetic Grease, 400 G

293550010

Unavailable

10

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

$148.43

11

Not Available As Spare Part - Friction Washer

Unavailable

12

FRONT SHOCK - Call your local BRP dealership | Includes 12 - 14.

706200300

Unavailable

13

CUSHION - Call your local BRP dealership

706200185

Unavailable

14

BUSHING - Call your local BRP dealership

706200186

Unavailable

15

Yellow Front Spring

706200301

Unavailable

16

Spring Stopper

706200881

$10.30

17

Spring Seat

706000197

Unavailable

18

PROTECTOR - Call your local BRP dealership

503139800

$6.22

19

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

$1.26

21

RH ARM PROTECTOR - Call your local BRP dealership

706200179

$8.43

22

Hex. Flange Screw M6 X 16

207661644

$0.61

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

LH ARM PROTECTOR - Call your local BRP dealership

706200180

$8.43

25

Ball Joint

706200653

$41.51

26

Hardened Washer

706200281

$2.34

27

Circlip 32 mm

293370009

$1.49

28

Hex. Castellated Nut M12

232221414

$2.61

29

Cotter Pin

211400017

$0.25
