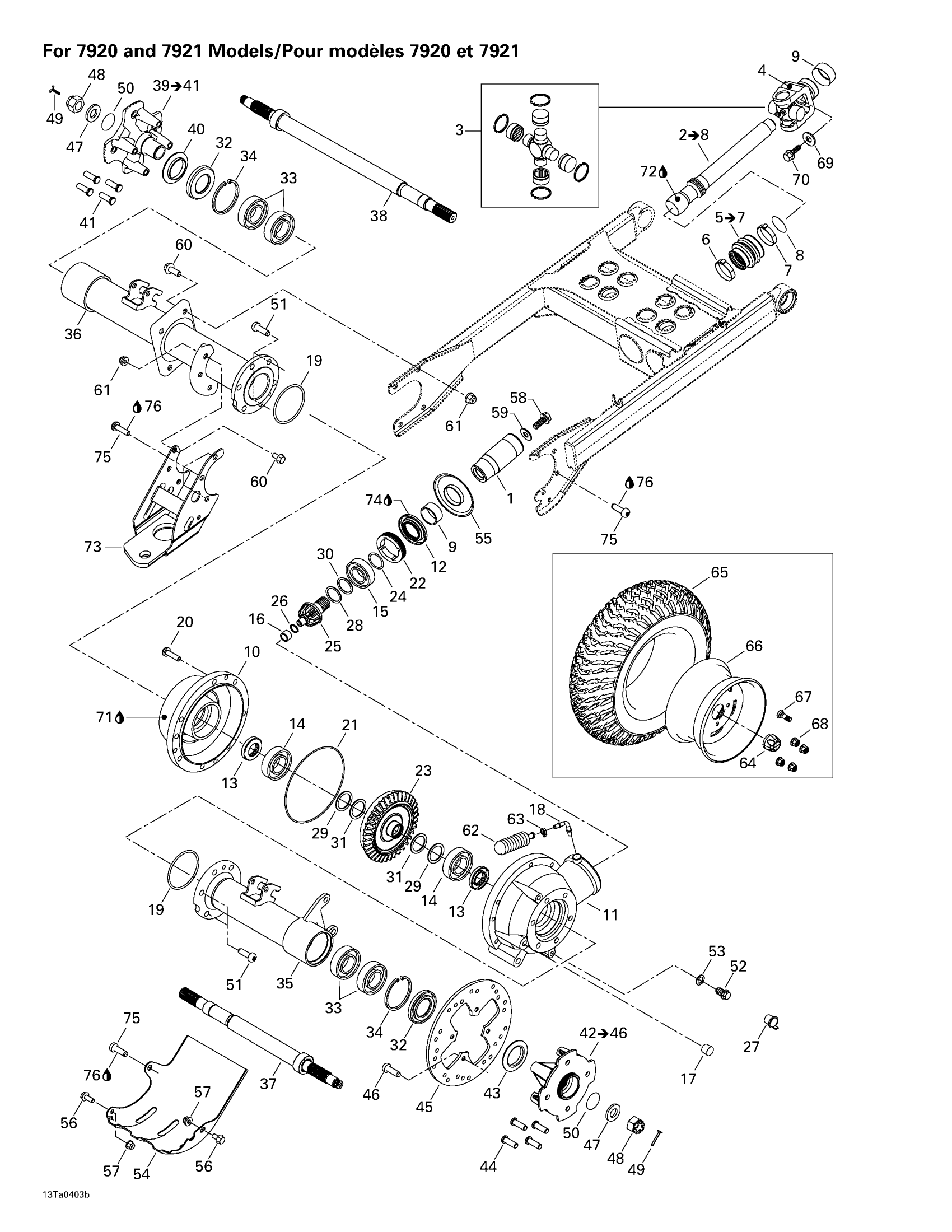

Can-Am Traxter XL, 2004 Drive System, Rear (for 7920 And 7921 Models) Diagram

#

Description
Price

1

Front Bushing Shaft Kit | 4X4

703500678

$104.58

2

Rear Drive Axle Ass'y | Includes 2 to 8

705500393

Unavailable

3

RH panel | (camo)

703500304

Unavailable

4

Fixe Yoke

715900101

$27.66

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

7

Collar | 4X4

705400148

Unavailable

8

SEALING RING - Call your local BRP dealership

705500315

$5.35

9

Wear Ring | 4X4

705400036

$25.35

10

Rear Cover

705500175

Unavailable

11

PINION REAR COVER - Call your local BRP dealership

705500512

$230.74

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$17.66

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing | 4X4

705500260

$30.74

16

Needle Bearing | 4X4

705500261

Unavailable

17

Drain Plug | 4X4

705500894

$11.06

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

19

O-RING - Call your local BRP dealership

705500263

$15.35

20

Screw | 4X4

705401601

$9.29

21

Seal | 4X4

705500265

$16.12

22

Nut | 4X4

705401603

$36.89

23

Crown Gear

705500223

$295.35

24

O-Ring | 4X4

705500267

$6.25

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$16.12

29

Shim | 4X4

705401604

$55.35

30

Pinion Gear Shim .022"

705500075

Unavailable

31

Shim | 4X4

705401604

$55.35

32

OIL SEAL - Call your local BRP dealership

705500099

$13.82

33

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

34

RETAINING RING - Call your local BRP dealership

705500249

$11.51

35

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

36

LH AXLE TUBE - Call your local BRP dealership

705500182

$366.12

37

RH AXLE - Call your local BRP dealership

705500183

$283.05

38

LH AXLE - Call your local BRP dealership

705500184

$283.05

39

Wheel Hub Ass'y | Includes 50 - 52.

705500254

$188.43

40

WEAR RING - Call your local BRP dealership

705500100

Unavailable

41

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

42

Rear Wheel Hub | INCLUDES ITEMS 42 TO 46

705500449

Unavailable

43

WEAR RING - Call your local BRP dealership

705500100

Unavailable

44

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

45

Brake Disc

705600343

Unavailable

46

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

47

WASHER - Call your local BRP dealership

250200019

$2.02

48

Hex. Flange Castellated Nut M18

232291413

$2.82

49

Cotter Pin

250400036

$1.74

50

O-RING - Call your local BRP dealership

705500271

Unavailable

51

Torx Screw M10 X 30

250000085

Unavailable

52

Fill Level Plug | 4X4

705500504

$7.61

53

Copper Washer | 4X4

705500506

$0.36

54

Differential Protector, Black

705500185

Unavailable

55

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

56

Hex. Flange Screw M8 X 16

207681644

$4.02

57

Hex. Flange Nut M8

233181414

$0.91

58

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

59

Flat Washer M10 | 4X4

250200014

$1.17

60

Hex. Flange Screw M10 X 25

207602544

$1.33

61

Hex. Flange Elastic Nut M10

233201414

$1.26

62

Rubber Bellow | 4X4

705400552

$6.02

63

Tie Wrap 94 mm | 4X4

293750001

$0.83

64

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

65

Rear Tire

705500230

Unavailable

66

Rear Rim, Grey

705500239

Unavailable

67

Rim Valve With Cap

705400193

$6.69

68

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

69

Washer

211200041

$2.63

70

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

71

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

72

Graisse *Grease

293550062

$15.35

73

Trailer Hook, Black

705500244

Unavailable

74

Synthetic Grease, 400 G

293550010

Unavailable

75

Torx Screw M10 X 30

250000085

Unavailable

76

Loctite 609, 10 ml

413703100

$24.58
