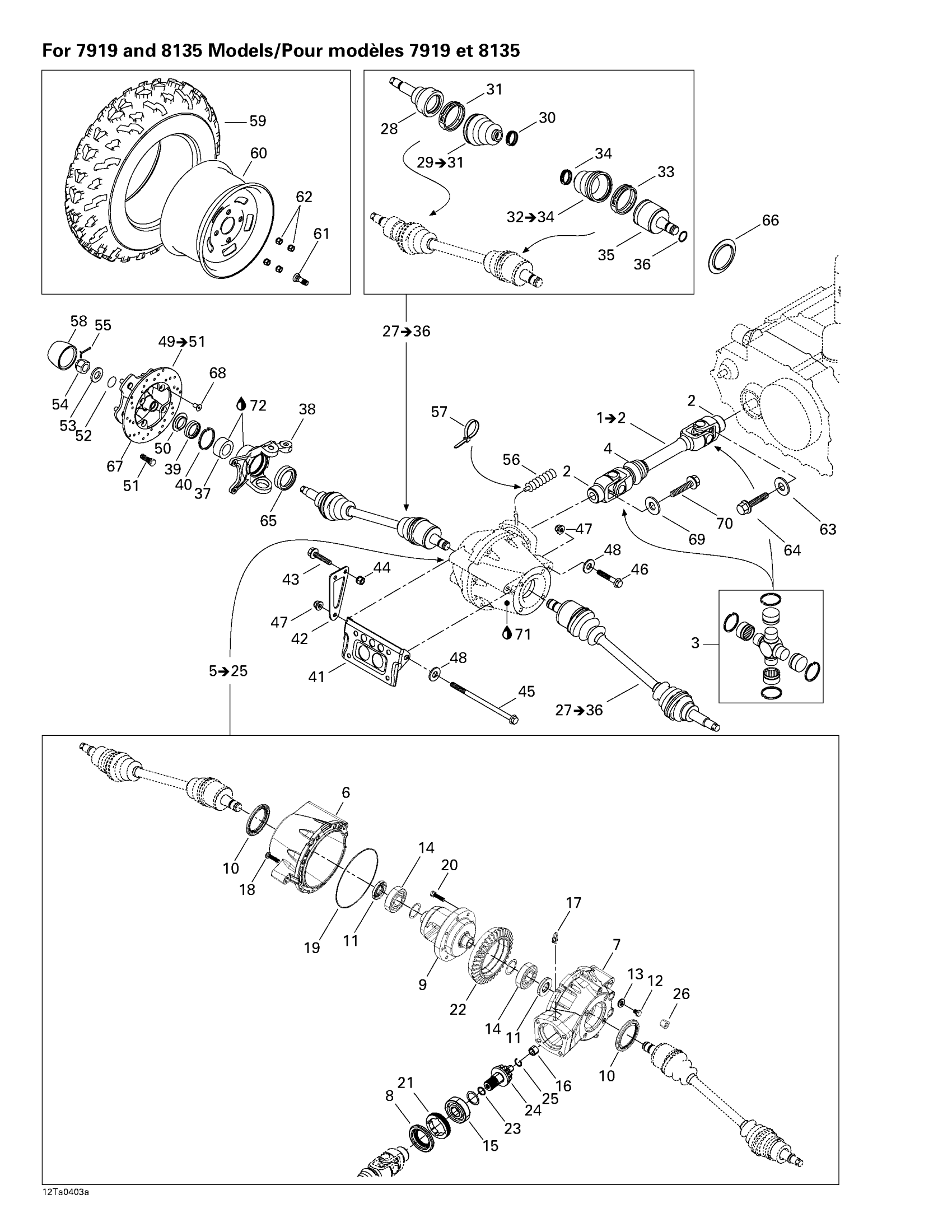

Can-Am Traxter XL, 2004 Drive System, Front (for 7919 And 8135 Models) Diagram

#

Description
Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

5

Front Differential Ass'y | Includes 5 - 5.

705400003

Unavailable

6

Differential Cap

705400025

Unavailable

7

Differential Carrier

705400026

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug

705500298

Unavailable

13

SEAL RING - Call your local BRP dealership

705500299

Unavailable

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing

705500074

Unavailable

16

Needle Bearing

705500077

Unavailable

17

Vent Valve

705500124

Unavailable

18

SCREW - Call your local BRP dealership

705500088

$8.43

19

Seal

705500091

Unavailable

20

RING GEAR SCREW - Call your local BRP dealership

705500090

$8.43

21

Nut | 4X4

705401603

$36.89

22

Crown Gear

705400103

$249.20

23

O-Ring

705500073

Unavailable

24

GEAR (10 TEETH) - Call your local BRP dealership

705500076

$212.28

25

Retaining Ring

705500102

Unavailable

26

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

705500143

Unavailable

27

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

$493.82

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

28

CV JOINT - Call your local BRP dealership

705400093

$193.82

29

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

30

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

31

Clamp | 4X4

705400180

Unavailable

32

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

33

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

34

Clamp | 4X4

705400181

Unavailable

35

RH Plunging Joint

705400128

Unavailable

LH Plunging Joint

705400129

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

Ball Bearing

293350150

$52.99

38

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

39

OIL SEAL - Call your local BRP dealership

705500099

$13.82

40

Circlip

293370019

$4.98

41

Bracket (Differential)

705400068

Unavailable

42

RH Diffential Front Bracket

705400069

Unavailable

43

Hex. Flange Screw M8 X 20

207682044

$0.92

44

Hex. Flange Elastic Nut M8

233281414

$1.14

45

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

46

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

47

Hex. Flange Nut M10

233101414

$4.10

48

Flat Washer

250200003

Unavailable

49

Front Wheel Hub | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705400090

$188.43

50

WEAR RING - Call your local BRP dealership

705500100

Unavailable

51

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

52

O-RING - Call your local BRP dealership

705500271

Unavailable

53

WASHER - Call your local BRP dealership

250200019

$2.02

54

Hex. Flange Castellated Nut M18

232291413

$2.82

55

Cotter Pin

250400036

$1.74

56

Rubber Bellow | 4X4

705400552

$6.02

57

Tie Wrap 94 mm | 4X4

293750001

$0.83

58

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

59

Tire 205 X 80 R12

705402890

$133.82

60

Front Rim

705400010

Unavailable

61

Rim Valve With Cap

705400193

$6.69

62

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

63

Washer

211200041

$2.63

64

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

65

Oil Seal | 4X4

293250090

$23.05

66

Wear Ring

705400016

Unavailable

67

Brake Disk 205 mm | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705600171

Unavailable

68

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

69

Flat Washer M10 | 4X4

250200014

$1.17

70

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

71

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

72

Synthetic Grease, 400 G

293550010

Unavailable
