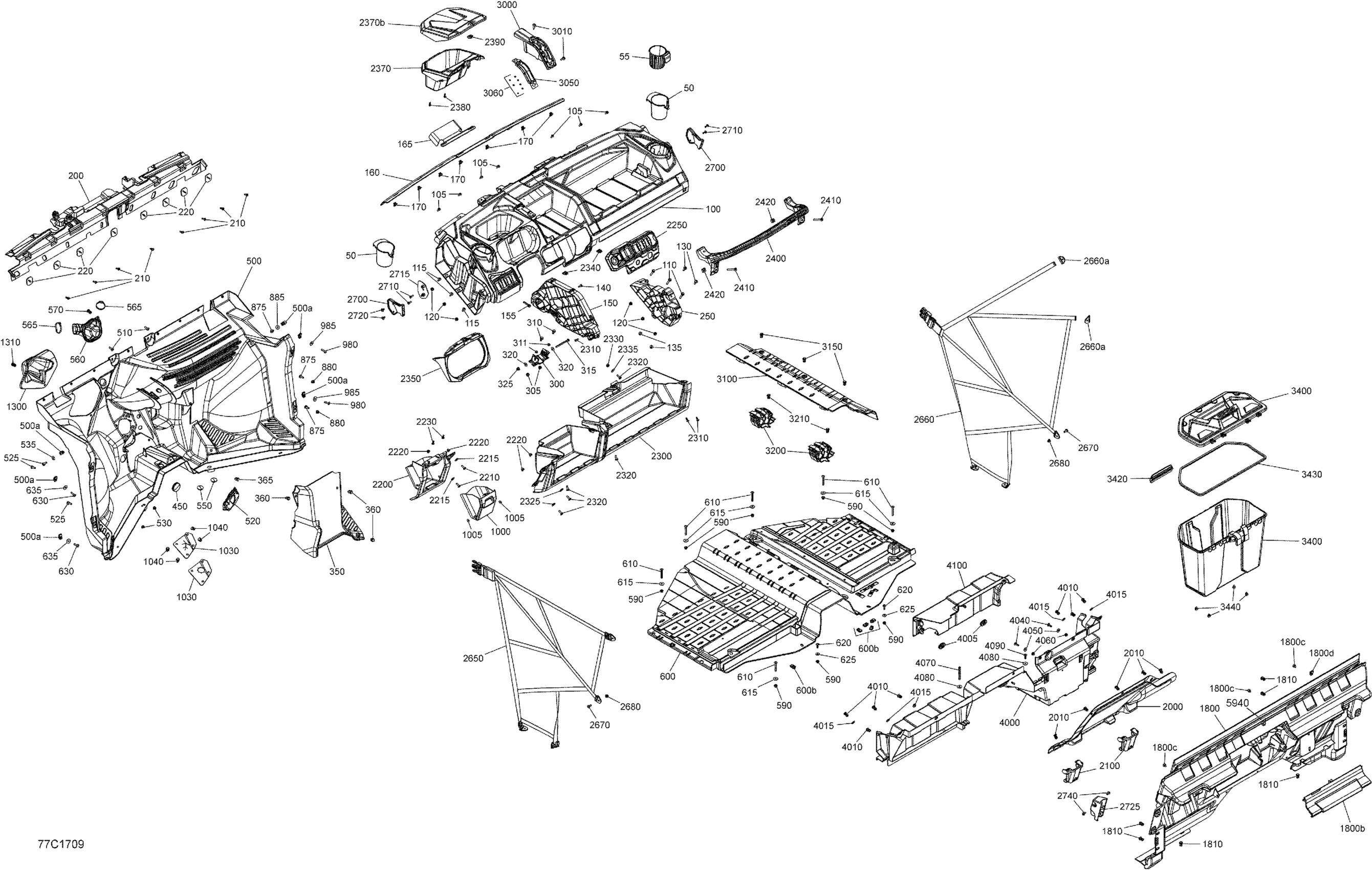

Can-Am Traxter T, 2017 Cab Interior - All Models Diagram

Cup Holder

707900288

$13.85

Rubber Cap

707900580

$16.12

DASHBOARD UPPER ASSEMBLY - Call your local BRP dealership

715004244

Unavailable

Torx Screw K50 X 16

250000720

$1.39

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

Torx Truss Screw M6 X 16

250000721

$1.39

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Torx Screw K50 X 16

250000720

$1.39

Dash Support

707900249

$64.58

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

Dash Trim

707900411

$15.22

Fuse Box Holder

707900439

$10.98

Edge Clip

517302785

$0.70

Upper Front Deflector

707900296

$50.74

Torx Screw K50 X 16

250000720

$1.39

Support Plate

705003841

$0.91

RH Support

707900367

$35.35

Plier

707900940

$5.98

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Flat Washer 6 mm

234061410

$1.04

Hex. Screw M6 X 80

207068044

$3.39

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Front Bulkhead Cover

707900289

$46.12

Tuflok Plastic Rivet

293150230

$1.21

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.38

Front Bulkhead

707900430

$272.28

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

DPS Cover

707900408

$16.89

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Bumber Cap | Except Cab Package

291002744

$10.21

RH Rubber Cover

707900390

$16.89

Tie Wrap 368 mm

293750008

$0.85

Tuflok Plastic Rivet

293150230

$1.21

Threaded Insert M6 X 1.0

250100242

Unavailable

Floor Ass'y | Includes 600 to 600b

707900431

$216.89

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss M6 X 50

250000868

$1.74

Flat Washer M6.6 X 22

250200162

$1.91

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Torx Truss Screw M6 X 25

250000807

$1.74

Flat Washer M6.6 X 22

250200162

$1.91

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Torx Truss Screw M6 X 25

250000807

$1.74

Flat Washer M6.6 X 22

250200162

$1.91

Drawer

707900252

$18.43

O-Ring

293300194

$1.15

Steering Column Deflector

707900318

$17.66

STEERING COLUMN DEFLECTOR - Call your local BRP dealership | Except STD, Except Base

707900597

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Exterior Cover

707900389

$11.54

Tuflok Plastic Rivet

293150230

$1.21

Rear Upper Deflector Ass'y

707900635

$216.89

UPPER COVER - Call your local BRP dealership

707900357

Unavailable

Rubber Bumper

293830005

$5.33

Panel Nut M6 X 1.0

250100198

$1.73

Tuflok Plastic Rivet

293150230

$1.21

Engine Service Cover

707900326

$36.89

Tuflok Plastic Rivet

293150230

$1.21

Support belt cover

707900419

$10.00

LH Lower Dash | Except Base Package

707900251

Unavailable

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw K50 X 16

250000720

$1.39

Switch Support

703501098

$15.22

RH Lower Dash | Except Base, Cab Package

707900250

$109.97

Torx Screw K50 X 16

250000720

$1.39

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Cluster Support | Package XT, Cab

707900358

$17.66

Storage Box Ass'y | Includes 2370 to 2370b

707900764

$69.20

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Grommet

705003264

$3.43

Passenger Handhold

707900248

$50.74

Torx Screw M6 X 60

250000648

$6.15

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

LH Front Protection Net

707900671

$207.66

RH Front Protection Net | Includes 2660 to 2660a

707900673

$175.35

Upper Link

707900049

$41.51

Torx Truss Screw M6 X 16

250000721

$1.39

Threaded Insert M6 X 1.0

250100242

Unavailable

Safety Net Link

707900592

$4.98

Torx Screw K50 X 16

250000720

$1.39

Support

707900610

$11.54

Torx Truss Screw M6 X 12

250000767

$1.66

Net Anchor

707900609

$20.74

Torx Truss M6X14

250000789

$4.41

Shifter Gate

707900608

$8.98

Torx Screw M6 X 25 | XT Models

250000728

$3.61

Shifter Gate Deflector

707900506

$5.52

Push Nut

250100178

$0.58

Floor Panel

707900806

$41.51

Tuflok Plastic Rivet

293150230

$1.21

Hose Support

707900325

$11.54

Tuflok Plastic Rivet

293150230

$1.21

Storage Box

715003314

$109.24

Clip | Outlander Max

269501945

$15.19

Neoprene Seal

293250453

$14.92

Rubber Bumper

293830005

$5.33

Rear Lower Bulkhead

707900228

$92.28

Oval Washer

705005156

$4.85

Tuflok Plastic Rivet

293150230

$1.21

Washer

503192494

$3.11

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 70

250000954

$1.56

Flat Washer M6.6 X 22

250200162

$1.91

Torx Screw M6 X 20

250000722

$1.34

Battery Cover

707900282

$32.28

Tuflok Plastic Rivet

293150230

$1.21
