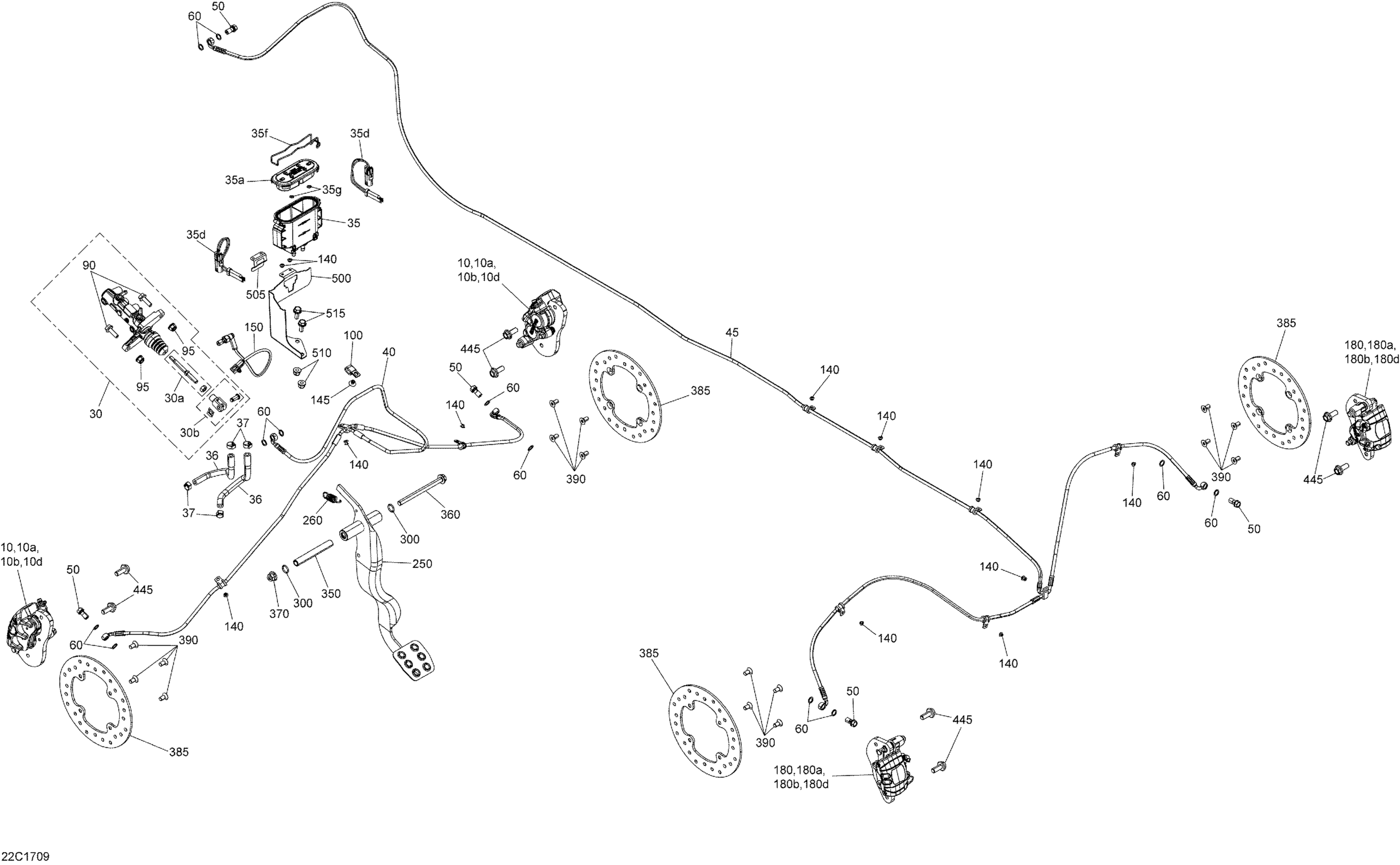

Can-Am Traxter T, 2017 Brakes - All Models Diagram

#

Description
Price

10>10d

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10>10d

RH Front Brake Caliper | RH Front

705601888

$230.74

10a>10a1

LH Brake Pads

715900379

$111.51

10a>10a1

RH Brake Pads

715900380

$110.67

10a1

Pin Kit | Packages STD & PRO

715900384

$10.98

10b

Bleeding Screw

705601017

$6.45

10d

Cap Spring Kit

715900385

$17.66

30>30b

Master Cylinder | Includes 30 to 30b

705601803

$359.97

30a

Boot Rod Kit

715900373

$50.74

30b

Fork Kit

715900374

$27.66

35>35g

Brake Fluid Reservoir Ass'y | Includes 35 to 35g

705601596

$110.74

35a

Diaphragm Cover Ass'y

219800350

$17.66

35d

Oil Level Sensor

515176508

$29.97

35f

Spindle Lock

705601294

$14.37

35g

Push Nut | Not shown

211100002

$0.83

36

Hose

705601603

$9.29

37

Crimp Clamp, 15.3-706R

293650047

$2.64

40

Brake Hose

705601623

$143.05

45

Brake Hose

705601595

$156.89

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

90

Hex. Flange Screw M8 X 25

207682534

$0.90

95

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Clamp

293650220

$0.85

140

Pop Rivet 3/16"

390402200

$0.26

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

150

Brake Switch

705601250

$59.97

180>180d

LH Rear Brake Caliper | LH Rear

705601928

$203.05

180>180d

RH Rear Brake Caliper | RH Rear

705601929

$203.05

180a>180a1

LH Brake Pads

715900381

$111.51

180a>180a1

RH Brake Pads

715900382

$110.67

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180b

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

250

Brake Pedal | Includes 250 to 250a

705601777

$55.35

260

Brake Pedal Spring

705600792

$9.22

300

O-Ring

293300144

$3.98

350

Inside Sleeve

705601373

$10.98

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Support

705601567

$13.52

505

Stopper Bracket

705601608

$6.15

510

Hex. Flange Elastic Nut M8

233281414

$1.14

515

Hex. Flange Screw M8 X 20

207682044

$0.92
