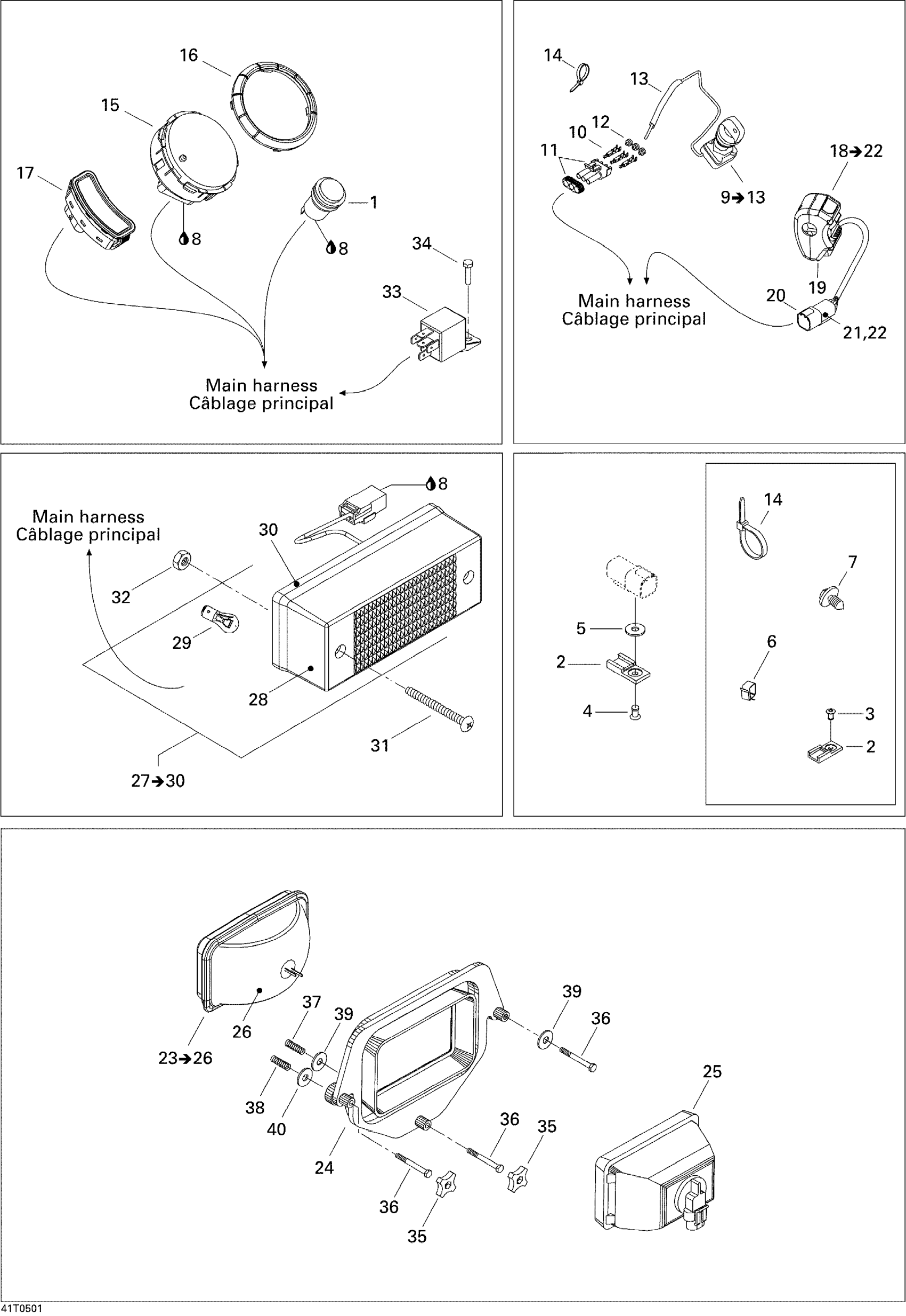

Can-Am Traxter Max Std & Max XT, 2005 Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$35.04

2

Clip

270000141

$9.57

3

Pop Rivet 3/16"

390402400

$0.28

4

Pop Rivet 3/16"

390402300

$0.73

5

Washer | DS 650 X

391301600

$0.46

6

Clip

414227300

$1.40

7

Mount Dart

293730040

$0.99

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

9

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

10

Female Terminal

278000223

$2.93

11

Male Housing, 3 Circuits

278000273

$8.72

12

Wire Seal

278000218

$4.00

13

Protector Tube

710000171

Unavailable

14

Tie Wrap 368 mm

293750008

$0.97

14

Tie Wrap 142 mm

293750002

$1.01

14

Tie-Rap 180 mm

414115200

$0.10

16

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

15

Speedometer

710000674

Unavailable

16

TRIM RING - Call your local BRP dealership

710000353

Unavailable

17

LH WARNING LIGHT - Call your local BRP dealership

710000592

Unavailable

18

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

19

BACK COVER - Call your local BRP dealership

710000173

Unavailable

20

Male Terminal Housing, 6 Circuits

409015200

Unavailable

21

Male Lock, 6 Circuits

409014600

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

23

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

24

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

25

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

26

BULB - Call your local BRP dealership

710000176

Unavailable

27

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$85.79

28

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

29

Bulb

520000758

$8.60

30

GASKET - Call your local BRP dealership

710000129

Unavailable

31

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

$1.91

33

Relay | DS 650 X

710010053

Unavailable

34

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

35

Handle

572106600

$9.03

36

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

37

SPRING - Call your local BRP dealership

710000285

Unavailable

38

Spring

517168600

$6.70

39

Flat Washer 4 mm, Stainless

234042600

$1.06

40

Flat Washer 4 mm

234040600

$0.52
