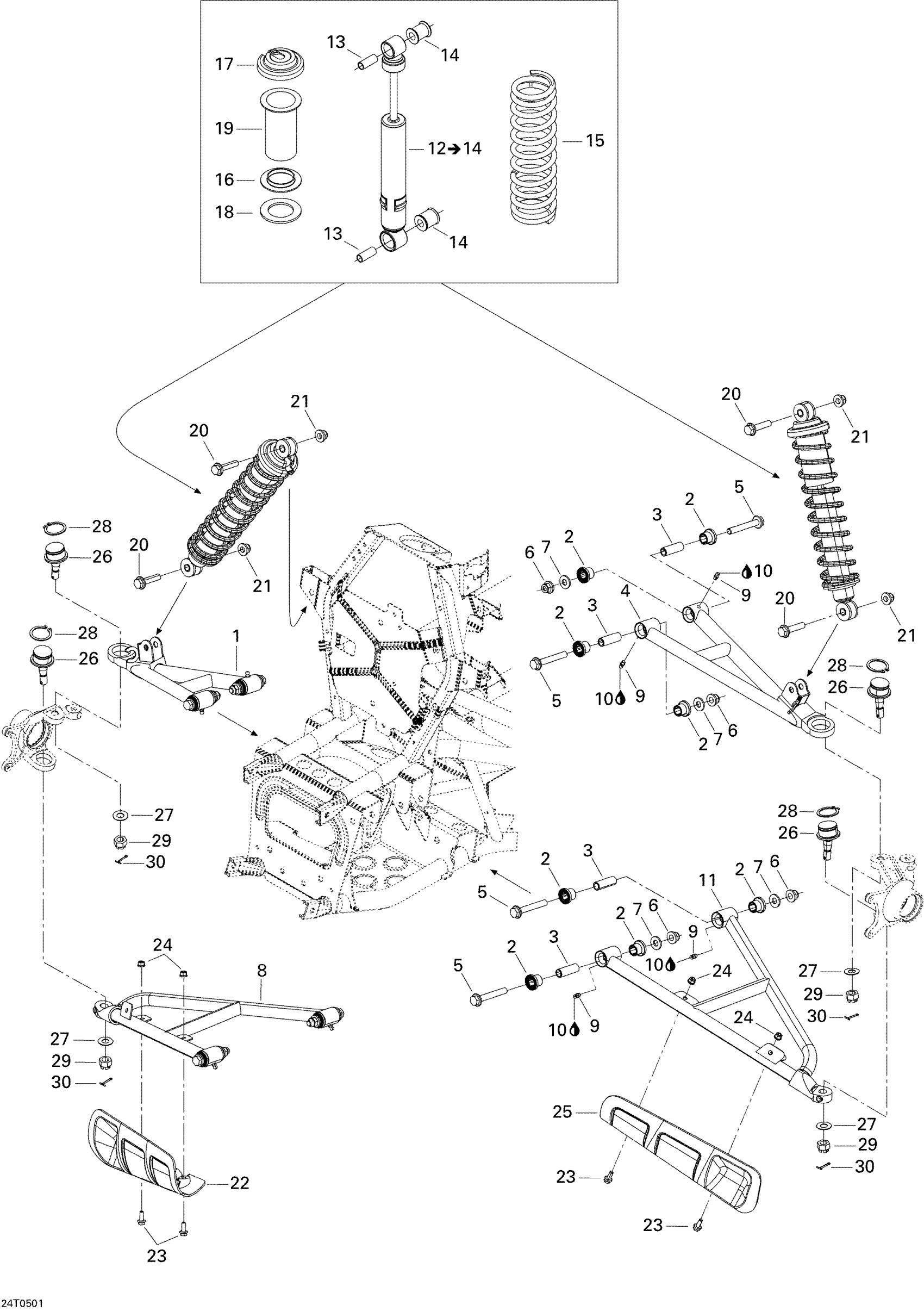

Can-Am Traxter Max Std & Max XT, 2005 Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

$2.45

3

Sleeve

706201587

$3.36

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.82

6

Hex. Flange Elastic Nut M10

233201436

$2.00

7

Conical Spring Washer 10 mm

234201474

$1.60

8

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

Unavailable

9

Grease Fitting

408200700

$3.21

10

Synthetic Grease, 400 G

293550010

Unavailable

11

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

Unavailable

12

FRONT SHOCK - Call your local BRP dealership

706200429

Unavailable

13

Bushing

706200488

Unavailable

14

Cushion

706200489

Unavailable

15

Yellow Front Spring | Traxter 5-Speed STD

706200467

Unavailable

16

SPRING GUIDE - Call your local BRP dealership

706200460

Unavailable

17

Spring Stopper

706200881

$11.82

18

WASHER - Call your local BRP dealership

706000375

Unavailable

19

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

20

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.45

22

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

23

Hex. Flange Screw M6 X 16

207661644

$0.70

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

25

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

26

Ball Joint

706200653

$40.27

27

Hardened Washer

706200281

$2.69

28

Circlip 32 mm

293370009

$1.33

29

Hex. Castellated Nut M12

232221414

$3.00

30

Cotter Pin

211400017

$0.28
