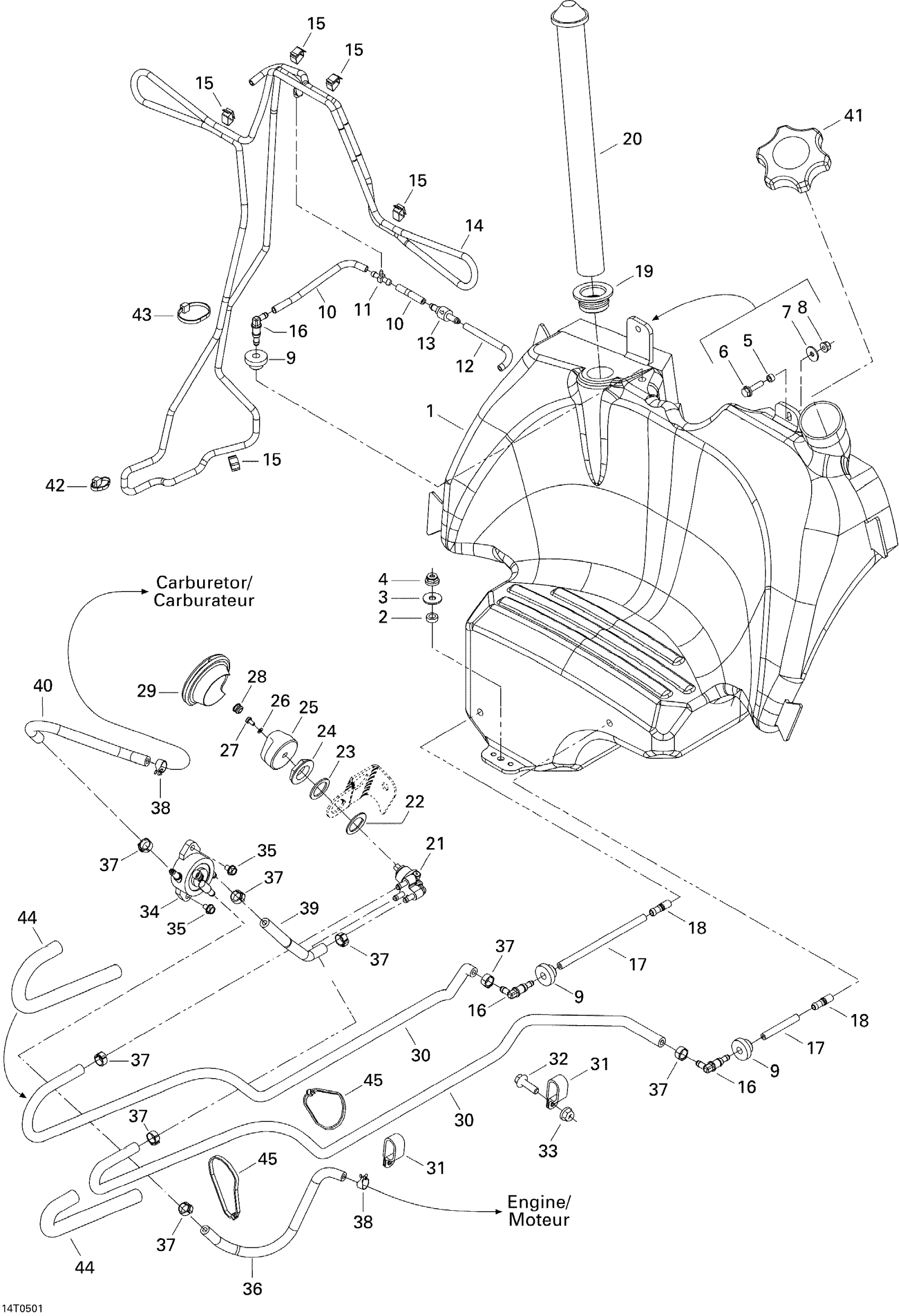

Can-Am Traxter Max Std & Max XT, 2005 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000025

Unavailable

2

Bushing

293900028

$11.81

3

Flat Washer 8 mm

234082410

$1.27

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Bushing | DS 650 X

293900104

$5.10

6

Hex. Flange Screw M6 X 25

207662544

$0.61

7

Flat Washer

224061201

$1.27

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Grommet

570045500

$6.13

10

Polyurethane Hose 10000Mm Long

219704410

$52.96

11

T-fitting

414222500

$1.52

12

VENT HOSE - Call your local BRP dealership

709000029

Unavailable

13

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

14

VENT HOSE - Call your local BRP dealership

709000031

Unavailable

15

Clip

414227300

$1.40

16

Elbow Male Connector

414580600

$4.01

17

Polyurethane Hose 10000Mm Long

219704410

$52.96

18

Fuel Filter

414865700

$9.63

19

Grommet

293720058

$10.67

20

FUEL GAUGE - Call your local BRP dealership

709000078

Unavailable

21

Fuel Valve

275500098

$39.52

22

GASKET - Call your local BRP dealership

293250004

Unavailable

23

Washer

250200015

Unavailable

24

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

25

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

26

Flat Washer 4 mm

234040600

$0.52

27

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

28

Black, Cap

275500241

$3.16

29

Fuel Valve Grommet

709000005

Unavailable

30

Hose

219704549

$46.24

31

Open Clamp

709000057

$4.78

32

Hex. Flange Screw M8 X 20

207682044

$1.06

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Gas Pump

709000103

Unavailable

35

Hex. Flange Screw M6 X 16

210261650

$1.40

36

HOSE - Call your local BRP dealership

709000024

Unavailable

37

Oetiker Clamp

293650042

$2.82

38

Spring Clamp

414415200

$0.81

39

Hose

219704549

$46.24

40

GAS HOSE - Call your local BRP dealership

709000104

Unavailable

41

Fuel Tank Cap

513033025

$22.36

42

Tie Wrap 142 mm

293750002

$1.01

43

Tie-Rap 180 mm

414115200

$0.10

44

Was 409901800 Tubing (13 mm)

219704400

$10.79

45

Tie Wrap 368 mm

293750008

$0.97
