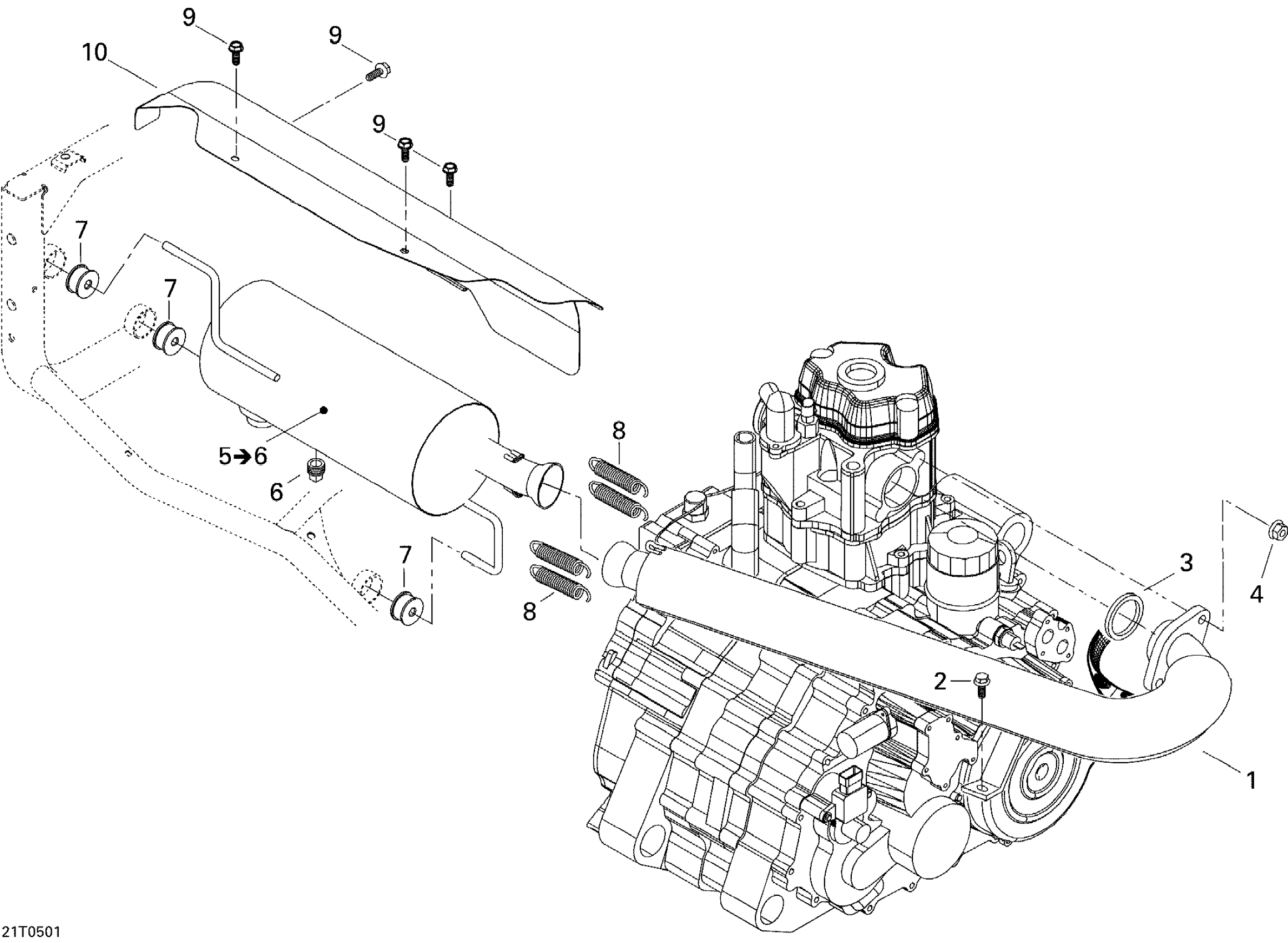

Can-Am Traxter Max Std & Max XT, 2005 Exhaust System Diagram

#

Description

Price

1

Tuned Pipe

707600062

Unavailable

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

3

GASKET - Call your local BRP dealership

707600003

Unavailable

4

Hex. Flange Nut M8

233081416

$1.63

5

Muffler | Includes 5 To 6

707600080

Unavailable

5

Muffler | Includes 5 To 6, Europe Model 1A5E Only

707600319

Unavailable

6

Drain Plug

250500003

Unavailable

7

Anti-Vibration Rubber

707600702

$8.34

8

Spring

415107100

$6.20

9

Hex. Forming Screw M6 X 10

210261050

$1.42

10

Heat Shield

707600076

Unavailable
