- Traxter Max Std & Max XT, 2004
10- Homologation Kit For Europe (7957, 7959)

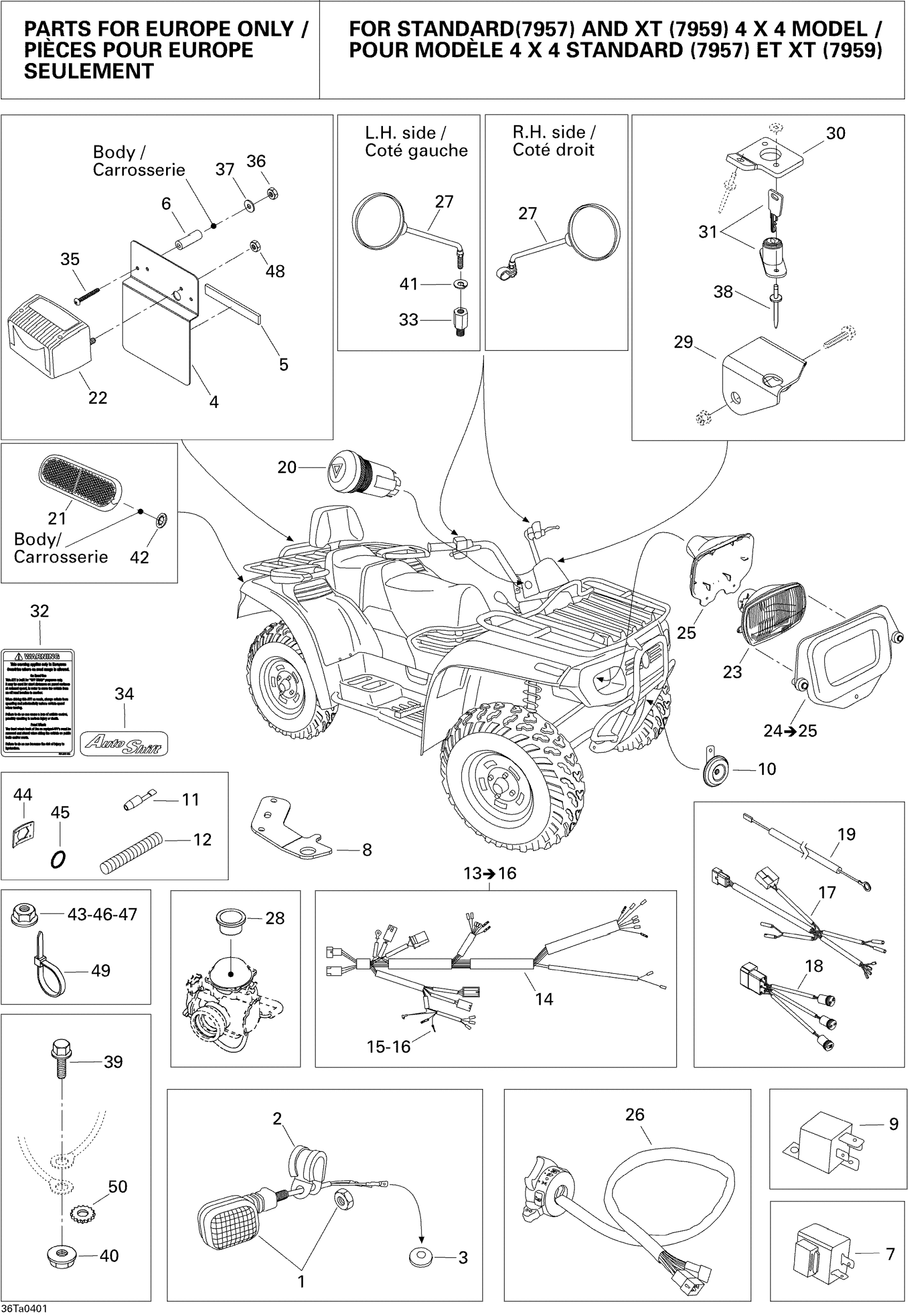

Can-Am Traxter Max Std & Max XT, 2004 10- Homologation Kit For Europe (7957, 7959) Diagram
#
1
Flasher | Europe Models, Includes 60 To 61
710000546
Unavailable
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
2
Collar
710000362
Unavailable
3
Grommet
414036300
Unavailable
4
Tail light support
705000658
Unavailable
5
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
6
Spacer
705000659
Unavailable
7
FLASHER UNIT - Call your local BRP dealership | Europe Models
710000581
Unavailable
8
WINCH SWITCH SUPPORT - Call your local BRP dealership
710000541
Unavailable
9
RELAY 12 V. - Call your local BRP dealership
710000364
Unavailable
10
Horn
710000365
Unavailable
11
Male Terminal
278000230
Unavailable
12
Insulated Sheath
278001008
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Harness | EUROPE MODELS ONLY (7957, 7959)
710000571
Unavailable
15
Wire Seal
278000218
Unavailable
16
Female Terminal
278000223
Unavailable
17
Harness | EUROPE MODELS ONLY (7957, 7959)
710000572
Unavailable
18
Lamp harness | EUROPE MODELS ONLY (7957, 7959)
710000469
Unavailable
19
Ground cable | EUROPE MODELS ONLY (7957, 7959)
710000470
Unavailable
20
EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe
710000367
Unavailable
21
Reflector
705000660
Unavailable
22
TAIL LIGHT - Call your local BRP dealership | EUROPE MODELS ONLY (7957, 7959)
710000624
Unavailable
23
FRONT LIGHT - Call your local BRP dealership
710000369
Unavailable
24
Head Lamp Support
705000474
Unavailable
25
Protector
705000023
Unavailable
26
LIGHT/HORN SWITCH - Call your local BRP dealership
710000370
Unavailable
27
Mirror
709400207
Unavailable
28
Power reductor
710000371
Unavailable
29
Bracket
707000286
Unavailable
30
Locking plate
707000287
Unavailable
31
Locking device (with key)
707000288
Unavailable
32
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version
704901444
Unavailable
33
MIRROR SUPPORT - Call your local BRP dealership | Europe
705000673
Unavailable
34
Shift Label
704900069
Unavailable
35
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
36
Hex. Flange Elastic Nut M5
233251414
Unavailable
37
Flat Washer M5
234051410
Unavailable
38
Pop Rivet 3/16"
390402300
Unavailable
39
Hex. Flange Screw M6 X 20
207662044
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
41
WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership
234180411
Unavailable
42
Push Nut
250100034
Unavailable
43
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
44
Push-nut
250100043
Unavailable
45
O-ring
293300097
Unavailable
46
Hex. Flange Elastic Nut M10
233201414
Unavailable
47
Hex. Flange Elastic Nut M8
233281414
Unavailable
48
Hex. Flange Elastic Nut M5
233251414
Unavailable
49
Tie-Rap 180 mm
414115200
Unavailable
50
Lock Washer Serrated M6
250200041
Unavailable
