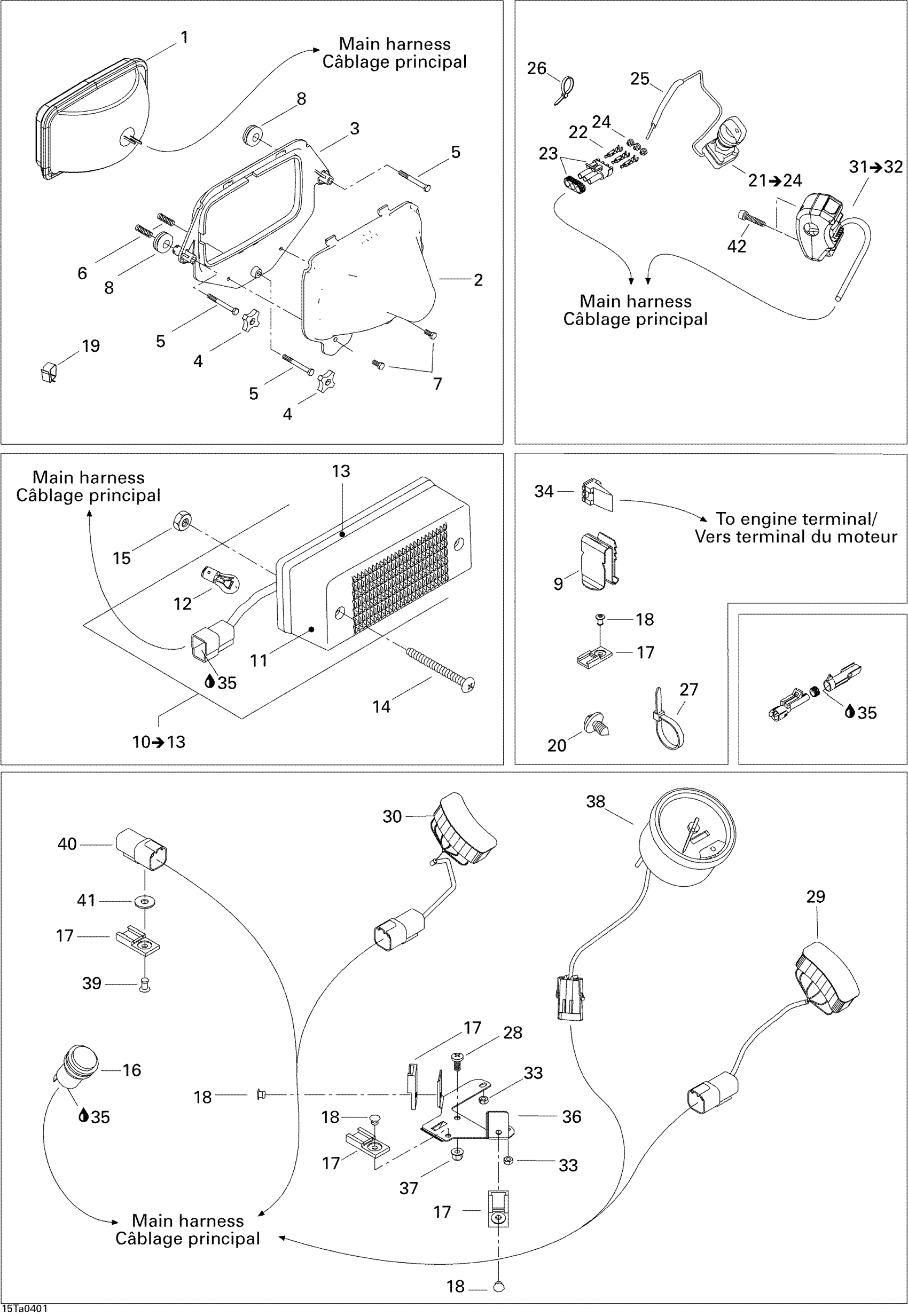

Can-Am Traxter Max Std & Max XT, 2004 10- Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Light Protector

705001048

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

Unavailable

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

Unavailable

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

Unavailable

9

CLIP - Call your local BRP dealership

409014200

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

Unavailable

13

GASKET - Call your local BRP dealership

710000129

Unavailable

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Outlet Power Kit, 12 Volts

861507200

Unavailable

17

Clip

270000141

Unavailable

18

Pop Rivet 3/16"

390402400

Unavailable

19

Clip

414227300

Unavailable

20

Mount Dart

293730040

Unavailable

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

21

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

21

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

22

Female Terminal

278000223

Unavailable

23

Male Housing, 3 Circuits

278000273

Unavailable

24

Wire Seal

278000218

Unavailable

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 368 mm

293750008

Unavailable

27

Tie-Rap 180 mm

414115200

Unavailable

28

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

29

RH Warning Light | INCLUDES ITEMS 23 TO 36

710000420

Unavailable

30

LH WARNING LIGHT - Call your local BRP dealership | INCLUDES ITEMS 27 TO 30

710000418

Unavailable

31

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

32

BACK COVER - Call your local BRP dealership

710000173

Unavailable

33

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

36

Housing Support, Black

710000159

Unavailable

37

Elastic Stop Nut M5

232551414

Unavailable

38

Speedometer

710000524

Unavailable

39

Pop Rivet 3/16"

390402300

Unavailable

40

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

41

Washer | DS 650 X

391301600

Unavailable

42

Socket Head Screw M5 X 35

205053588

Unavailable
