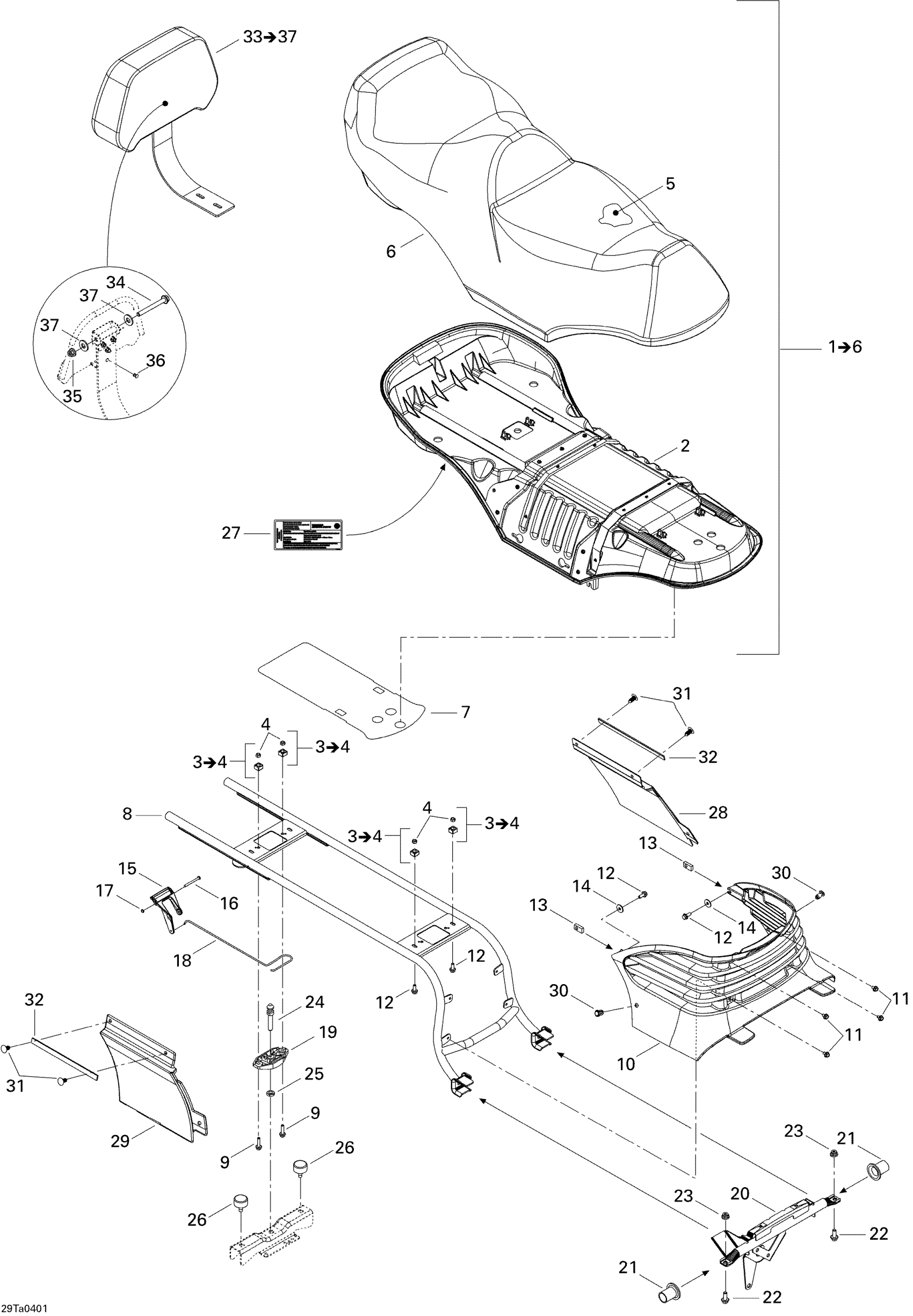

Can-Am Traxter Max Std & Max XT, 2004 09- Seat Diagram
#
1
Seat ass’y (viper red) | INCLUDES 1 TO 6
708000321
Unavailable
Seat ass’y XT (yellow)
708000339
Unavailable
Seat ass’y (Laurentian green)
708000340
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3
708000046
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Seat cover (viper red)
708000243
Unavailable
Seat cover XT (yellow)
708000246
Unavailable
Seat cover (Laurentian green)
708000248
Unavailable
7
Reflective Sheet
708000160
Unavailable
8
Seat support
708000173
Unavailable
9
Hex. Flange Screw M6 X 25
207662544
Unavailable
10
Engine cover (grey)
705000707
Unavailable
11
Hex. Forming Screw M6 X 10
210261050
Unavailable
12
Hex. Flange Screw M6 X 16
207661644
Unavailable
13
Nut Housing M6
708000042
Unavailable
14
Flat Washer
224061201
Unavailable
15
Lever Latch
708000010
Unavailable
16
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership
293150062
Unavailable
17
Push Nut
389804300
Unavailable
18
SPRING - Call your local BRP dealership
708000015
Unavailable
19
Latch Base
708000034
Unavailable
20
Pivot seat
708000177
Unavailable
21
SEAT BUSHING - Call your local BRP dealership
708000019
Unavailable
22
Hex. Flange Screw M8 X 20
207682044
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
25
Hex. Jam Nut M10
232100600
Unavailable
26
Rubber Stopper
708000758
Unavailable
27
Emission Label
704900625
Unavailable
28
LH Panel | STD, Viper Red
705000669
Unavailable
LH Panel | XT, Yellow
705000694
Unavailable
LH Panel | STD & XT, L.Green
705000880
Unavailable
29
RH PANEL - Call your local BRP dealership | STD, Viper Red
705000670
Unavailable
RH PANEL - Call your local BRP dealership | XT, Yellow
705000695
Unavailable
RH Panel | STD & XT, L.Green
705000881
Unavailable
30
Tuflok Plastic Rivet
293150230
Unavailable
31
Black Dart
293730010
Unavailable
32
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
33
Backrest ass’y | INCLUDES 33 TO 37
708000301
Unavailable
34
Hex. Screw M8 X 95
207089544
Unavailable
35
Hex. Flange Elastic Nut M8
233281414
Unavailable
36
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
37
Hardened Washer
706200281
Unavailable
