09- Body And Accessories, Rear View

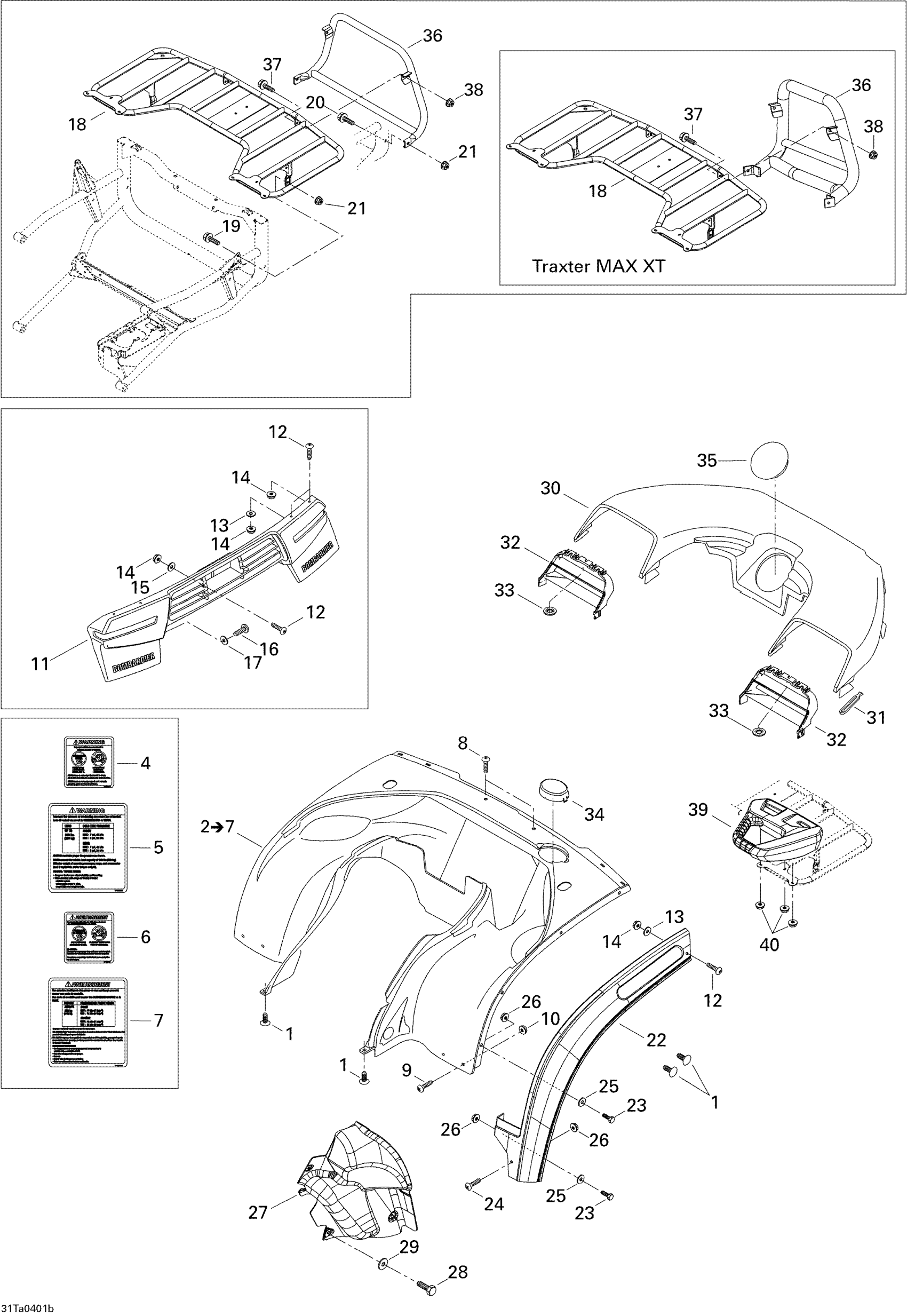

Can-Am Traxter Max Std & Max XT, 2004 09- Body And Accessories, Rear View Diagram
#
1
Black, Dart
293730011
Unavailable
2
Rear fender kit XT (Yellow) | INCLUDES 2 TO 7
703500360
Unavailable
Rear fender kit (Viper red) | Includes 2 - 4.
703500277
Unavailable
Rear fender kit (Laurentian green)
703500359
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
4
Warning Label, English | (Passenger under 12 years old)
704900634
Unavailable
5
Warning label english | (Tire pressure)
704900519
Unavailable
6
Warning Label, French
704900437
Unavailable
7
Warning label french | (tire pressure)
704900440
Unavailable
8
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
9
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Rear Fascia, Slate Gray
705000709
Unavailable
12
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
13
Flat Washer
224060201
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Flat Washer
224060201
Unavailable
16
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
17
Flat Washer
224061121
Unavailable
18
Luggage Rack, Black
705000874
Unavailable
19
Hex. Flange Screw M8 X 20
207682044
Unavailable
20
Hex. Flange Screw M8 X 50
207685044
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
LH rear mudguard
705000701
Unavailable
RH rear mudguard
705000702
Unavailable
23
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
24
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
25
Flat Washer
224060201
Unavailable
26
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
27
LH TANK PROTECTOR - Call your local BRP dealership
705000133
Unavailable
RH TANK PROTECTOR - Call your local BRP dealership
705000134
Unavailable
28
Hex. Flange Screw M6 X 16
210261650
Unavailable
29
Flat Washer
224061201
Unavailable
30
Fender Cover, Yellow | Yellow
705000179
Unavailable
Fender Cover, Viper Red | Red
705000576
Unavailable
Fender Cover, Laurentian Green | Green
705000831
Unavailable
31
Windshield Latch
570023800
Unavailable
32
LH Grill, Black
705000180
Unavailable
RH Grill, Black
705000181
Unavailable
33
PUSH NUT - Call your local BRP dealership
250100000
Unavailable
34
COVER, BLACK - Call your local BRP dealership
705000132
Unavailable
35
CAP - Call your local BRP dealership
705000207
Unavailable
36
Rear bumper | STD Quest Std.
705000793
Unavailable
Rear Bumper, Black | XT
705000799
Unavailable
37
Hex. Flange Screw M8 X 20
207682046
Unavailable
38
Hex. Elastic Flange Nut M8
233281416
Unavailable
39
LH Handle
705000703
Unavailable
RH Handle
705000704
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
