07- Steering System

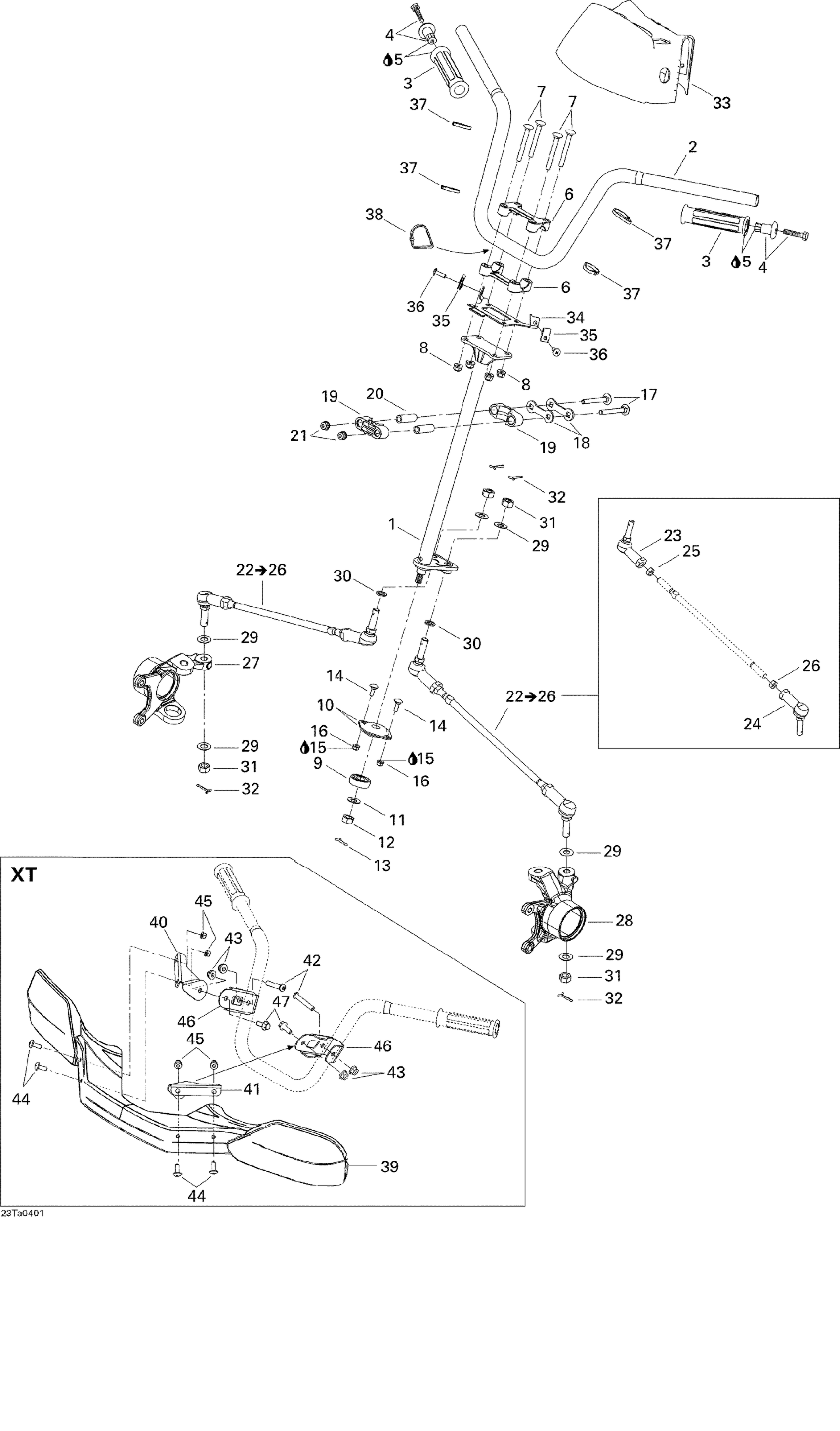

Can-Am Traxter Max Std & Max XT, 2004 07- Steering System Diagram
#
1
Main Tube, Black
709400089
Unavailable
2
HANDLE BAR - Call your local BRP dealership
709400199
Unavailable
3
Handle Grip
709400493
Unavailable
4
END-PIECE - Call your local BRP dealership | DS 650
709400189
Unavailable
5
Loctite 406, 7 Oz
293800100
Unavailable
6
Steering Clamp
709400028
Unavailable
7
CARRIAGE BOLT M8 X 65 - Call your local BRP dealership
207786544
Unavailable
8
Hex. Flange Elastic Nut M8
233281414
Unavailable
9
Ball Bearing
709400439
Unavailable
10
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
11
Flat Washer 12 mm
234021410
Unavailable
12
Nut M12
250100099
Unavailable
13
Cotter Pin
211400017
Unavailable
14
Carriage Bolt M6 X 25
207762544
Unavailable
15
Loctite 243, 10 ml
293800060
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Carriage Bolt M8 X 70
207787044
Unavailable
18
Stopper Plate
506150600
Unavailable
19
HALF-HOUSING - Call your local BRP dealership
709400034
Unavailable
20
Housing Bushing
506150500
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
ROD-TIE ASS'Y - Call your local BRP dealership
709400489
Unavailable
23
RH Ball Joint
709402302
Unavailable
24
LH Ball Joint
709402303
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
RH Knuckle
709400095
Unavailable
28
LH KNUCKLE - Call your local BRP dealership
709400097
Unavailable
29
Hardened Washer
706200281
Unavailable
30
Washer
503189276
Unavailable
31
Nut M12
250100099
Unavailable
32
Cotter Pin
211400013
Unavailable
33
Steering Cover, Slate Gray
709400215
Unavailable
34
Cover Support, Black | 7415/7416. 7417/7418.
709400077
Unavailable
35
Speednut M6
211100050
Unavailable
36
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
37
Tie-Rap 180 mm
414115200
Unavailable
38
Tie Wrap 368 mm
293750008
Unavailable
39
Hand Protector | 7423/7424 (XT-Yellow/Jaune).
705000183
Unavailable
40
RH Support | Traxter XT.
709400116
Unavailable
41
LH Support | Traxter XT.
709400117
Unavailable
42
Socket Head Screw M8 X 45 | Traxter XT.
205484546
Unavailable
43
Hex. Flange Elastic Nut M8
233281414
Unavailable
44
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
45
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
46
U Shaped Bracket
709400118
Unavailable
47
Hex. Flange Screw M8 X 20
207682044
Unavailable
