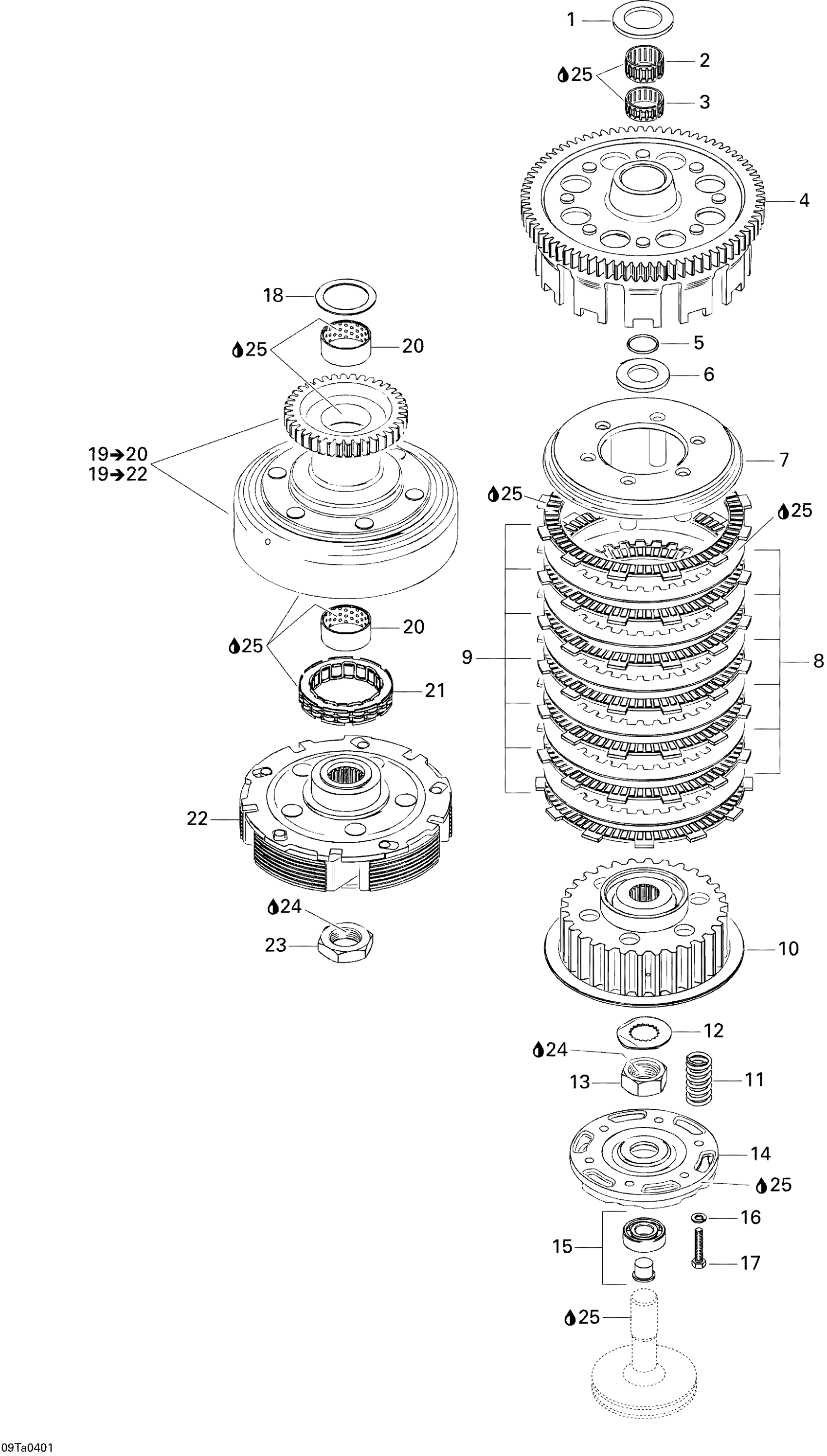

Can-Am Traxter Max Std & Max XT, 2004 05- Clutch Diagram
#
Description
Price
1
THRUST WASHER - Call your local BRP dealership
420227390
Unavailable
2
Needle Bearing
420632070
Unavailable
3
NEEDLE CAGE - Call your local BRP dealership
420232655
Unavailable
4
Clutch Drum
420659203
Unavailable
5
O-RING - Call your local BRP dealership
293300018
Unavailable
6
THRUST WASHER - Call your local BRP dealership
420227600
Unavailable
7
INNER PLATE - Call your local BRP dealership
420659230
Unavailable
8
Plate 1.5 mm
420259915
Unavailable
9
LAMELLA 3 MM - Call your local BRP dealership
420259907
Unavailable
10
CLUTCH HUB - Call your local BRP dealership
420259876
Unavailable
11
CLUTCH SPRING - Call your local BRP dealership
420239741
Unavailable
12
TAB WASHER - Call your local BRP dealership
420245320
Unavailable
13
Hex. Nut M18
420242605
Unavailable
14
Retaining Plate
420259131
Unavailable
15
Hub Thrust With Ball Bearing
420259143
Unavailable
16
Lock Washer
420945750
Unavailable
17
HEX. SCREW M5 X 25 - Call your local BRP dealership
420241770
Unavailable
18
THRUST WASHER - Call your local BRP dealership
420427130
Unavailable
19
CLUTCH ASS'Y - Call your local BRP dealership | Includes 19 to 23
420296093
Unavailable
19
CLUTCH - Call your local BRP dealership | Includes 20 to 21
420659177
Unavailable
20
CLUTCH BUSHING - Call your local BRP dealership
420233765
Unavailable
21
SPRAG CLUTCH - Call your local BRP dealership
420659240
Unavailable
22
CLUTCH HUB - Call your local BRP dealership
420659180
Unavailable
23
Hex. Nut, M22 X 1.5
420842239
Unavailable
24
Loctite 243, 10 ml
293800060
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
