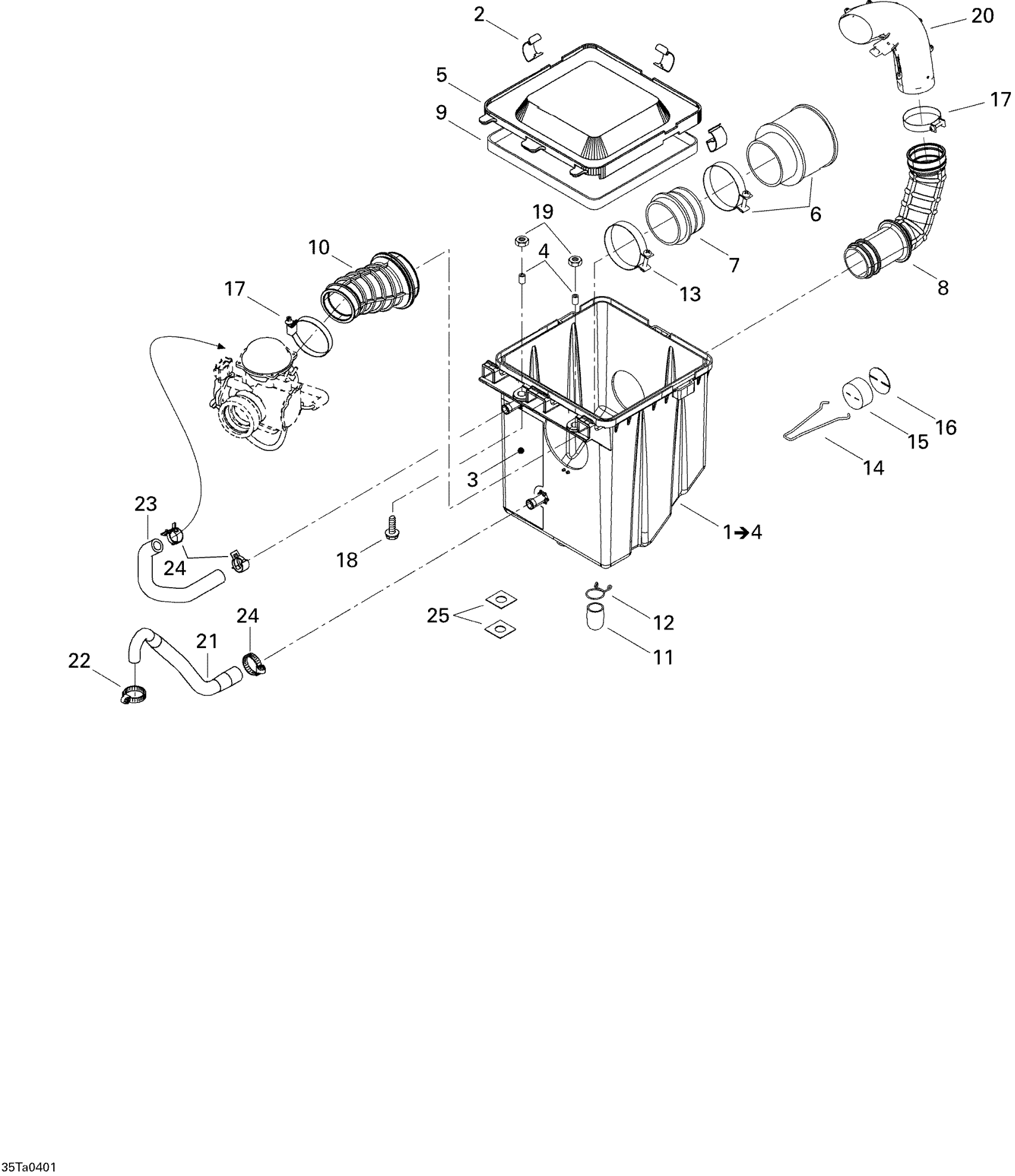

Can-Am Traxter Max Std & Max XT, 2004 02- Air Intake Silencer Diagram

#

Description
Price

1

SILENCER BASE ASS'Y - Call your local BRP dealership | Includes 1 To 7

707800167

Unavailable

2

Bracket Cover

707800079

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

707800083

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Muffler cover

707800017

Unavailable

6

Air Filter

707800072

Unavailable

7

Adaptor

707800077

Unavailable

8

Intake Adaptor

707800078

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

Unavailable

10

INTAKE ADAPTOR - Call your local BRP dealership

707800071

Unavailable

11

Drain Tube

707800080

Unavailable

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

Unavailable

14

FOAM BRACKET - Call your local BRP dealership

707800087

Unavailable

15

FILTER FOAM - Call your local BRP dealership

707800088

Unavailable

16

Retainer Bracket

707800089

Unavailable

17

Gemi Clamp

293650158

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

REAR AIR INTAKE - Call your local BRP dealership

707800073

Unavailable

21

Rear vent hose

707800085

Unavailable

22

Norma Spring Clamp

293650109

Unavailable

23

Carburator Vent Hose

707800086

Unavailable

24

Norma Clamp

293650110

Unavailable

25

Rubber Bumper

293830091

Unavailable
