- Traxter Max Std & Max XT, 2004
01- Crankcase

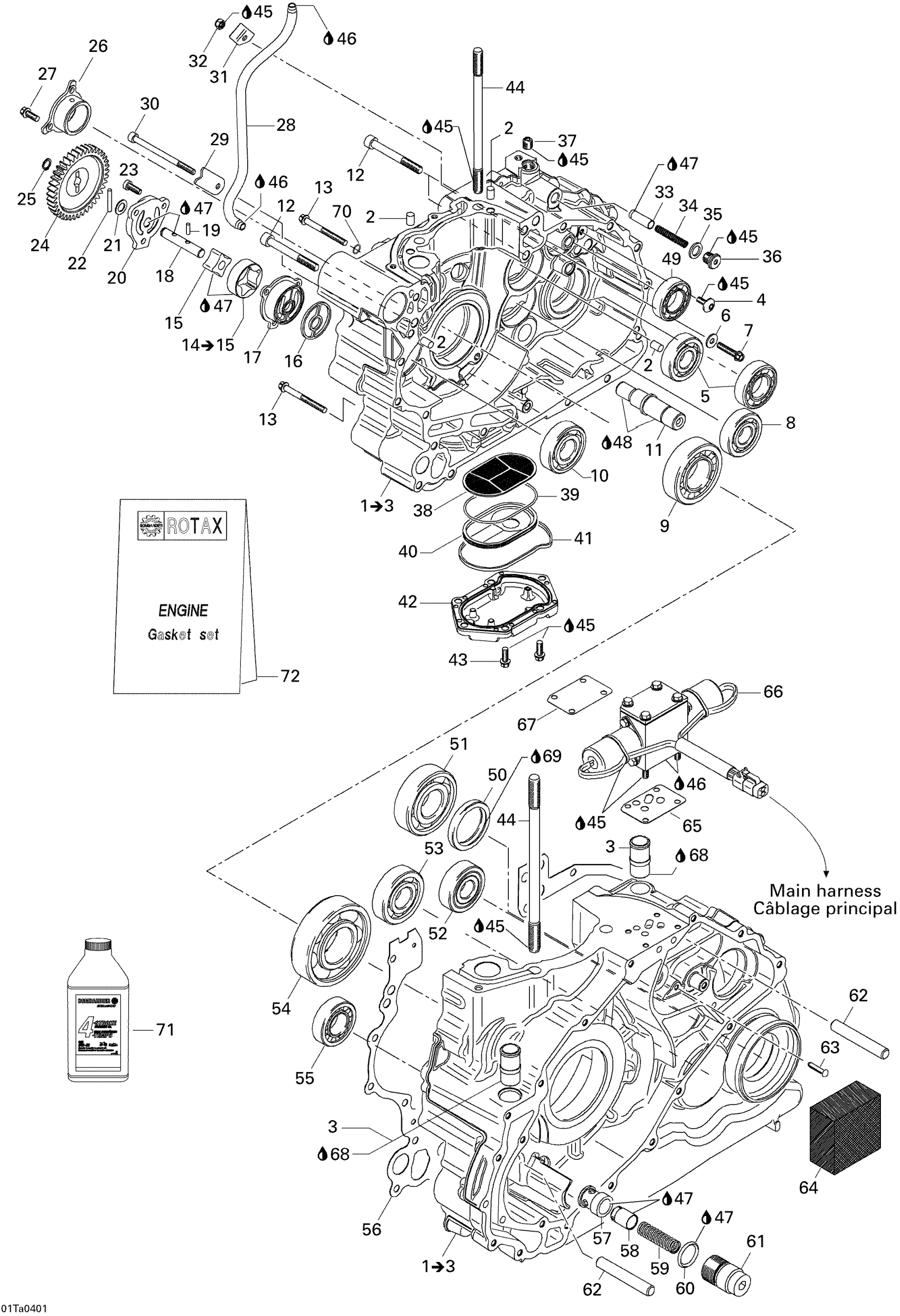

Can-Am Traxter Max Std & Max XT, 2004 01- Crankcase Diagram
#
1
Crankcase Ass‘Y | Includes 1 to 2
420295881
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
TUBE - Call your local BRP dealership
420224260
Unavailable
4
SCREW M6 X 13 - Call your local BRP dealership
420241531
Unavailable
5
Ball Bearing 6205
420232764
Unavailable
6
Washer
420627400
Unavailable
7
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership
420241941
Unavailable
8
Ball Bearing 6304E
420932095
Unavailable
9
ROLLER BEARING - Call your local BRP dealership
420232490
Unavailable
10
BALL BEARING 63/22 - Call your local BRP dealership
420632200
Unavailable
11
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
420220570
Unavailable
12
SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership
420841991
Unavailable
13
Hex. Flange Screw M6 X 65
420640351
Unavailable
14
OIL PUMP ROTOR ASS'Y - Call your local BRP dealership | Includes 16 to 17
420956275
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
RUBBER RING - Call your local BRP dealership
420650960
Unavailable
17
Ring Housing
420610140
Unavailable
18
Oil Pump Shaft
420220592
Unavailable
19
Needle Pin
420232731
Unavailable
20
OIL PUMP COVER - Call your local BRP dealership
420211852
Unavailable
21
Thrust Washer
420827590
Unavailable
22
NEEDLE PIN - Call your local BRP dealership
420232971
Unavailable
23
SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership
420240404
Unavailable
24
Oil Pump Gear, 40 Teeth
420635030
Unavailable
25
Snap Ring
420245330
Unavailable
26
Ring Housing
420610130
Unavailable
27
Hex. Flange Screw M6 X 16
420241751
Unavailable
28
Oil Pipe
420224622
Unavailable
29
Holding Strip
420627437
Unavailable
30
Socket Head Screw M6 X 90
420241481
Unavailable
31
Holding Strip
420627432
Unavailable
32
Elastic stop nut M6
420561414
Unavailable
33
PISTON - Call your local BRP dealership
420256590
Unavailable
34
COMPRESSION SPRING - Call your local BRP dealership
420238020
Unavailable
35
Aluminum Sealing Ring
420250016
Unavailable
36
Plug Screw M12 x 1,5
420241701
Unavailable
37
PLUG SCREW M12 X 1.5 - Call your local BRP dealership
420840651
Unavailable
38
OIL SIEVE - Call your local BRP dealership
420256572
Unavailable
39
O-RING - Call your local BRP dealership
420931385
Unavailable
40
OIL COLLECTOR - Call your local BRP dealership
420256652
Unavailable
41
RUBBER RING - Call your local BRP dealership
420650950
Unavailable
42
Oil Sieve Cover
420211941
Unavailable
43
HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership
420241861
Unavailable
44
STUD M10 X 190 - Call your local BRP dealership
420241670
Unavailable
45
Loctite 243, 10 ml
293800060
Unavailable
46
Was 413702700 Loctite 515, 50 ml
219704462
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
Molykote G-N, 50 g
420297433
Unavailable
49
Bearing_Ball - Call your local BRP dealership
420932650
Unavailable
50
OIL SEAL - Call your local BRP dealership
420650700
Unavailable
51
Ball Bearing
420932822
Unavailable
52
Ball Bearing
420932816
Unavailable
53
Ball Bearing 6304E
420932095
Unavailable
54
BALL BEARING - Call your local BRP dealership
420432120
Unavailable
55
ROLLER BEARING - Call your local BRP dealership
420232280
Unavailable
56
GASKET, CRANKCASE - Call your local BRP dealership
420650422
Unavailable
57
SEAT VALVE SLEEVE - Call your local BRP dealership
420256602
Unavailable
58
Piston Valve
420256638
Unavailable
59
COMPRESSION SPRING - Call your local BRP dealership
420938785
Unavailable
60
O-Ring
420250050
Unavailable
61
Plug Screw M24 X 1.5
420640790
Unavailable
62
Needle Pin
420229475
Unavailable
63
Groove Pin M4 X 20
420229170
Unavailable
64
OIL SEPARATING FOAM - Call your local BRP dealership
420256720
Unavailable
65
SOLENOID VALVE GASKET - Call your local BRP dealership
420650630
Unavailable
66
Solenoïd Valve
420256540
Unavailable
67
Gasket
420650636
Unavailable
68
Sealant Loctite 648
219703000
Unavailable
69
Grease, Super Lube
293550030
Unavailable
70
Oil Seal
420230150
Unavailable
71
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
72
SOLENOID VALVE GASKET SET - Call your local BRP dealership
420296375
Unavailable
