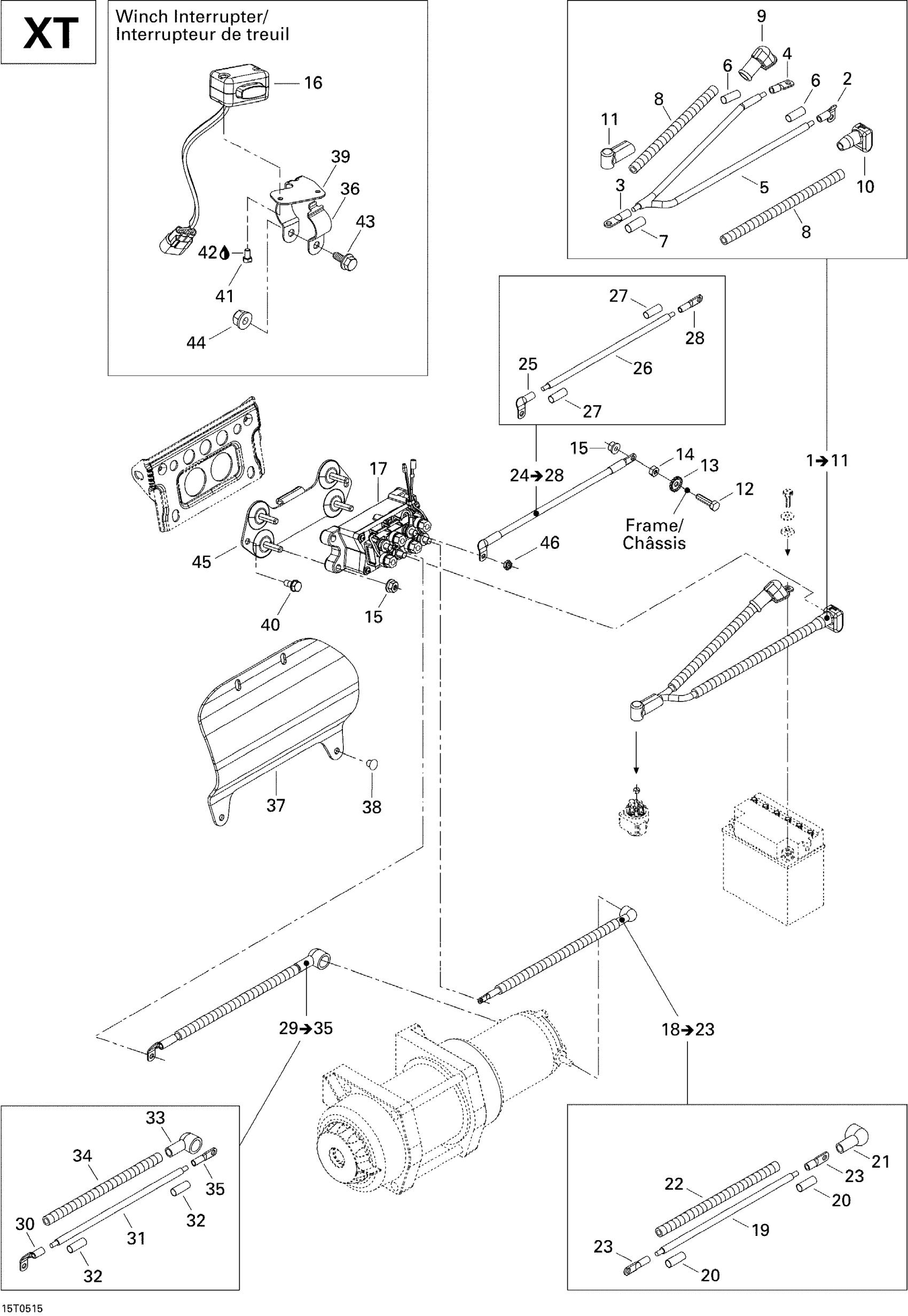

Can-Am Traxter Max CVT 650, 2005 Winch, Electrical XT Diagram

#

Description
Price

1

Cable, Battery-solenoid | Includes 1 to 10 / Traxter CVT XT

710000434

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

$7.66

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Was 710000483 Heat Shrink Tubing

219704447

$74.58

7

Shrink Tubing | XT Models

275500578

Unavailable

8

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

9

Protector Cap

710000495

$10.14

10

Protector Cap | STD Models

710000523

Unavailable

11

Protector Cap

710000527

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

13

External Serrated Lock Washer 6 mm

234461608

$0.92

14

Hex. Nut M6

232061414

$0.44

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

17

Winch Solenoid | XT Models

710001000

$117.66

18

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Was 710000483 Heat Shrink Tubing

219704447

$74.58

21

Protector Cap

710000494

Unavailable

22

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

23

Open Barrel

710000530

Unavailable

24

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

25

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

$7.66

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Was 710000483 Heat Shrink Tubing

219704447

$74.58

28

Open Barrel

710000530

Unavailable

29

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

30

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Was 710000483 Heat Shrink Tubing

219704447

$74.58

33

Protector Cap

710000494

Unavailable

34

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

35

Open Barrel

710000530

Unavailable

36

Collar

710000566

Unavailable

37

Protector Pad

710000511

Unavailable

38

Black, Dart

293730011

$0.79

39

Support, Black

710000564

Unavailable

40

Hex. Forming Screw M6 X 10

210261050

$1.42

41

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

42

Loctite 243, 10 ml

293800060

$20.77

43

Hex. Flange Screw M6 X 16

207661654

$1.74

44

Hex. Flange Elastic Nut M6

233261494

$1.26

45

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

$12.28

46

Elastic Stop Nut M6

232561414

$1.55
