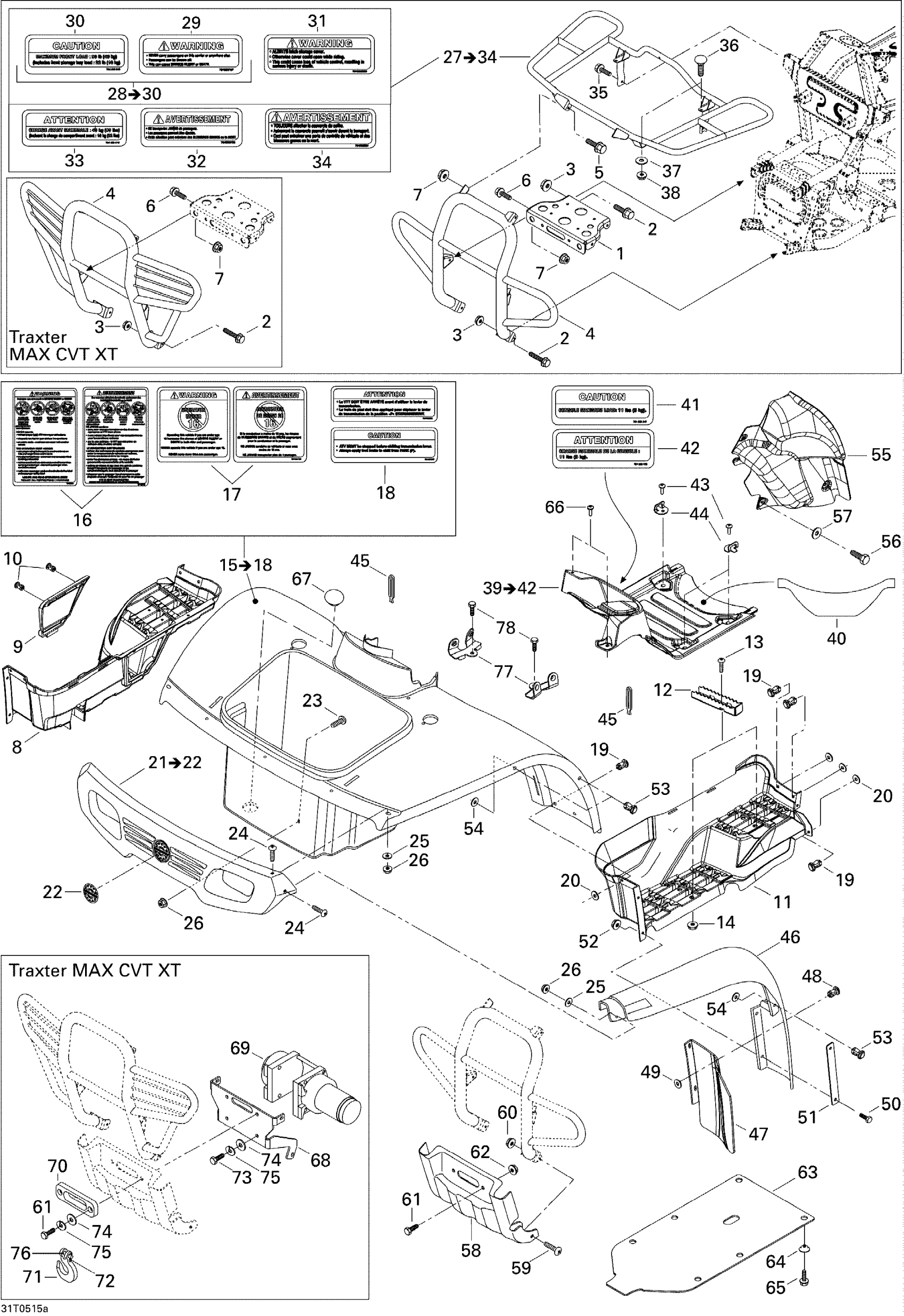

Can-Am Traxter Max CVT 650, 2005 Body And Accessories, Front View Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

$22.94

2

Hex. Flange Screw M8 X 25

207682544

$0.90

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$0.92

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Footrest Cover Ass'y RH | Includes 8 To 10

705001624

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Tuflok Plastic Rivet

293150230

$1.21

11

Footrest Cover Ass'y LH

705001627

Unavailable

12

Footrest, Black

705001083

Unavailable

13

Hex. Flange Screw M6 X 25

207662554

$1.48

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Front Fender Kit, Viper Red | Includes 15 To 18

703500494

Unavailable

15

Front Fender Kit, Laurentian Green | Includes 15 To 18

703500462

Unavailable

16

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

16

Warning Decall, Death And Injuries | French Version

704900905

Unavailable

17

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

17

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

18

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

18

Caution Decal, Transmission Selector | French version

704900008

Unavailable

19

Tuflok Plastic Rivet

293150230

$1.21

20

Flat Washer

250200020

Unavailable

21

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

22

BRP Logo 68mm

516008739

$12.87

23

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

25

Flat Washer

224060201

$1.15

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Luggage Rack Kit | Includes 27 To 34

703500452

Unavailable

28

Warning Decal, Front Load | English Version, Includes 28 To 30

704900799

Unavailable

29

Warning Label, death And Injuries | English Version

704900797

Unavailable

30

Maximum Load Label | English Version

704900015

Unavailable

31

Warning Decal, Cover Latch | English Version

704900800

Unavailable

32

Warning Decal, Death And Injuries | French Version

704900798

Unavailable

33

Caution Decal, Maximum Load | French Version

704900016

Unavailable

34

Warning Decal, Cover Latch | French Version

704900801

Unavailable

35

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

36

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

$1.20

37

Flat Washer

224061121

$0.44

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

39

Console Kit, Black | Includes 14 to 16

703500391

Unavailable

40

Reflective Sheet

705000541

Unavailable

41

CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version

704900247

Unavailable

42

Caution Decal, Console Load | French Version

704900250

Unavailable

43

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

44

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

45

Windshield Latch

570023800

$3.58

46

LH Front Mudguard

705001588

Unavailable

46

RH Front Mudguard

705001587

Unavailable

47

Mudguard Extension

705000755

Unavailable

48

Tuflok Plastic Rivet

293150230

$1.21

49

Flat Washer 8 mm

234082410

$1.11

50

Hex. Screw M6 X 25

207162544

$1.05

51

PLATE - Call your local BRP dealership

705000754

$7.89

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

53

Tuflok Plastic Rivet

293150230

$1.21

54

Flat Washer 8 mm

234082410

$1.11

55

LH TANK PROTECTOR - Call your local BRP dealership

705000133

$21.51

55

RH TANK PROTECTOR - Call your local BRP dealership

705000134

$21.51

56

Hex. Flange Screw M6 X 16

210261650

$1.22

57

Flat Washer

224061201

$1.11

58

Front Protection Plate, black

705000135

Unavailable

59

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

61

Hex. Flange Screw M10 X 25

207602544

$1.33

61

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Skid Plate

705000949

Unavailable

64

CUP - Call your local BRP dealership

705200533

$5.35

65

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

66

Tuflock Phillips Plastic Screw

414745900

$1.30

67

Rubber Cover

570041600

Unavailable

68

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

69

WINCH - Call your local BRP dealership

705000839

Unavailable

70

CABLE GUIDE - Call your local BRP dealership

705000194

$23.82

71

Winch Hook Kit

705014949

$27.66

72

Cotter Pin

250400022

$8.66

73

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

$2.39

74

Flat Washer 8 mm

234081410

$0.69

75

Lock Washer 8 mm

234181401

$0.89

76

Clevis Pin

250400021

$11.83

77

Bracket, Black

705000311

Unavailable

78

Hex. Forming Screw M6 X 10

210261050

$1.42
