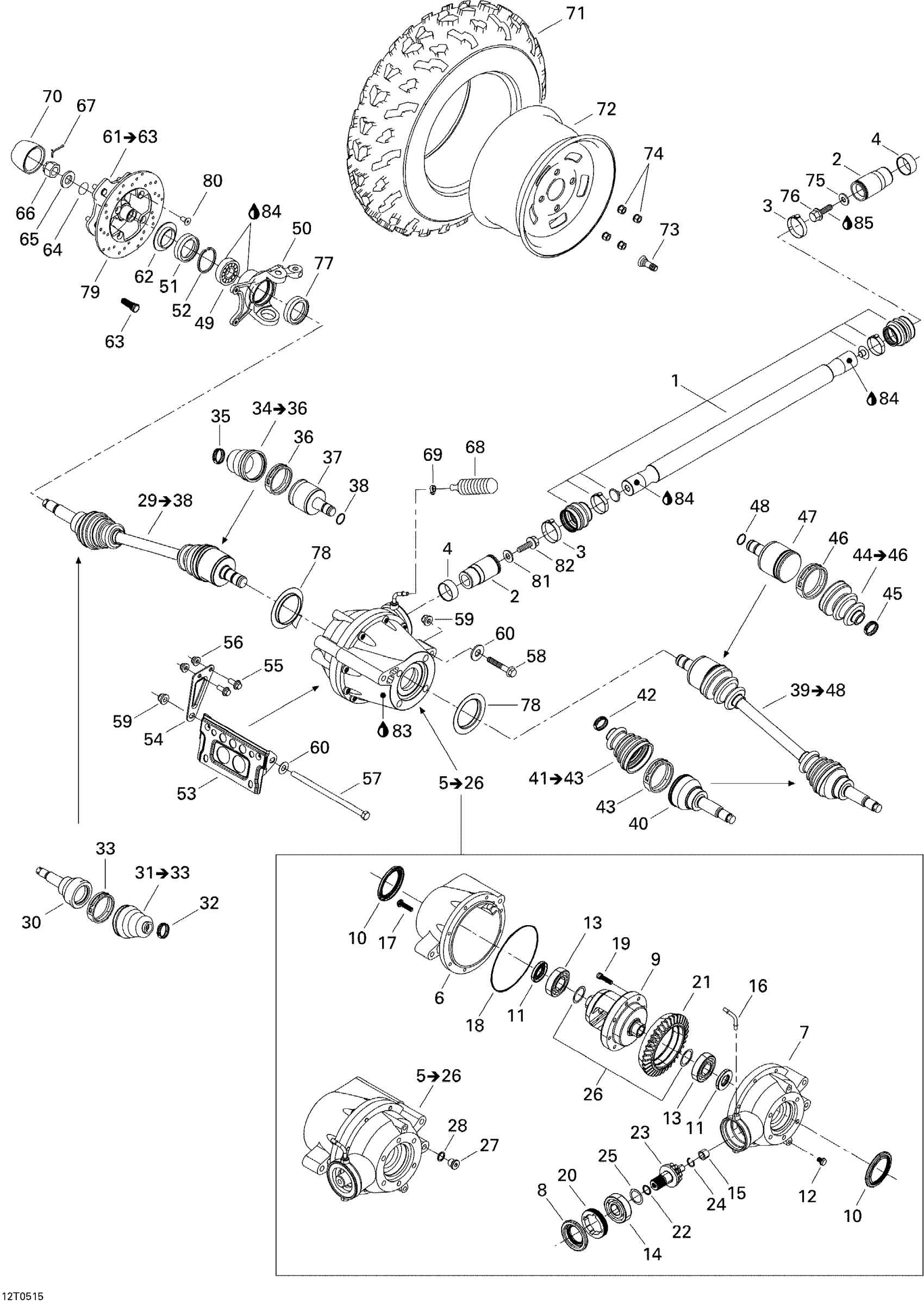

Can-Am Traxter Max CVT 650, 2005 Drive System, Front Diagram

#

Description
Price

1

DRIVE AXLE ASS'Y - Call your local BRP dealership

705400333

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$104.58

3

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

4

Wear Ring | 4X4

705400036

$25.35

5

Front Differential Ass'y | Includes 7 to 29

705400264

Unavailable

6

Front Cover

705400099

Unavailable

7

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug | 4X4

705500894

$11.06

13

Ball Bearing | 4X4

705401606

$49.20

14

Ball Bearing | 4X4

705500260

$30.39

15

Needle Bearing | 4X4

705500261

$17.66

16

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

17

Screw | 4X4

705401601

$9.29

18

Seal | 4X4

705500265

$16.12

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

20

Nut | 4X4

705401603

$36.89

21

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

22

O-Ring | 4X4

705500267

$6.25

23

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

24

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

25

Pinion Gear Shim .022"

705500075

Unavailable

26

Shim | 4X4

705401604

$55.35

27

Fill Level Plug | 4X4

705500504

$7.61

28

Copper Washer | 4X4

705500506

$0.36

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

30

CV JOINT - Call your local BRP dealership

705400093

Unavailable

31

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

32

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

33

Clamp | 4X4

705400180

Unavailable

34

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

35

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

36

Clamp | 4X4

705400181

Unavailable

37

RH Plunging Joint

705400128

Unavailable

38

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

39

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

40

CV JOINT - Call your local BRP dealership

705400093

Unavailable

41

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

42

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

43

Clamp | 4X4

705400180

Unavailable

44

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

45

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

46

Clamp | 4X4

705400181

Unavailable

47

LH Plunging Joint

705400129

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$51.93

50

RH Knuckle

709400095

Unavailable

50

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

51

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

52

Circlip

293370019

$4.98

53

DIFFENTIAL FRONT BRACKET - Call your local BRP dealership

705400255

Unavailable

54

RH Diffential Front Bracket

705400069

Unavailable

55

Hex. Flange Screw M8 X 20

207682044

$0.92

56

Hex. Flange Elastic Nut M8

233281414

$1.14

57

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

58

Hex. Flange Screw M10 X 65

207606536

$3.61

59

Hex. Flange Elastic Nut M10

233201436

$1.74

60

Flat Washer

250200003

Unavailable

61

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

62

WEAR RING - Call your local BRP dealership

705500100

Unavailable

63

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

64

O-RING - Call your local BRP dealership

705500271

Unavailable

65

WASHER - Call your local BRP dealership

250200019

Unavailable

66

Hex. Flange Castellated Nut M18

232291413

$2.82

67

Cotter Pin

250400036

$1.74

68

Rubber Bellow | 4X4

705400552

$6.02

69

Tie Wrap 94 mm | 4X4

293750001

$0.83

70

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

71

Front Tire | XT

705400326

$123.82

71

Front Tire | XT

705400326

$123.82

72

FRONT RIM - Call your local BRP dealership

705400290

Unavailable

73

Rim Valve With Cap

705400193

$6.69

74

Steel Wheel Nut

250100042

$2.48

75

Washer

211200041

$2.63

76

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

77

Oil Seal | 4X4

293250090

$23.05

78

Wear Ring

705400016

Unavailable

79

Disc Brake 205 mm

705600342

Unavailable

80

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

81

Flat Washer M10 | 4X4

250200014

$1.17

82

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

83

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

84

Synthetic Grease, 400 G

293550010

Unavailable

85

Loctite 271, 10 ml

293800005

$20.77
