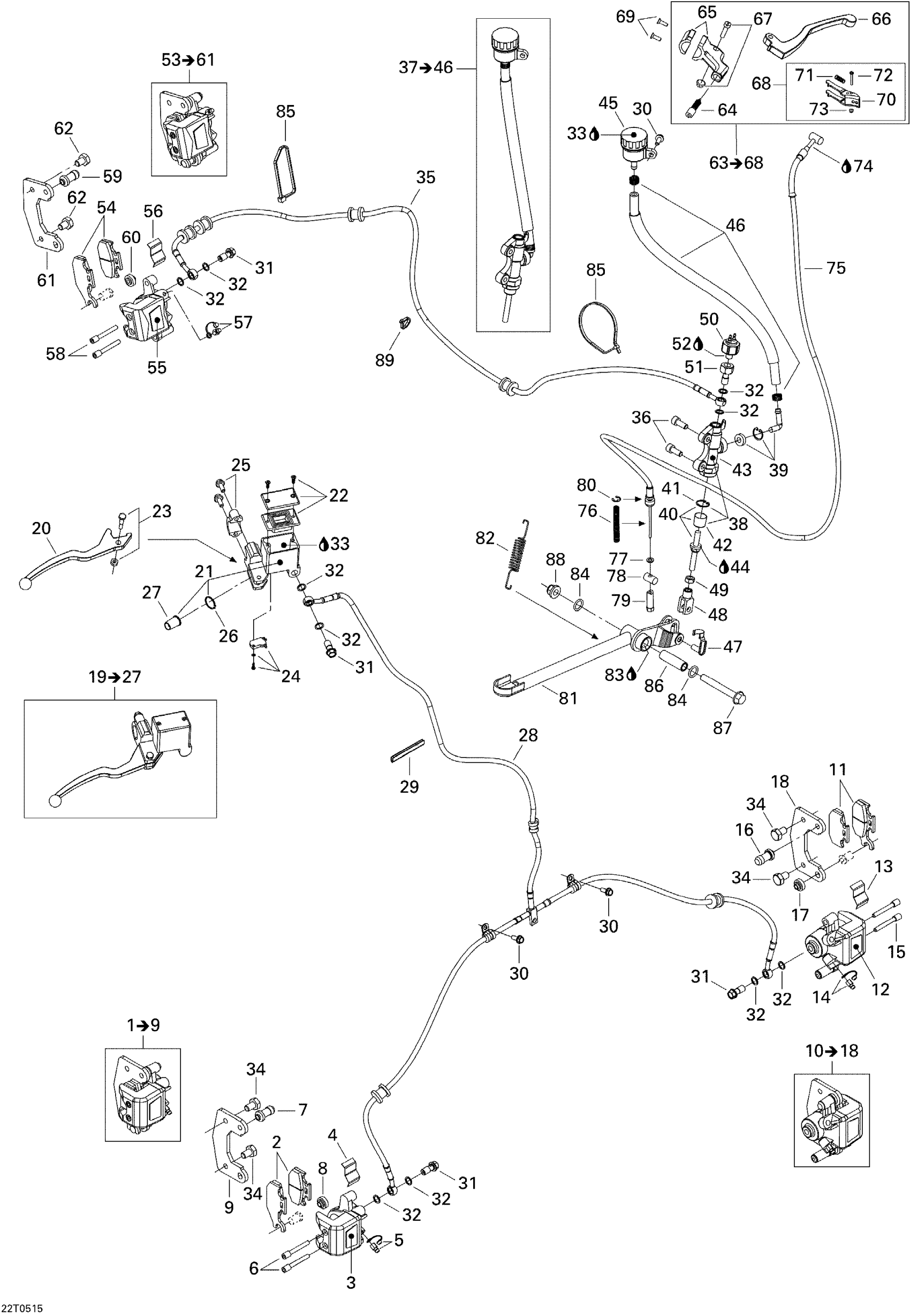

Can-Am Traxter Max CVT 650, 2005 Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

$49.39

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

Not Available As Spare Part - Friction Washer

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

Unavailable

22

Cap Set

705600084

$23.05

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600148

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Brake Hose

705600290

$170.74

29

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

$1.22

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

32

Washer

414920600

$1.52

33

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

33

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

34

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

35

FLEXIBLE HOSE - Call your local BRP dealership

705600378

Unavailable

36

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

37

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

38

Piston Set

705600063

Unavailable

39

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Circlip

705600068

Unavailable

42

Compression Boot

705600090

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

46

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

47

Pin Kit

219702305

$26.62

48

Yoke

705600100

Unavailable

49

Hex. Nut M8

232081414

$0.60

50

Interrupteur *Brake Switch

710001345

Unavailable

51

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

52

Was 293800013 Loctite 56765

219704454

$65.35

53

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

54

Brake Pad Kit

705600150

$49.97

55

Piston Set

705600078

$36.89

56

Spring

705600079

$14.37

57

Bleeding Screw

705600080

$15.22

58

Pin Set (2)

705600081

$19.20

59

Compression Boot

705600082

$10.14

60

Compression Boot

705600083

$10.14

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.98

63

Brake Handle | Includes 61 to 66

705600269

Unavailable

64

Cable Screw

250000030

Unavailable

65

CLAMP KIT - Call your local BRP dealership

705600270

Unavailable

66

LEVER - Call your local BRP dealership

705600186

Unavailable

67

Pivot Kit

705600187

Unavailable

68

Lever Lock Kit

705600188

Unavailable

69

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

70

LOCK LEVER - Call your local BRP dealership

705600387

Unavailable

71

SPRING - Call your local BRP dealership

705600225

Unavailable

72

Screw M3 X 22

208032291

Unavailable

73

Elastic Stop Nut M3

232531423

$0.54

74

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

75

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

76

SPRING - Call your local BRP dealership

705600144

Unavailable

77

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

78

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

79

NUT - Call your local BRP dealership

705600388

Unavailable

80

Circlip

705600272

$7.69

81

Brake Pedal, Black

705600385

Unavailable

82

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

83

Synthetic Grease, 400 G

293550010

Unavailable

84

O-RING - Call your local BRP dealership

293300053

Unavailable

85

Tie Wrap 368 mm

293750008

$0.85

86

Spacer

705600327

Unavailable

87

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

88

Hex. Flange Elastic Nut M10

233201414

$1.26

89

Tie-Rap 180 mm

414115200

$0.09
