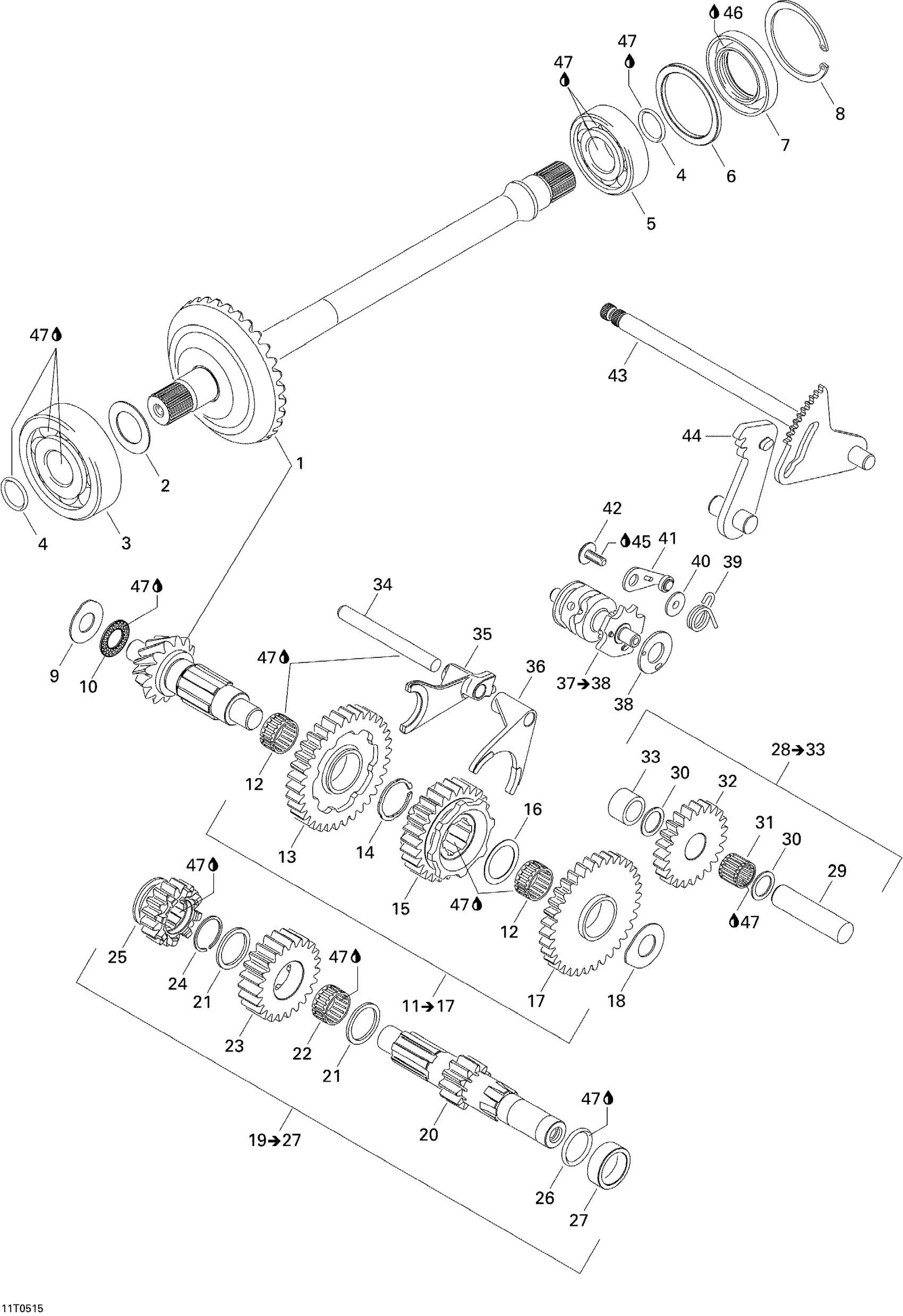

Can-Am Traxter Max CVT 650, 2005 Gear Shift Diagram

#

Description
Price

1

BEVELLED GEAR ASS'Y - Call your local BRP dealership

420296530

$589.99

2

Washer Thrust Set

420281300

$92.28

3

Ball Bearing 6405

420632280

$93.82

4

O-Ring

420430373

$2.63

5

Ball Bearing

420932822

$29.20

6

DISTANCE RING - Call your local BRP dealership

420247250

$7.66

7

Oil Seal

420650682

$18.43

8

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

9

Thrust Washer Set, MAG Side

420281306

$59.97

10

Axial Needle Bearing

420632300

$17.66

11

Gearwheel Set Ass'y | Traxter 650 CVT, Includes 11 To 17

420281280

$302.99

12

Needle Bearing

420632070

$23.05

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Retaining Ring

420245850

$5.98

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer Set, CVT Side

420281302

$83.05

19

Counter Shaft, 11 Teeth | Traxter 650 CVT, Includes 19 To 27

420220976

$358.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$23.05

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Circlip

420445302

$4.03

25

Not Available As Spare Part - Friction Washer

Unavailable

26

O-Ring

420630040

$3.61

27

Distance Ring

420247110

Unavailable

28

Idle Gear Shaft Ass'y | Includes 28 To 33

420229605

Unavailable

29

Needle Pin

420229600

$36.89

30

THRUST WASHER - Call your local BRP dealership

420944190

$6.89

31

Needle Cage

420432034

$34.58

32

GEAR, 23 TEETH - Call your local BRP dealership

420635310

$68.43

33

DISTANCE SLEEVE - Call your local BRP dealership

420247120

$15.82

34

Pin

420229540

$23.05

35

SHIFT FORK - Call your local BRP dealership

420257180

$76.89

36

Shift Fork

420257230

Unavailable

37

SHIFT DRUM ASS'Y - Call your local BRP dealership | Includes 37 To 38

420257175

$84.99

38

ISOLATING WASHER - Call your local BRP dealership

420227567

$3.82

39

Index Spring

420239561

$11.98

40

BUSHING - Call your local BRP dealership

420227710

$8.43

41

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

42

Torx Screw M6 X 16

420241529

$1.56

43

SHIFT SHAFT ASS'Y - Call your local BRP dealership

420220806

$73.05

44

LOCK LEVER - Call your local BRP dealership | Traxter 650 CVT

420257156

$43.82

45

Loctite 243, 10 ml

293800060

$20.77

46

Grease, Super Lube

293550030

$24.67

47

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
