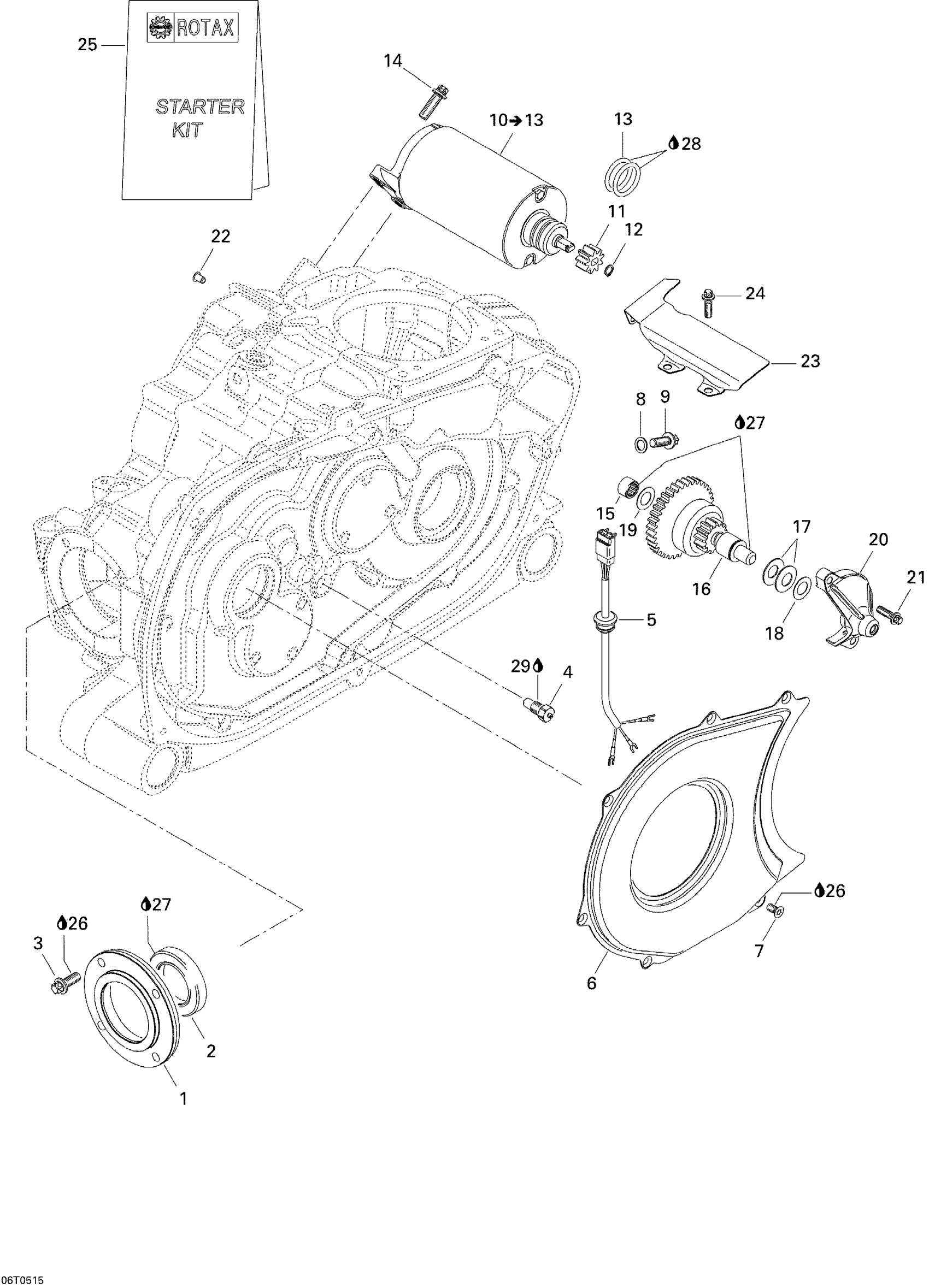

Can-Am Traxter Max CVT 650, 2005 Electric Starter Diagram

#

Description
Price

1

Bearing Cover

420610243

$55.35

2

Oil Seal

420650682

$18.43

3

Torx Flange Screw M8 X 25

420440372

$4.00

4

Position Switch

420241856

$35.14

5

Wiring Harness

420265831

$50.74

6

AIR GUIDE - Call your local BRP dealership

420610263

Unavailable

7

TAPTITE TORX SCREW M6 X 12 - Call your local BRP dealership

420241465

Unavailable

8

Sealing Ring

420950141

$1.64

9

Torx Flange Screw M8 X 25

420440372

$4.00

10

Electric Starter Ass'y | Includes 10 To 13

420888991

Unavailable

11

Starter Gear, 9 Teeth

420834522

$59.77

12

Retaining Ring

420845601

$3.73

13

O-ring

420250300

Unavailable

14

Torx Flange Screw M6 X 25

420440234

$3.00

15

Needle Bushing

420232482

$15.57

16

STARTER BENDIX KIT - Call your local BRP dealership

703500286

Unavailable

17

Spring Washer

420238300

$6.11

18

Thrust Washer

420827261

$6.18

19

THRUST WASHER - Call your local BRP dealership

420227450

Unavailable

20

GEAR COVER - Call your local BRP dealership

420610376

Unavailable

21

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

420640690

Unavailable

22

Plug

420860245

Unavailable

23

HEAT DEFLECTOR - Call your local BRP dealership

420251240

Unavailable

24

Torx Flange Screw M6 X 16

420440162

$3.11

25

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Grease, Super Lube

293550030

$24.67

28

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable
