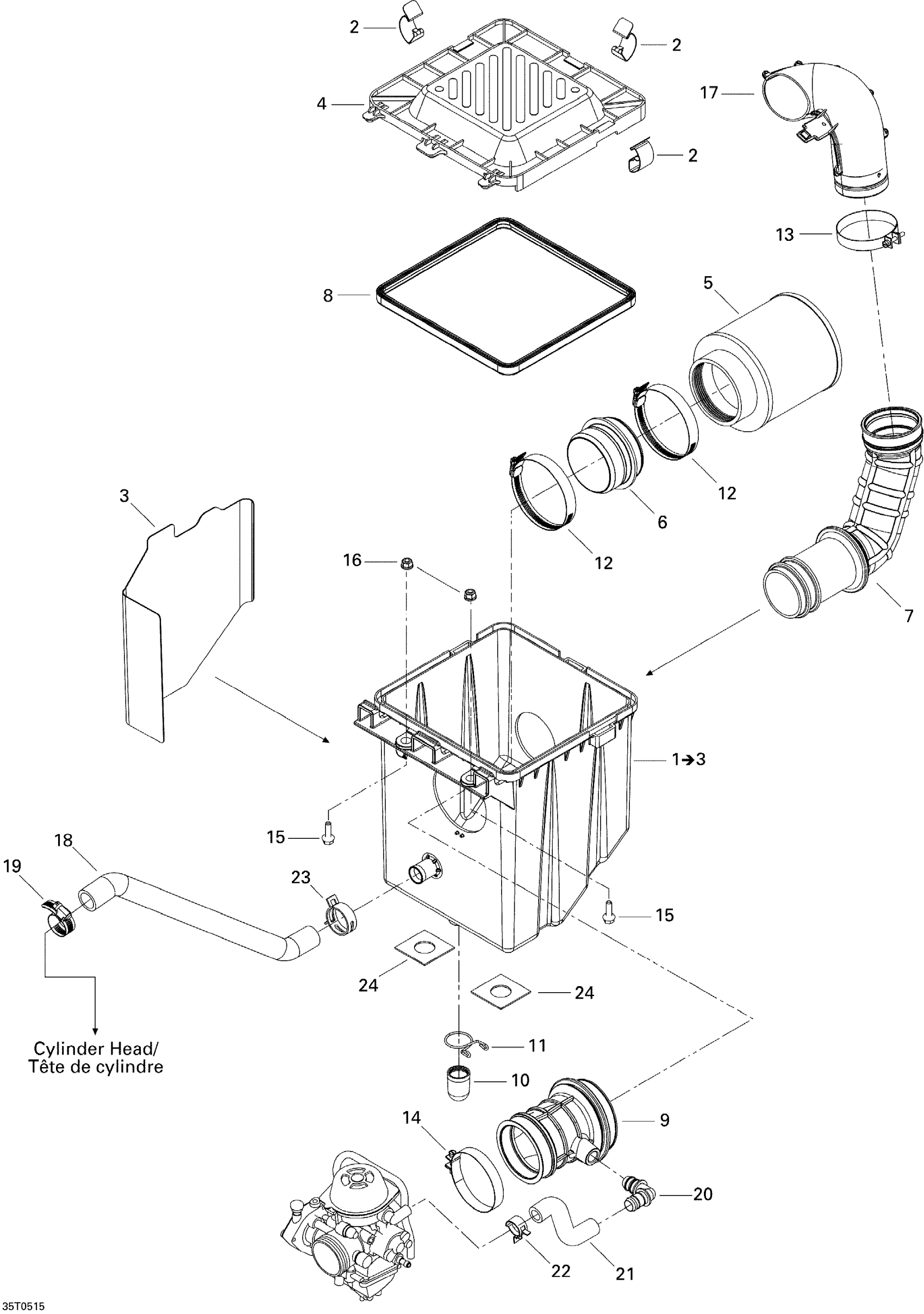

Can-Am Traxter Max CVT 650, 2005 Air Intake Diagram

#

Description
Price

1

Silencer Base Ass'y | Includes 2 to 4

707800190

Unavailable

2

Bracket Cover

707800079

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

707800083

$16.89

4

MUFFLER COVER - Call your local BRP dealership

707800158

$44.58

5

Air Filter

707800072

$34.58

6

Adaptor

707800077

Unavailable

7

Rear Intake Adaptor

707800195

Unavailable

8

OIL SEAL - Call your local BRP dealership

293250113

$13.05

9

Front Air-Intake

707800065

Unavailable

10

Drain Tube

707800080

$7.37

11

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

12

Tridon Clamp

293650179

$8.81

13

Gemi Clamp

293650158

$8.34

14

GEMI CLAMP - Call your local BRP dealership

293650159

$6.57

15

Hex. Flange Screw M6 X 20

207662044

$1.66

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Rear Hose Intake

707800133

Unavailable

18

Rear Vent Hose

707800165

Unavailable

19

Tridon Gear Clamp

293650173

$2.46

20

90 Fitting-Elbow

293710098

Unavailable

21

VENT HOSE - Call your local BRP dealership

707800132

$11.51

22

Norma Clamp

293650110

$4.38

23

Norma Spring Clamp

293650108

$4.00

24

Rubber Bumper

293830091

$8.29
