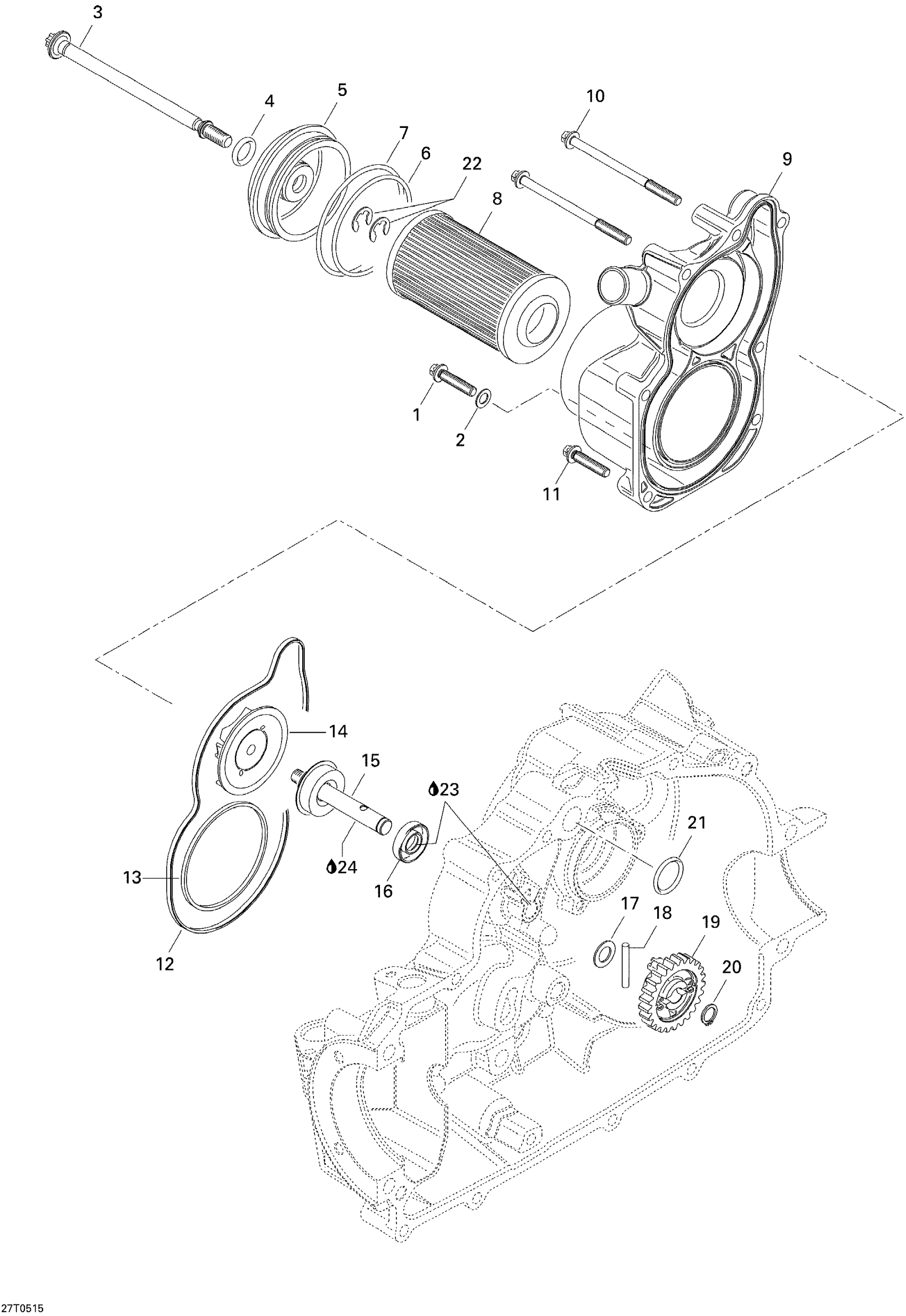

Can-Am Traxter Max CVT 650, 2005 Engine Cooling Diagram

#

Description
Price

1

Torx Flange Screw M6 X 35

420440274

$0.83

2

Sealing Washer

404146600

$0.72

3

Oil Filter Screw Kit

295501207

$32.47

4

O-Ring

420950860

$3.20

5

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

6

O-Ring

420230923

$2.59

7

O-Ring

420850500

$2.63

8

Oil Filter

420956741

$11.14

9

WATER PUMP HOUSING - Call your local BRP dealership

420222651

$100.74

10

Torx Flange Screw M6 X 85

420641228

$6.11

11

Torx Flange Screw M6 X 35

420440274

$0.83

12

GASKET - Call your local BRP dealership

420630100

Unavailable

13

GASKET - Call your local BRP dealership

420630170

$4.58

14

WATER IMPELLER - Call your local BRP dealership

420222540

Unavailable

15

Waterpump Shaft

420220827

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Thrust Washer

420827590

$3.86

18

Needle Pin

420232431

$3.67

19

Idle Gear, 25 Teeth

420635191

$16.89

20

Snap Ring

420245330

$1.43

21

Not Available As Spare Part - Friction Washer

Unavailable

22

RETAINING RING - Call your local BRP dealership

420845240

$2.28

23

Grease, Super Lube

293550030

$24.67

24

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
