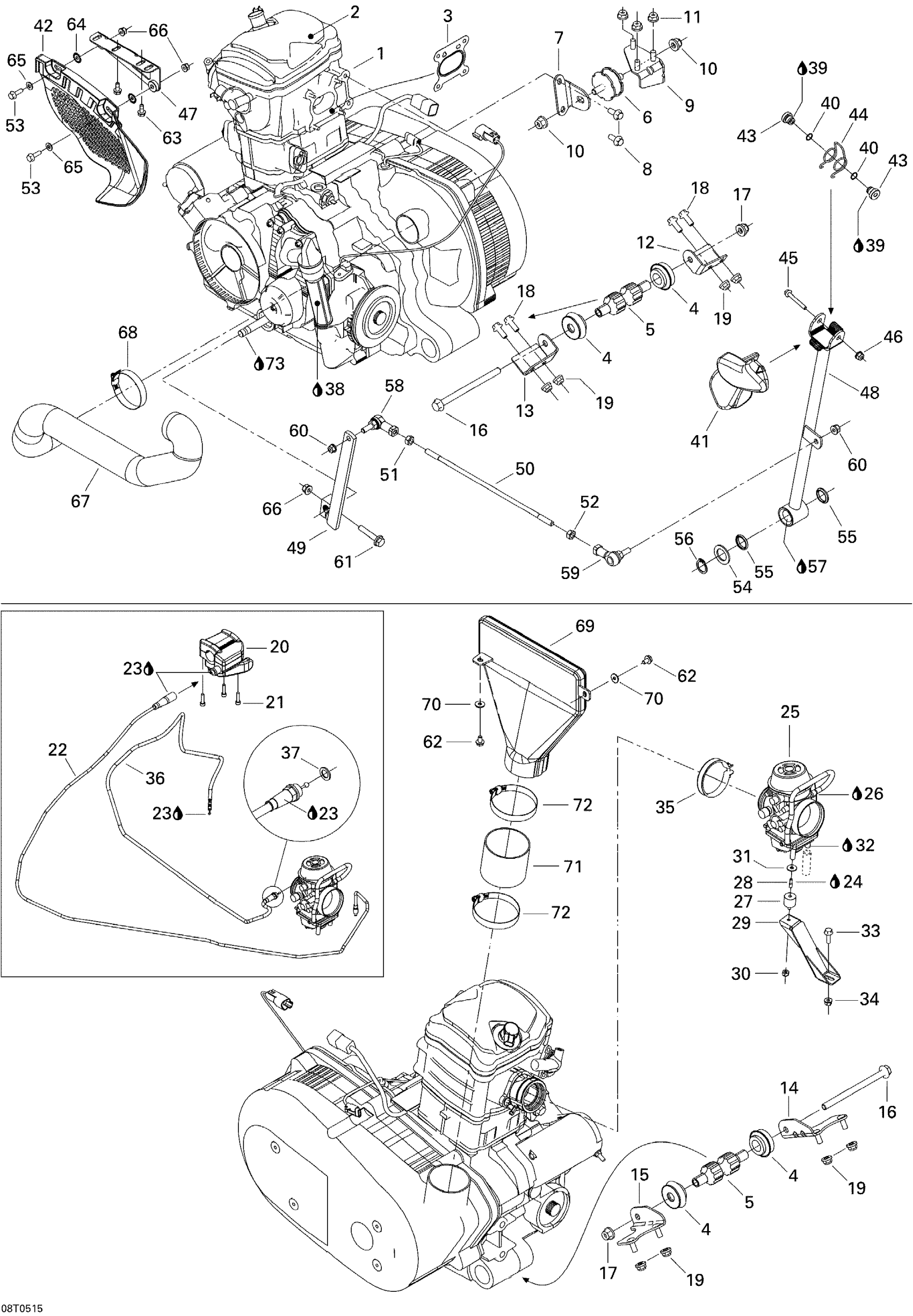

Can-Am Traxter Max CVT 650, 2005 Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 Stroke Engine «610» | Traxter 650 CVT, Includes 1 To 3

707000358

Unavailable

2

Valve Cover

420660201

$26.12

3

GASKET - Call your local BRP dealership

420950680

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

Unavailable

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

$11.51

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

$5.19

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Hex. Flange Screw M8 X 20

207682044

$0.92

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

THROTTLE HANDLE - Call your local BRP dealership | 2X4

707000370

Unavailable

21

Socket Head Screw M5 X 25

205052588

$1.56

22

THROTTLE CABLE - Call your local BRP dealership

707000311

Unavailable

23

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

24

Loctite 243, 10 ml

293800060

$20.77

25

CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT

707200186

Unavailable

26

Glue Tube, Loctite 454, 20 G

413708300

$59.97

27

Anti-vibration Mount

707000248

Unavailable

28

THREADED INSERT - Call your local BRP dealership

707000250

$11.51

29

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

30

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

$1.19

31

Washer | DS 650 X

391301600

$0.48

32

Glue Tube, Loctite 454, 20 G

413708300

$59.97

33

Hex. Flange Screw M6 X 20

207662044

$1.66

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

Gemi Clamp

293650157

Unavailable

36

Choke Cable

707000334

Unavailable

37

O-RING - Call your local BRP dealership

293300075

$5.35

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Synthetic Grease, 400 G

293550010

Unavailable

40

O-RING - Call your local BRP dealership

293300081

$5.68

41

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

42

Transmission Guide

707000139

Unavailable

43

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

44

LEVER SPRING - Call your local BRP dealership

705500283

$10.74

45

Hex. Flange Screw M6 X 50

207665044

$3.38

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

Guide Support, Black

707000297

Unavailable

48

LOWER LEVER, BLACK - Call your local BRP dealership

707000335

Unavailable

49

Lower Lever, Black

707000338

Unavailable

50

THREADED ROD - Call your local BRP dealership

707000343

$9.97

51

Hex. Nut M6

232061414

$0.44

52

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

53

Hex. Flange Screw M6 X 25

207662544

$0.53

54

WASHER - Call your local BRP dealership

503107800

$2.03

55

O-RING - Call your local BRP dealership

293300053

$5.35

56

CIRCLIP - Call your local BRP dealership

293370012

$2.99

57

Synthetic Grease, 400 G

293550010

Unavailable

58

RH BALL JOINT - Call your local BRP dealership

707000142

$34.58

59

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

61

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

62

Hex. Forming Screw M6 X 10

210261050

$1.42

63

Hex. Flange Screw M6 X 16

210261650

$1.22

64

Lock Washer Serrated M6

250200041

$0.92

65

Flat Washer

250200082

$0.35

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

67

Air Intake

707000332

Unavailable

68

Tridon Clamp

293650023

$11.72

69

Exhaust

707000153

Unavailable

70

Flat Washer

224061201

$1.11

71

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

72

Tridon Clamp

293650064

$7.80

73

Loctite 271, 10 ml

293800005

$20.77
