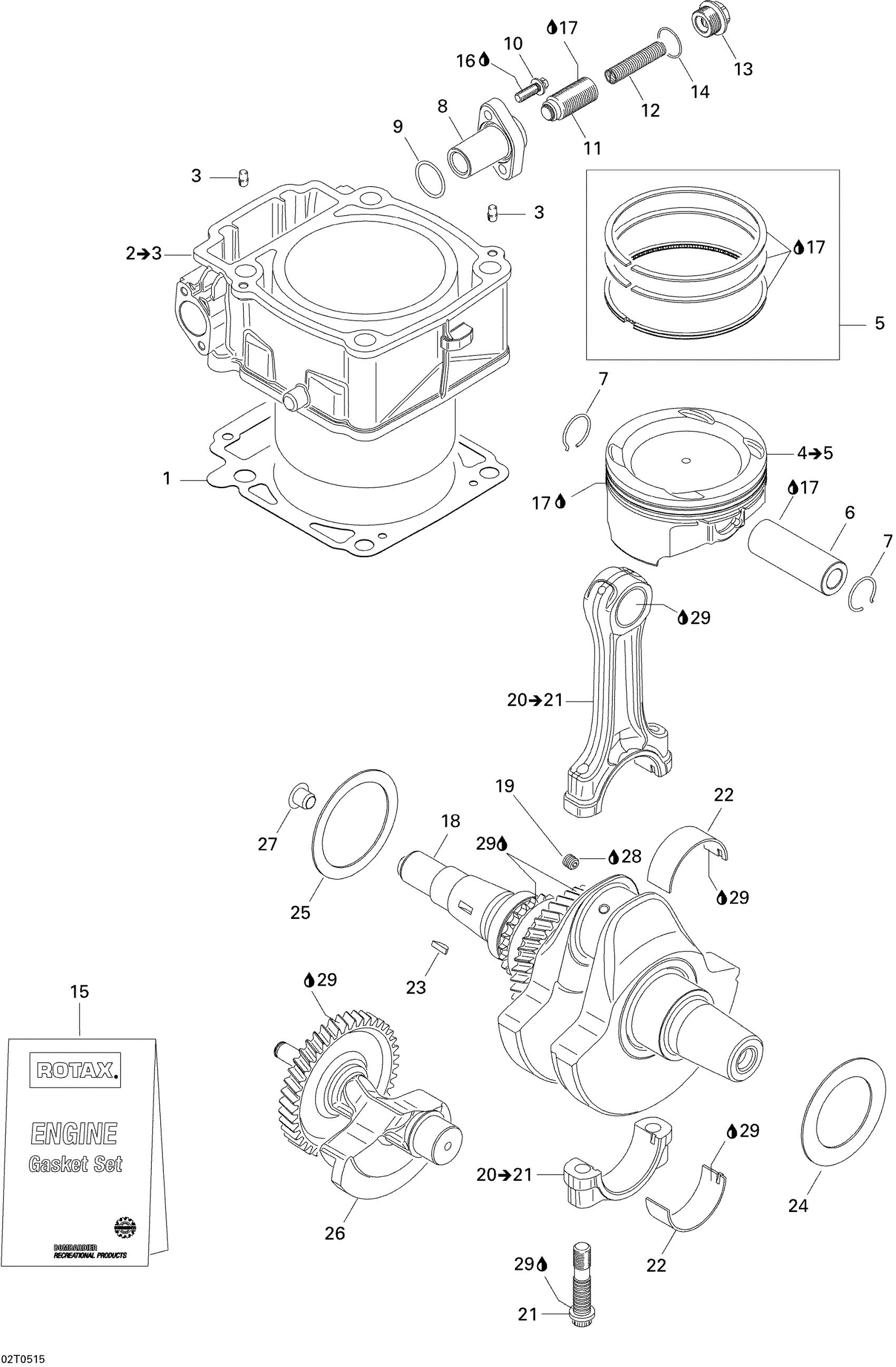

Can-Am Traxter Max CVT 650, 2005 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

Cylinder Ass'y | Includes 2 To 3

420923947

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

Piston Assy | Up to engine M6059518, Traxter 650 CVT, Includes 4 To 5

420890085

Unavailable

4

PISTON ASS'Y, 99.96 MM - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT, Includes 4 To 5

420890082

Unavailable

4

PISTON ASS'Y, OVERSIZE, 100.21 MM - Call your local BRP dealership | Traxter 650 CVT, Includes 4 To 5

420888868

Unavailable

5

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$58.47

5

PISTON RING SET - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT

420891124

Unavailable

5

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$63.67

6

Piston Pin

420216250

$21.42

7

Circlip

420845580

$2.13

8

Chain Tensioner Housing

420236510

$11.09

9

O-Ring

420430373

$2.63

10

Torx Flange Screw M6 X 25

420440234

$3.00

11

Chain Tensioner Plunger

420236521

$14.48

12

Spring

420238120

$7.23

13

Plug Screw

420641150

$7.23

14

O-Ring

420250890

$2.50

15

Engine Gasket Set

420684120

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

18

CRANKSHAFT ASS'Y - Call your local BRP dealership | Traxter 650 CVT

420296644

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

CONNECTING ROD - Call your local BRP dealership | Traxter 650 CVT, Includes 20 To 21

420917525

Unavailable

21

Connecting rod Screw M10 X 1

420640991

$9.37

22

Half-Bearing

420933523

$14.27

23

Woodruff Key 4 X 5

420246570

$3.29

24

SHIM - Call your local BRP dealership

420627363

Unavailable

25

Shim

420627502

Unavailable

26

BALANCING SHAFT - Call your local BRP dealership

420220785

Unavailable

27

PLUG - Call your local BRP dealership

420660300

Unavailable

28

Sealant Loctite 648

219703000

$35.72

29

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
