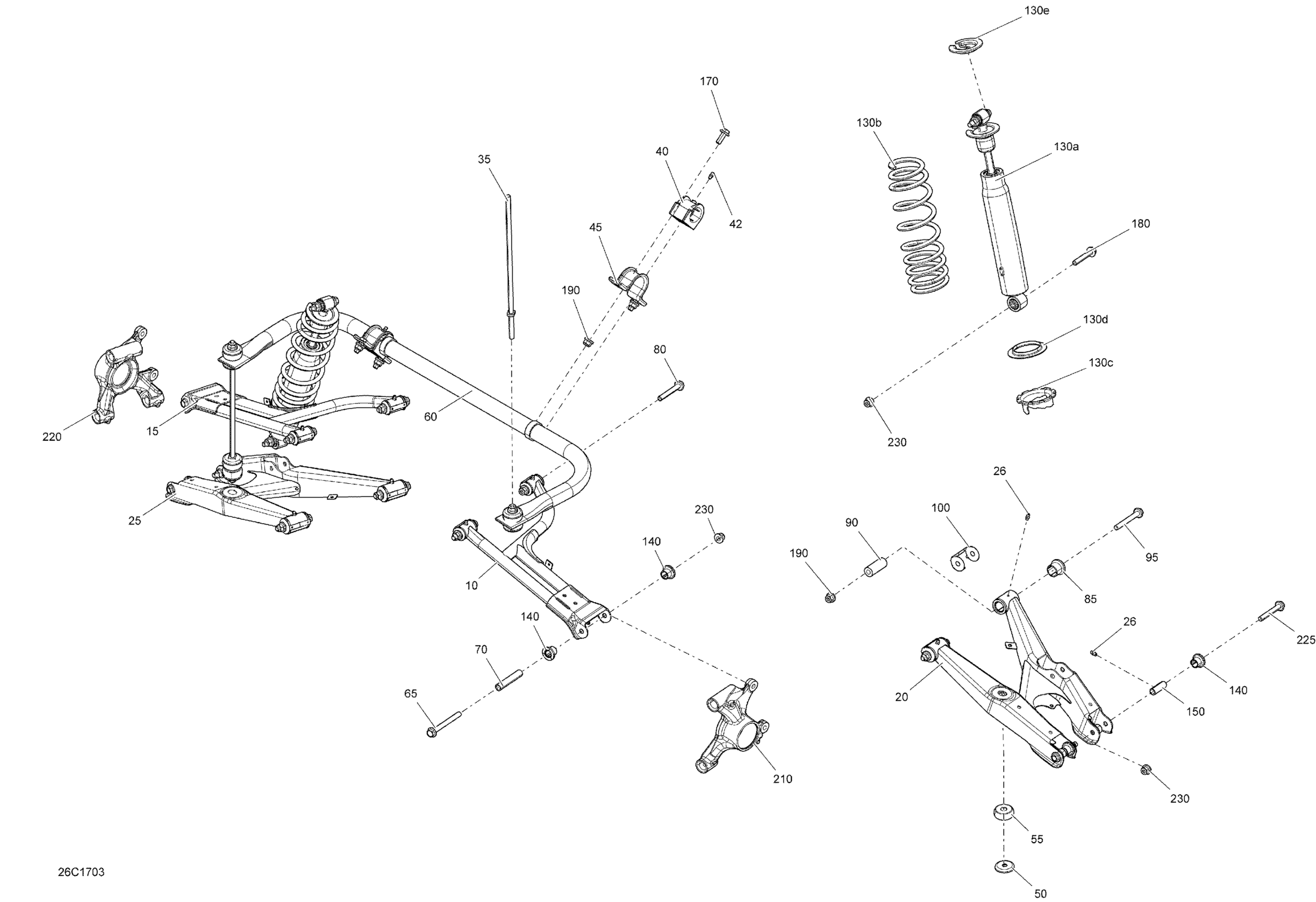

Can-Am Traxter MAX, 2017 Rear Suspension - All Models Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706004308

$184.58

15

Deep Black, RH Upper Suspension Arm

706004309

$184.58

20

Deep Black, LH Lower Suspension Arm

706003067

$152.28

25

Deep Black, RH Lower Suspension Arm

706003068

$184.58

26

Grease Fitting

408200700

$2.80

35

Torsion Bar Link

706001898

$16.89

40

Stabilizer Bar Bushing

706004301

$11.98

42

Grease Fitting

408200700

$2.80

45

Clamp

706002592

$6.45

50

Stamped Washer

706005431

$10.98

55

Linkage Bushing

706002028

$6.45

60

Sway Bar Ass'y

715005488

$124.58

65

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

70

Upper Bushing

706202197

$13.83

80

Hex. Flange Screw M10 X 70

207607046

$2.91

85

Suspension Arm Bushing

706204409

$8.29

90

Sleeve

706201590

$11.06

95

Hex Flange Screw M10 X 80

207608046

$4.46

100

Wear Plate

706201660

$0.89

130a

Rear Shock Absorber | Includes 130a to 130a1

706002485

$186.12

130b

Deep Black, Compression Spring

706005068

$96.89

130b

Deep Black, Compression Spring

706005068

$96.89

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130e

Spring Cup

706001894

$14.75

140

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

150

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

170

Hex. Flange Screw M10 X 25

207602544

$1.33

180

Hex. Flange Screw M10 X 6

207606046

$3.38

190

Hex. Flange Elastic Nut M10

233201436

$1.74

210

Rear Left Machined Knuckle

706002809

$203.05

220

Rear Right Machined Knuckle

706002811

$203.05

225

Hex. Flange Screw M10 X 70

207607046

$2.91

230

Hex. Flange Elastic Nut M10

233201436

$1.74
