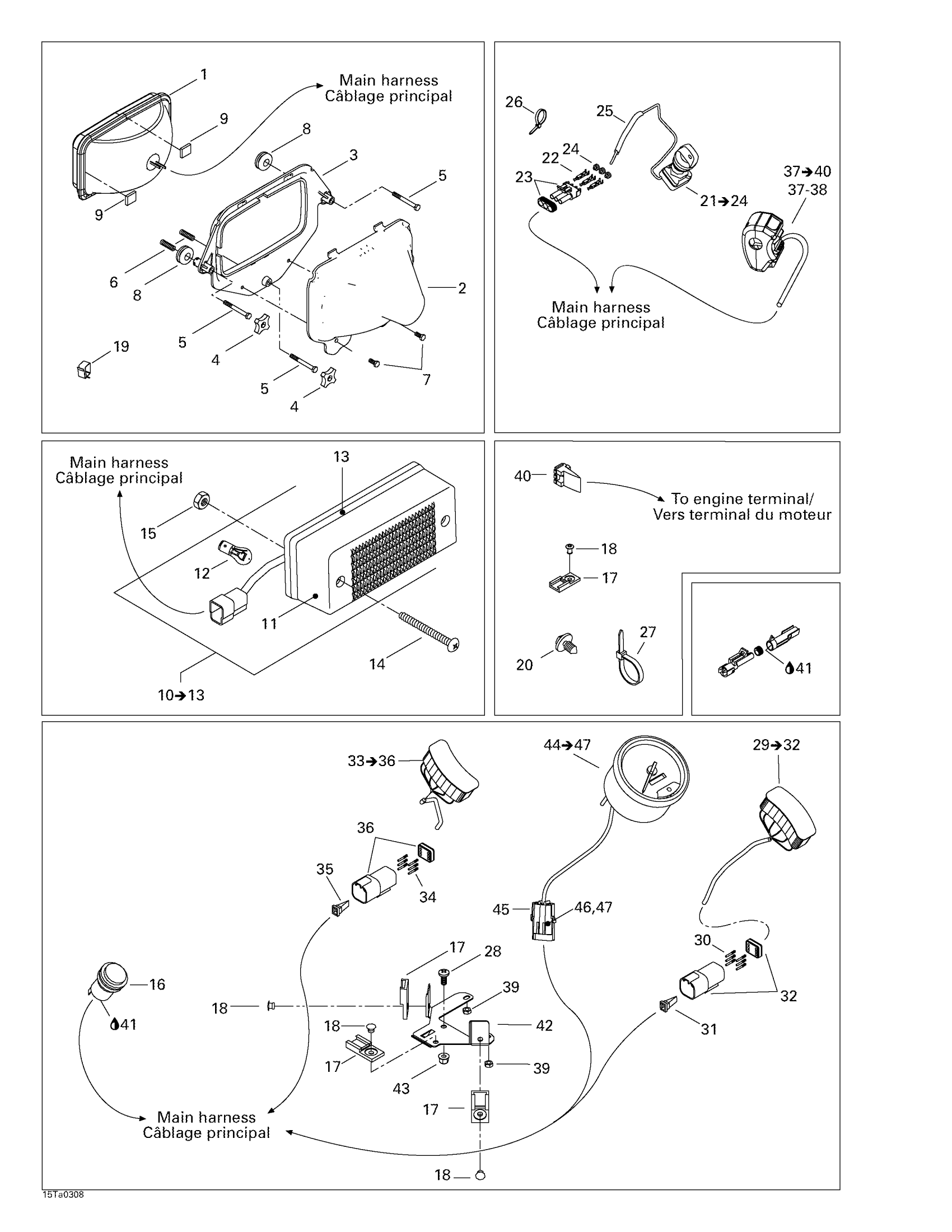

Can-Am Traxter Max, 2003 10- Electrical Accessories Diagram
#
1
HEADLAMP - Call your local BRP dealership
710000001
Unavailable
2
Protector
705000023
Unavailable
3
Head Lamp Support
705000474
Unavailable
4
Handle
572106600
Unavailable
5
HEX. SCREW K40 X 40 - Call your local BRP dealership
250000008
Unavailable
6
Spring
517168600
Unavailable
7
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
241641040
Unavailable
8
Grommet
709000582
Unavailable
9
Rubber Pad
293830088
Unavailable
10
Tail Light Housing
710000102
Unavailable
11
TAIL LIGHT LENS, RED - Call your local BRP dealership
710000055
Unavailable
12
Bulb
520000758
Unavailable
13
GASKET - Call your local BRP dealership
710000129
Unavailable
14
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
15
Hex. Flange Elastic Nut M5
233251414
Unavailable
16
Outlet Power Kit, 12 Volts
861507200
Unavailable
17
CLIP - Call your local BRP dealership
409014200
Unavailable
17
Clip
270000141
Unavailable
18
Pop Rivet 3/16"
390402400
Unavailable
19
Clip
414227300
Unavailable
20
Mount Dart
293730040
Unavailable
21
Ignition Switch Ass'y | Includes 24 - 27.
710000042
Unavailable
21
BLANK KEY (A TYPE) - Call your local BRP dealership
710000137
Unavailable
21
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
Unavailable
22
Female Terminal
278000223
Unavailable
23
Male Housing, 3 Circuits
278000273
Unavailable
24
Wire Seal
278000218
Unavailable
25
Protector Tube
710000171
Unavailable
26
Tie Wrap 142 mm
293750002
Unavailable
27
Tie Wrap 142 mm
293750002
Unavailable
27
Tie Wrap 368 mm
293750008
Unavailable
28
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208651241
Unavailable
29
RH Warning Lamp | Includes 29 - 32.
710000089
Unavailable
30
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
31
Male Lock, 6 Circuits
409014600
Unavailable
32
Male Terminal Housing, 6 Circuits
409015200
Unavailable
33
LH Warning Lamp
710000008
Unavailable
34
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
35
Male Lock, 6 Circuits
409014600
Unavailable
36
Male Terminal Housing, 6 Circuits
409015200
Unavailable
37
Multi-function Switch Ass'y | Includes 26 to 30
710000088
Unavailable
38
BACK COVER - Call your local BRP dealership
710000173
Unavailable
39
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership
211100051
Unavailable
40
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
41
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
42
Housing Support, Black
710000159
Unavailable
43
Elastic Stop Nut M5
232551414
Unavailable
44
Speedometer
710000328
Unavailable
45
Male Terminal Housing (3 Circuits)
278001479
Unavailable
46
Male Terminal | XT Models
278000222
Unavailable
47
Wire Seal
278000218
Unavailable
