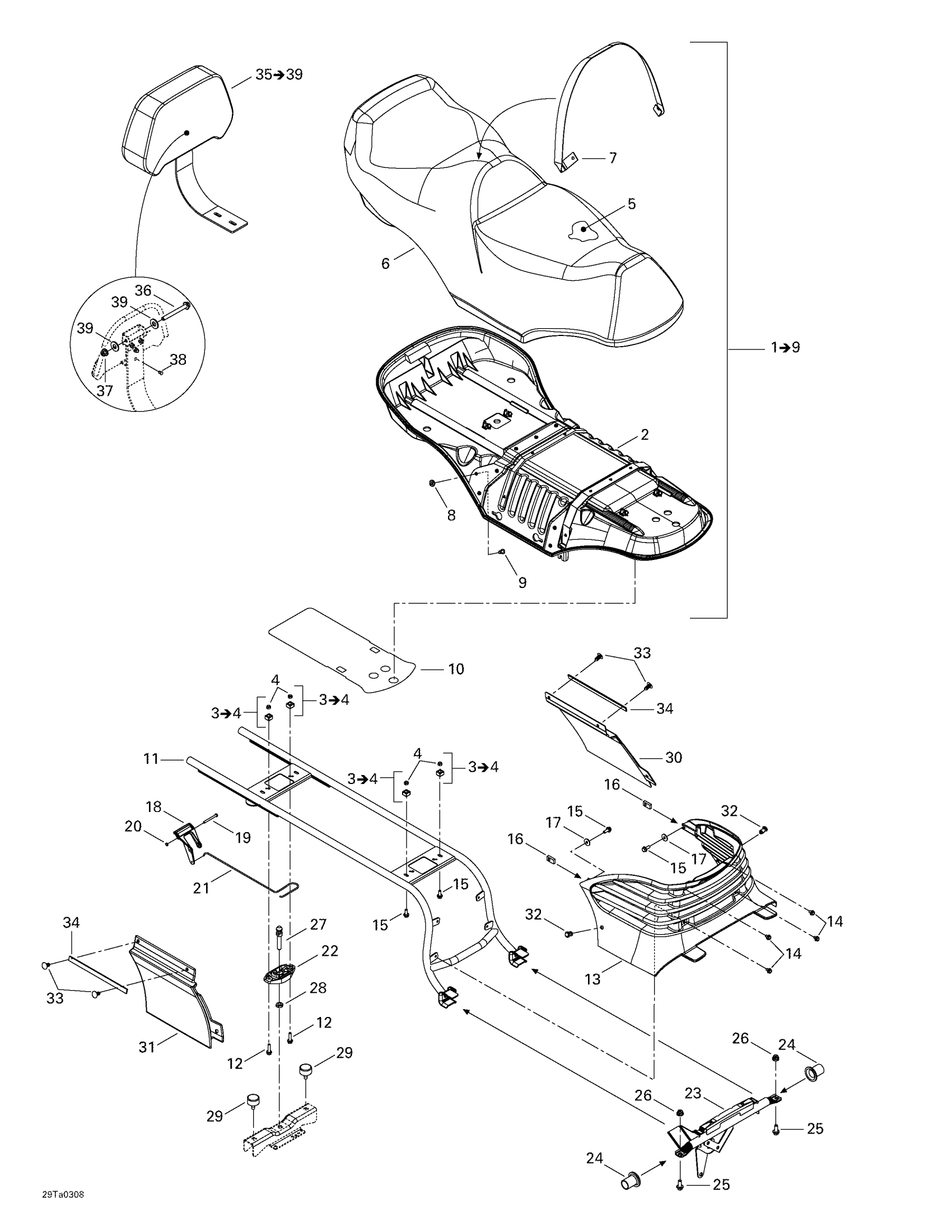

Can-Am Traxter Max, 2003 09- Seat Diagram
#
1
Seat ass'y | Includes 1 - 9.
708000165
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3
708000046
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Seat foam
708000171
Unavailable
6
Seat cover
708000172
Unavailable
7
Seat strap
708000200
Unavailable
8
Grommet
293720067
Unavailable
9
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
10
Reflective Sheet
708000029
Unavailable
11
Seat support
708000173
Unavailable
12
Hex. Flange Screw M6 X 25
207662544
Unavailable
13
Engine cover (grey)
705000707
Unavailable
14
Hex. Forming Screw M6 X 10
210261050
Unavailable
15
Hex. Flange Screw M6 X 16
207661644
Unavailable
16
Nut Housing M6
708000042
Unavailable
17
Flat Washer
224061201
Unavailable
18
Lever Latch
708000010
Unavailable
19
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership
293150062
Unavailable
20
Push Nut
389804300
Unavailable
21
SPRING - Call your local BRP dealership
708000015
Unavailable
22
Latch Base
708000034
Unavailable
23
Pivot seat
708000177
Unavailable
24
SEAT BUSHING - Call your local BRP dealership
708000019
Unavailable
25
Hex. Flange Screw M8 X 20
207682044
Unavailable
26
Hex. Flange Elastic Nut M8
233281414
Unavailable
27
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
28
Hex. Jam Nut M10
232100600
Unavailable
29
Rubber Stopper
708000758
Unavailable
30
LH Panel | STD, Viper Red
705000669
Unavailable
31
RH PANEL - Call your local BRP dealership | STD, Viper Red
705000670
Unavailable
32
Tuflok Plastic Rivet
293150230
Unavailable
33
Black Dart
293730010
Unavailable
34
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
35
Backrest ass'y | Includes 35 - 39.
708000190
Unavailable
36
Hex. Screw M8 X 95
207089544
Unavailable
37
Hex. Flange Elastic Nut M8
233281414
Unavailable
38
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
39
Hardened Washer
706200281
Unavailable
