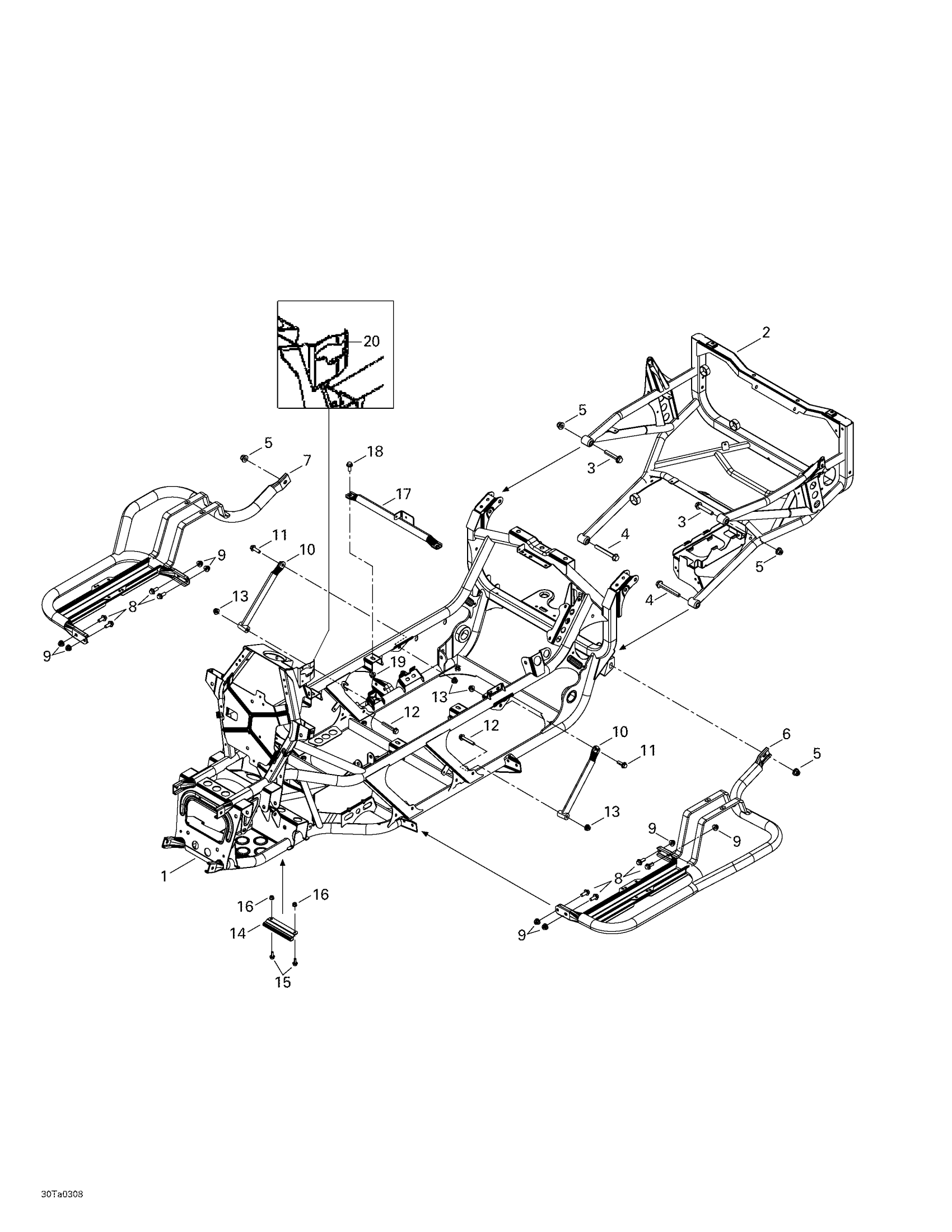

Can-Am Traxter Max, 2003 09- Frame Diagram
#
Description
Price
1
Frame (black)
705200634
Unavailable
2
Frame Extension, Black
705200546
Unavailable
3
Hex. Flange Screw M10 X 55
207605544
Unavailable
4
HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership
207608044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
LH Footrest, Black
705200635
Unavailable
7
RH Footrest, Black
705200653
Unavailable
8
Hex. Flange Screw M8 X 20
207682044
Unavailable
9
Hex. Flange Elastic Nut M8
233281414
Unavailable
10
Removable Brace, Black
705200143
Unavailable
11
Hex. Flange Screw M8 X 25
207682544
Unavailable
12
Hex. Flange Screw M8 X 50
207685044
Unavailable
13
Hex. Flange Elastic Nut M8
233281414
Unavailable
14
Bracket, Black
705200575
Unavailable
15
Hex. Flange Screw M6 X 16
207661644
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Removable axe
705200667
Unavailable
18
Hex. Flange Screw M8 X 20
207682044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Shift Patern
705200351
Unavailable
