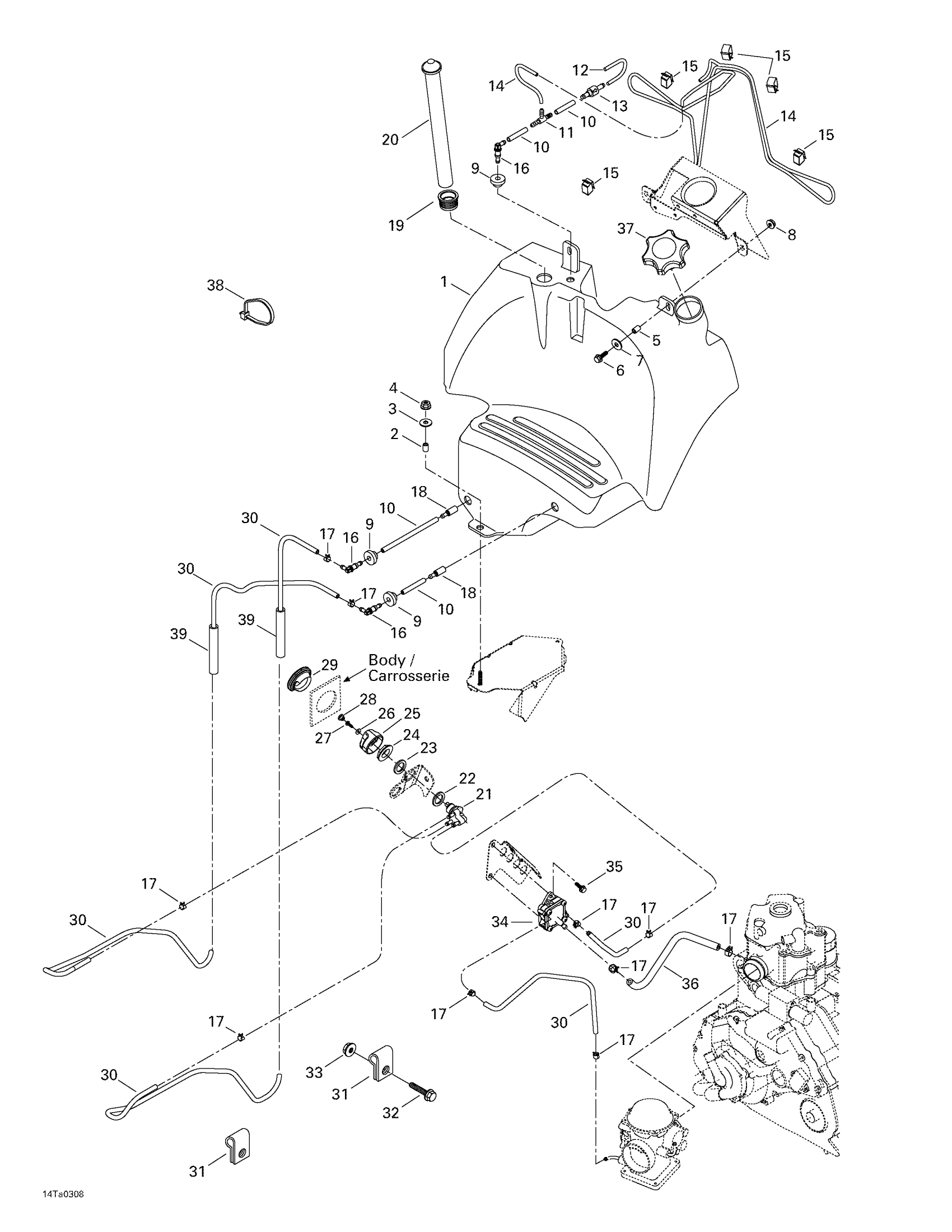

Can-Am Traxter Max, 2003 02- Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000025

Unavailable

2

Bushing

293900028

Unavailable

3

Flat Washer 8 mm

234082410

Unavailable

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Bushing | DS 650 X

293900104

Unavailable

6

Hex. Flange Screw M6 X 25

207662544

Unavailable

7

Flat Washer

224061201

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Grommet

570045500

Unavailable

10

Polyurethane Hose 10000Mm Long

219704410

Unavailable

11

T-fitting

414222500

Unavailable

12

VENT HOSE - Call your local BRP dealership

709000029

Unavailable

13

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

14

VENT HOSE - Call your local BRP dealership

709000031

Unavailable

15

Clip

414227300

Unavailable

16

Elbow Male Connector

414580600

Unavailable

17

Spring Clamp

414415200

Unavailable

18

Fuel Filter

414865700

Unavailable

19

Grommet

293720058

Unavailable

20

Fuel gauge

709000033

Unavailable

21

Fuel Valve

275500098

Unavailable

22

GASKET - Call your local BRP dealership

293250004

Unavailable

23

Washer

250200015

Unavailable

24

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

25

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

26

Flat Washer 4 mm

234040600

Unavailable

27

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

28

Black, Cap

275500241

Unavailable

29

Fuel Valve Grommet

709000005

Unavailable

30

Hose

219704549

Unavailable

31

Open Clamp

709000057

Unavailable

32

Hex. Flange Screw M8 X 25

207682544

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

35

Hex. Flange Screw M6 X 10

210261040

Unavailable

36

HOSE - Call your local BRP dealership

709000024

Unavailable

37

Fuel Tank Cap

513033025

Unavailable

38

Tie Wrap 142 mm

293750002

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

39

Was 409901800 Tubing (13 mm)

219704400

Unavailable
