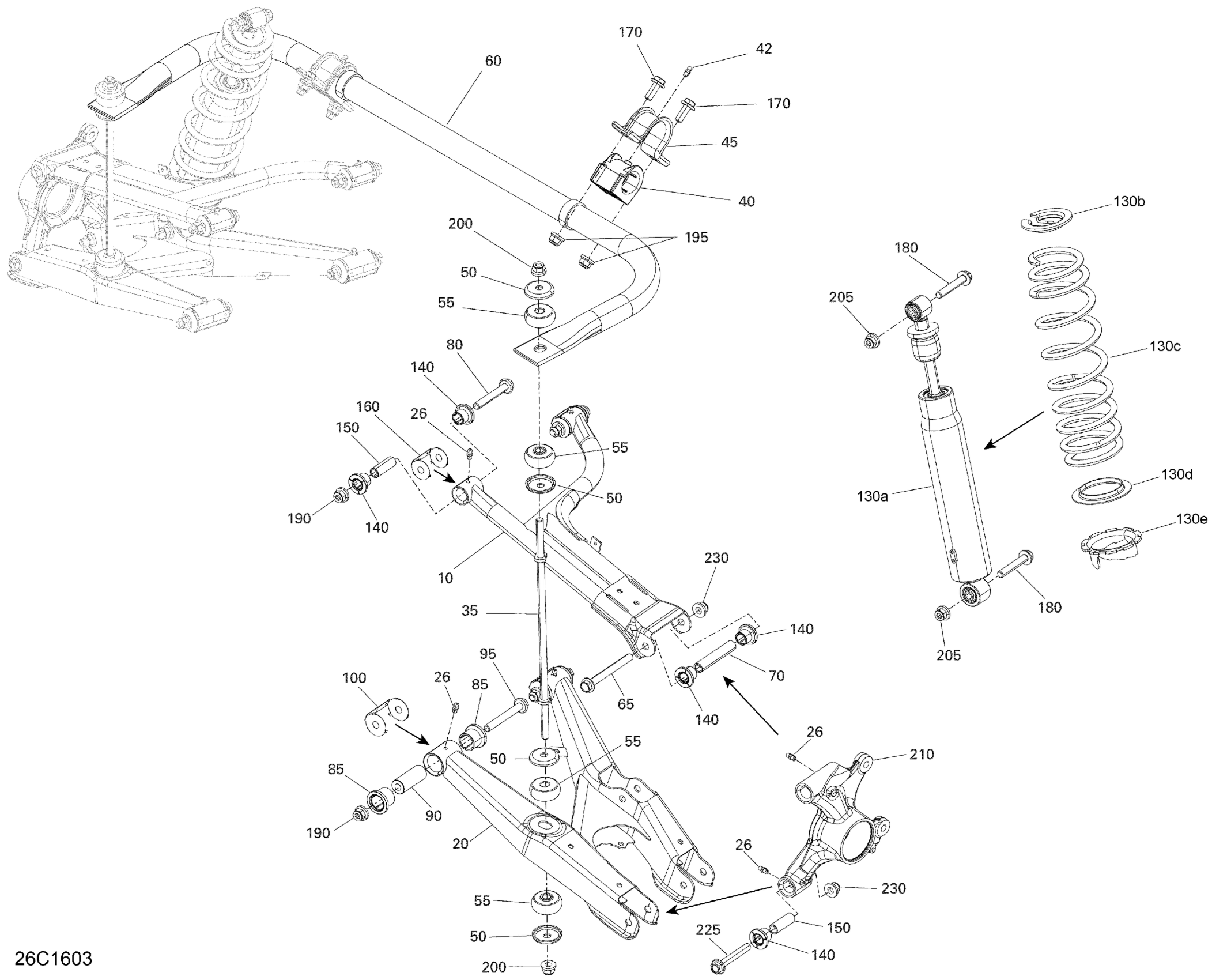

Can-Am Traxter HD8, 2016 Rear Suspension Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706004308

$190.99

10

Deep Black, RH Upper Suspension Arm

706004309

$190.99

20

Deep Black, LH Lower Suspension Arm

706003067

$164.49

20

Deep Black, RH Lower Suspension Arm

706003068

$190.99

26

Grease Fitting

408200700

$3.49

35

Torsion Bar Link

706001898

$19.99

40

Stabilizer Bar Bushing

706004301

$8.04

42

Grease Fitting

408200700

$3.49

45

Clamp

706002592

$6.67

50

Stamped Washer

706005431

$12.99

55

Linkage Bushing

706002028

$7.34

60

Sway Bar Ass'y

715005488

$126.99

65

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

70

Upper Bushing

706202197

$15.82

80

Hex. Flange Screw M10 X 70

207607046

$2.96

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

100

Wear Plate

706201660

$0.95

130a

Rear Shock Absorber | Includes 130a to 130a1

706002485

$195.99

130b

Spring Cup

706001894

$15.49

130c

Black Spring | Engine HD8 Except P-XT

706002359

$100.49

130d

Protector Ring | STD, XT

706000911

$13.99

130e

Adjustment Ring

706000910

$16.49

140

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

150

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

160

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

170

Hex. Flange Screw M10 X 25

207602544

$1.69

180

Hex. Flange Screw M10 X 6

207606046

$4.12

190

Hex. Flange Elastic Nut M10

233201436

$2.11

195

Hex. Flange Elastic Nut M10

233201436

$2.11

200

Hex. Flange Elastic Nut M10

233201436

$2.11

205

Hex. Flange Elastic Nut M10

233201436

$2.11

210

Rear Left Machined Knuckle

706002809

$206.49

210

Rear Right Machined Knuckle

706002811

$206.49

225

Hex. Flange Screw M10 X 70

207607046

$2.96

230

Hex. Flange Elastic Nut M10

233201436

$2.11
