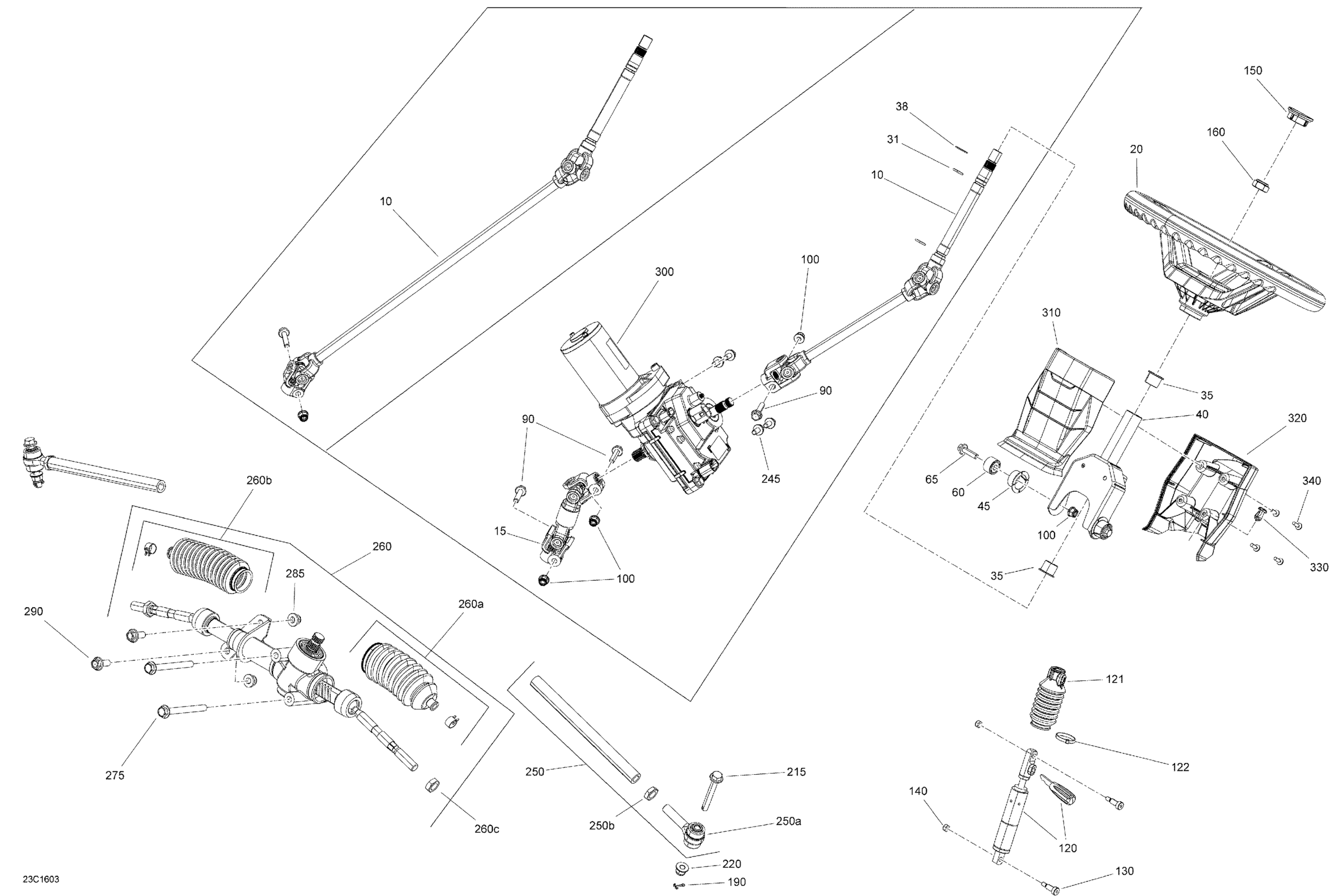

Can-Am Traxter HD8, 2016 Steering Diagram

#

Description
Price

10

Steering Column

709402491

$194.99

10

Steering shaft Ass'y | Model With DPS

709401440

$194.99

15

Lower Steering Column

709402996

$199.99

20

Steering Wheel

709401513

$519.49

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

38

Circlip

293370110

$2.61

40

Steering Support

709401602

$83.99

45

Bushing

709401603

$8.85

60

Bushing

709401604

$5.89

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

90

Hex. Flange Screw M8 X 35

207683544

$1.69

90

Hex. Flange Screw M8 X 35

207683544

$1.69

100

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Hex. Flange Elastic Nut M8

233281414

$1.47

120

Adjustment Cylinder

709402506

$72.99

121

Boot Tube Side

709401232

$18.99

122

Tie-Rap 180 mm

414115200

$0.11

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561414

$0.55

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.00

190

Cotter Pin

211400017

$0.33

215

Screw Hex Cap M10 X 75

250000814

$4.76

220

Hex. Flange Elastic Nut M10

233201414

$1.58

245

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

250>250b

Tie Rod Ass'y | Includes 250 to 250b

709401627

$68.99

250a

Ball Joint

709401601

$52.99

250b

Steering Rod Nut

715900238

$2.30

260>260c

Steering Rack And Pinion | Includes 260 to 260d

709402317

$402.49

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Steering Rod Nut

715900238

$2.30

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

285

Hex. Flange Elastic Nut M10

233201436

$2.11

290

Hex. Flange Screw M10 X 25

207602546

$2.11

300

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$999.49

310

Steering Box Cover

707900401

$13.99

320

Steering Box Cover

707900406

$13.99

330

Tuflok Plastic Rivet

293150230

$1.47

340

Torx Screw K50 X 16

250000720

$1.69
