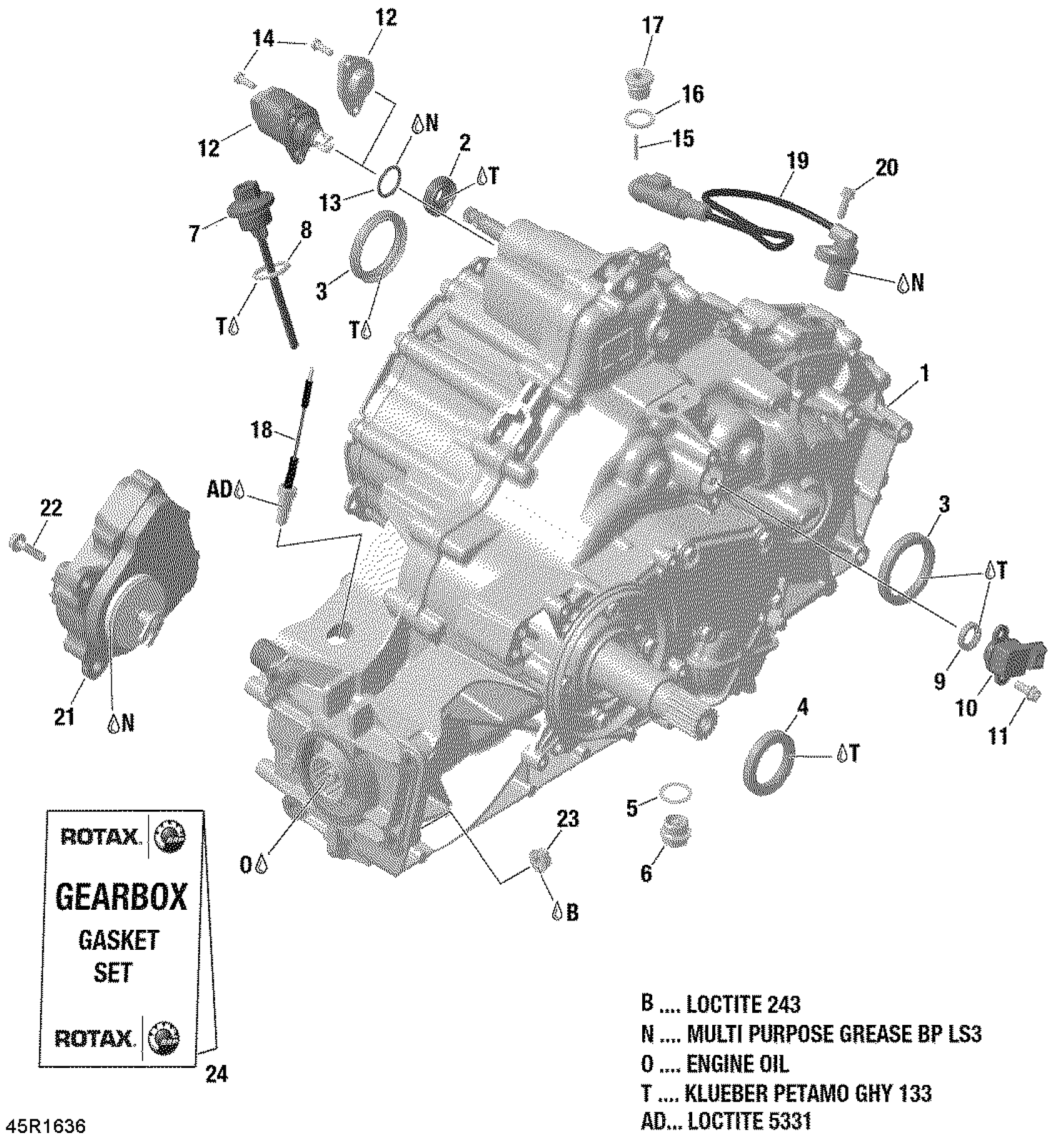

Can-Am Traxter HD8, 2016 Gear Box Assembly - All Models Diagram

#

Description
Price

1>19

Kit Gear Box | With Lockable Rear Differential

703501186

$3,299.99

1>19

Kit Gear Box | With Lockable Rear Differential

703501140

$3,299.99

1>19

Gear Box Ass'y | Without Lockable Rear Differential

420686756

$3,299.99

1>19

Kit Gear Box | Without Lockable Rear Differential

703501141

$3,299.99

2

Oil Seal

420250452

$16.39

3

Oil Seal | Included in gasket set gearbox

420230137

$21.61

4

Oil Seal

420950089

$17.88

5

Crush Washer

420552280

$3.43

6

Drain Plug M18 X 1.5

420840278

$22.36

7

Oil Dipstick

420256806

$15.64

8

O-Ring

420631640

$2.00

9

Oil Seal

420931802

$6.07

10

Angle Rotation Sensor

420666850

$184.30

11

Torx Flange Screw M6 X 16

420440162

$3.01

12

Servomotor | With Lockable Rear Differential

420265842

$205.94

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Allen Screw M5 X 14

420240150

$1.67

14

Retaining Ring

420945470

$5.10

15

Needle Pin

420932840

$3.00

16

O-Ring

420430622

$4.15

17

Plug Screw M16 X 1.5

420240234

$13.18

18

3 Position Switch

420640192

$36.54

19

Camshft Position Sensor Ass'y

420265727

$104.45

20

Torx Flange Screw M6 X 16

420440162

$3.01

21

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$253.70

21a

O-Ring

293300117

$4.15

21b

Shifting Fork

415129175

$13.58

21c

Circlip | 4X4

293370042

$3.01

22

Collar Screw M6 x 25

420441951

$1.67

23

Hex. Nut M8

420842619

$2.46

24

Not Available As Spare Part - Friction Washer

Unavailable
