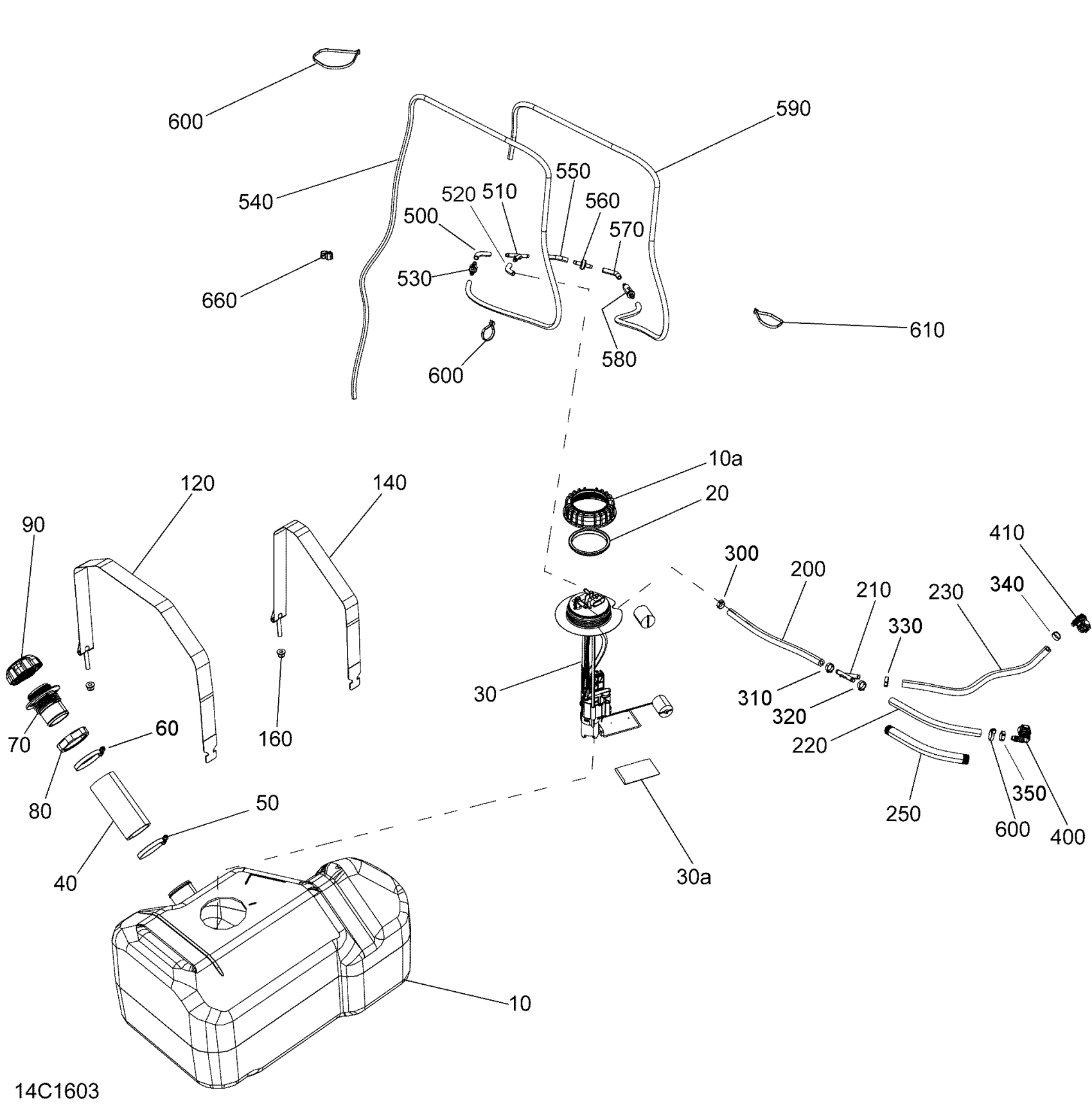

Can-Am Traxter HD8, 2016 Fuel System Diagram

#

Description
Price

10>10a

Fuel Tank

709000591

$286.12

10a

Fuel Pump Module Nut

709000328

$12.82

20

Seal

709000208

$12.54

30>30a

Fuel Pump | Includes 30 to 30a

709001189

$313.49

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

40

Hose Filler Neck

709000595

$32.28

50

Norma Clamp

293650081

$9.87

60

Norma Clamp

293650081

$9.87

70

Filler Neck

709000725

$17.66

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

513033816

$32.28

120

Fuel Tank Strap

709000521

$41.51

140

Fuel Tank Strap

709000648

$41.51

160

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Was 709000163 Fuel Line

219704440

$108.43

210

Y-Fitting, 5/16''

293710136

$6.45

220

Was 709000163 Fuel Line

219704440

$108.43

230

Was 709000163 Fuel Line

219704440

$108.43

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Attach 90°

275500700

$12.61

410

Quick Attach 90°

275500700

$12.61

500

Polyurethane Hose 10000Mm Long

219704410

$46.12

510

Y-Fitting

293710059

$8.19

520

Polyurethane Hose 10000Mm Long

219704410

$46.12

530

Check Valve

513033469

$25.32

540

Polyurethane Hose 10000Mm Long

219704410

$46.12

550

Polyurethane Hose 10000Mm Long

219704410

$46.12

560

Check Valve

275500398

$8.57

570

Polyurethane Hose 10000Mm Long

219704410

$46.12

580

Filter

709000330

$8.29

590

Polyurethane Hose 10000Mm Long

219704410

$46.12

600

Tie Wrap 368 mm

293750008

$0.85

660

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45
