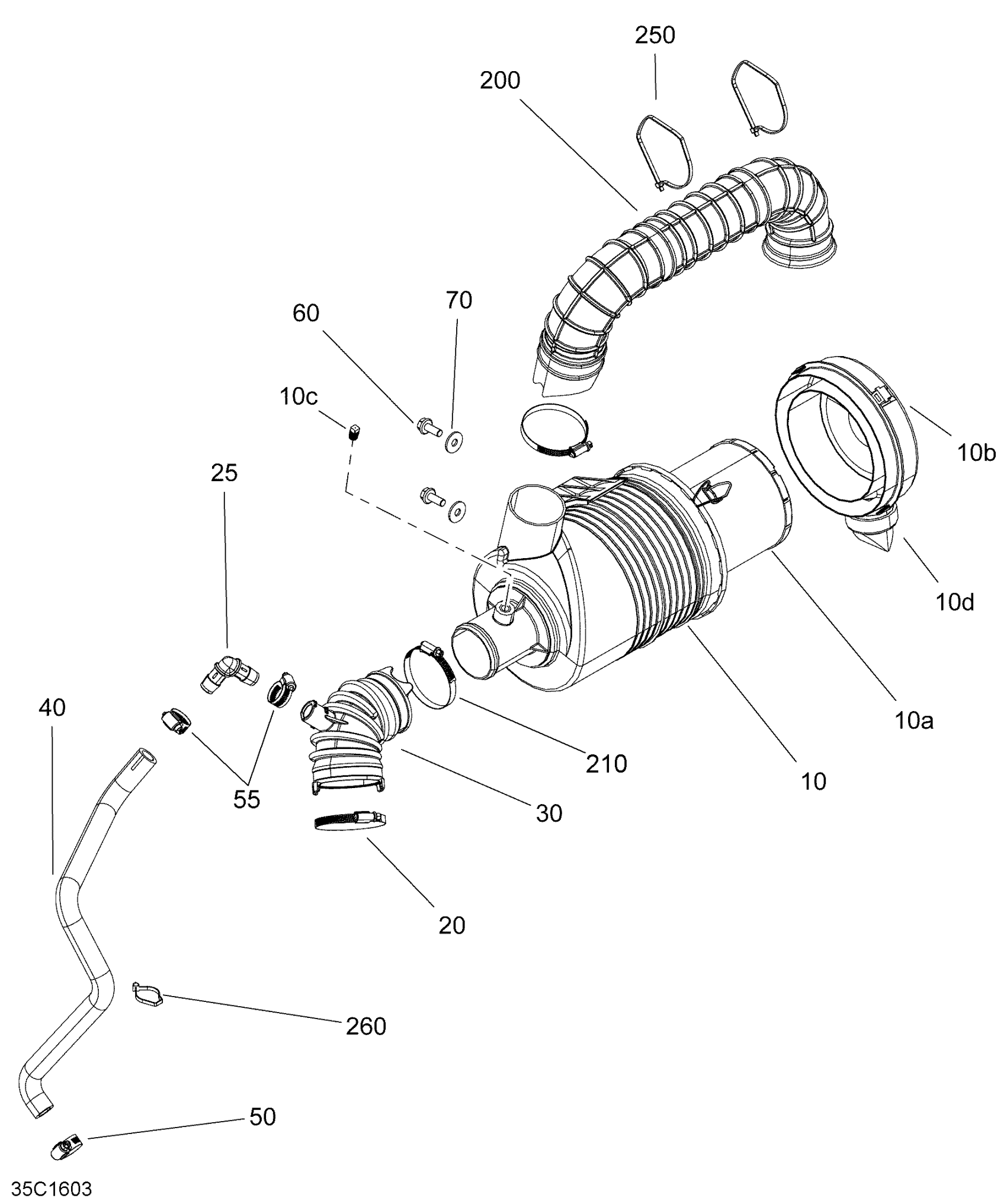

Can-Am Traxter HD8, 2016 Air Intake Diagram

#

Description
Price

10>10d

Air Intake Ass'y

707800614

$189.99

10a

Air Filter

715900394

$52.99

10b

Air Intake Cover

715900397

$93.99

10c

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

10d

Duct Bill Valve

715003114

$13.49

20

Norma Clamp

293650091

$11.12

25

Elbow Fitting 90

293710155

$9.39

30

Engine Air Inlet Tube

707800651

$22.49

40

Crankcase Hose Vent

707800655

$51.99

50

Tridon Gear Clamp

293650173

$3.09

55

Tridon Gear Clamp

293650173

$3.09

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Flat Washer 8 mm

234082410

$1.47

200

Air Inlet Tube

707800752

$43.99

210

Norma Clamp

293650091

$11.12

250

Tie Wrap 368 mm

293750008

$1.04

260

Tie-Rap 180 mm

414115200

$0.11
