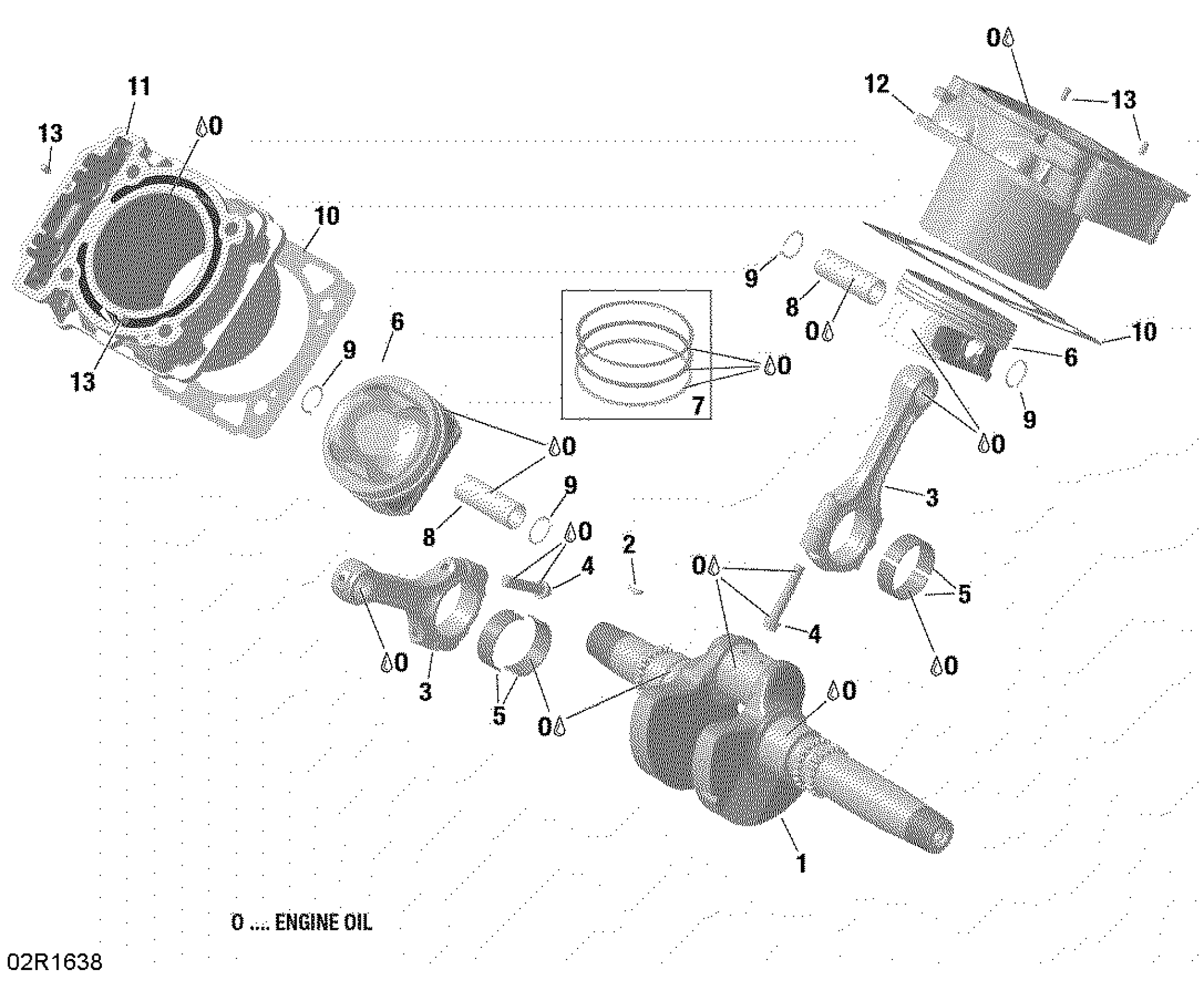

Can-Am Traxter HD8, 2016 Crankshaft, Piston And Cylinder - HD8 Diagram

#

Description

Price

1

Crankshaft

420481231

$809.97

2

Woodruff Key 4 X 5

420246570

$3.29

3>4

Connecting Rod Ass’y | Includes 3 to 4

420217425

$223.24

4

Connecting Rod Screw M8 X 1

420641645

$13.58

5

Plain Bearing 40 X 43 X 15

420233980

$26.89

6>7

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$156.74

7

Piston Ring Set | 400HO

420296774

$81.99

8

Piston Pin

420216270

$26.69

9

Piston Circlip

420845107

$4.33

10

Gasket

420630210

$12.34

11

Cylinder With Sleeve

420413434

$402.97

12

Cylinder With Sleeve

420413434

$402.97

13

Drive Pin 5 X 10

420929650

$1.34
