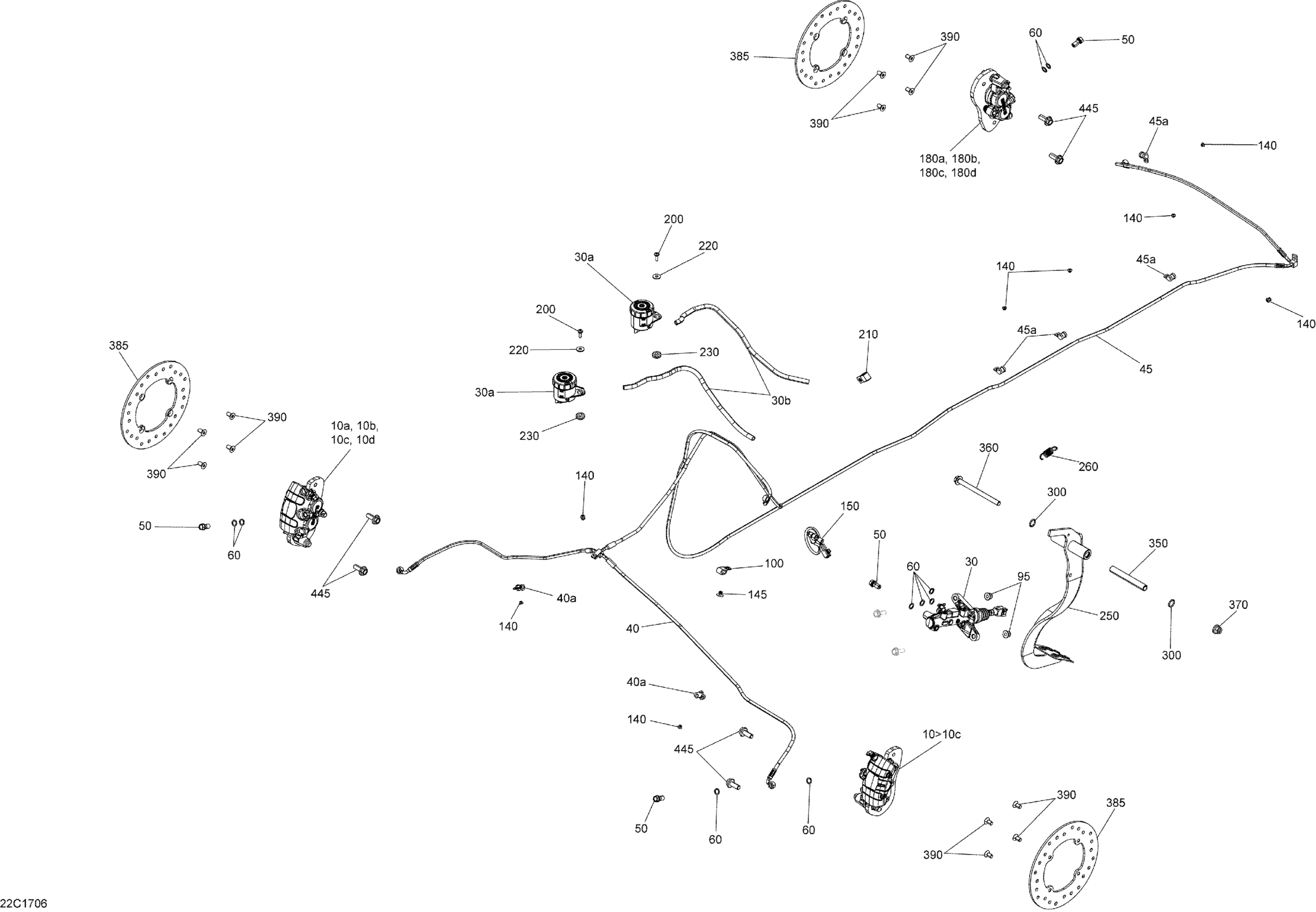

Can-Am Traxter HD5, 2017 Brakes Diagram

#

Description
Price

10>10c

LH Front Brake Caliper | Includes 10 to 10c

705602180

$223.85

10>10c

RH Front Brake Caliper | RH Front

705601888

$223.85

10a

LH Brake Pads

715900379

$108.18

10a

RH Brake Pads

715900380

$108.18

10a1

Pin Kit | Packages STD & PRO

715900384

$10.30

10b

Bleeding Screw

705601017

$5.90

10c

Cap Spring Kit

715900385

$16.39

30>30b

Master Cylinder

705601863

$256.69

30a

Oil Tank

705601020

$35.79

30b

Oil Housing Hose

705601019

$14.43

40>40a

Brake Hose

705601623

$136.54

40a

Clamp

293650256

$5.00

45>45a

Brake Hose | Includes 45 to 45a

705601540

$186.54

45a

Clamp

293650256

$5.00

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Copper Washer

705601628

$4.21

95

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Clamp

293650220

$0.81

140

Pop Rivet 3/16"

390402200

$0.30

145

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

150

Brake Switch

705601250

$55.19

180>180d

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$204.45

180a

RH Brake Pads

715900380

$108.18

180a1

Pin Kit | Packages STD & PRO

715900384

$10.30

180b

Bleeding Screw

705601017

$5.90

180c

Pin Kit | Packages STD & PRO

715900384

$10.30

180d

Cap Spring Kit

715900385

$16.39

200

Torx Screw K50 X 16

250000720

$1.60

210

Open Clamp

515175507

$1.69

220

Flat Washer 6 mm

234062410

$0.73

230

Grommet

414036300

$2.55

250

Brake Pedal | Includes 250 to 250a

705601777

$51.46

260

Brake Pedal Spring

705600792

$8.42

300

O-Ring

293300144

$3.79

350

Inside Sleeve

705601373

$10.12

360

Hex. Flange Screw, M10 X 130

230603046

$6.99

370

Hex. Flange Elastic Nut M10

233201436

$2.00

385

Brake Disc

705601511

$101.46

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

445

Hex. Flange Screw M10 X 25

207502546

$2.00
