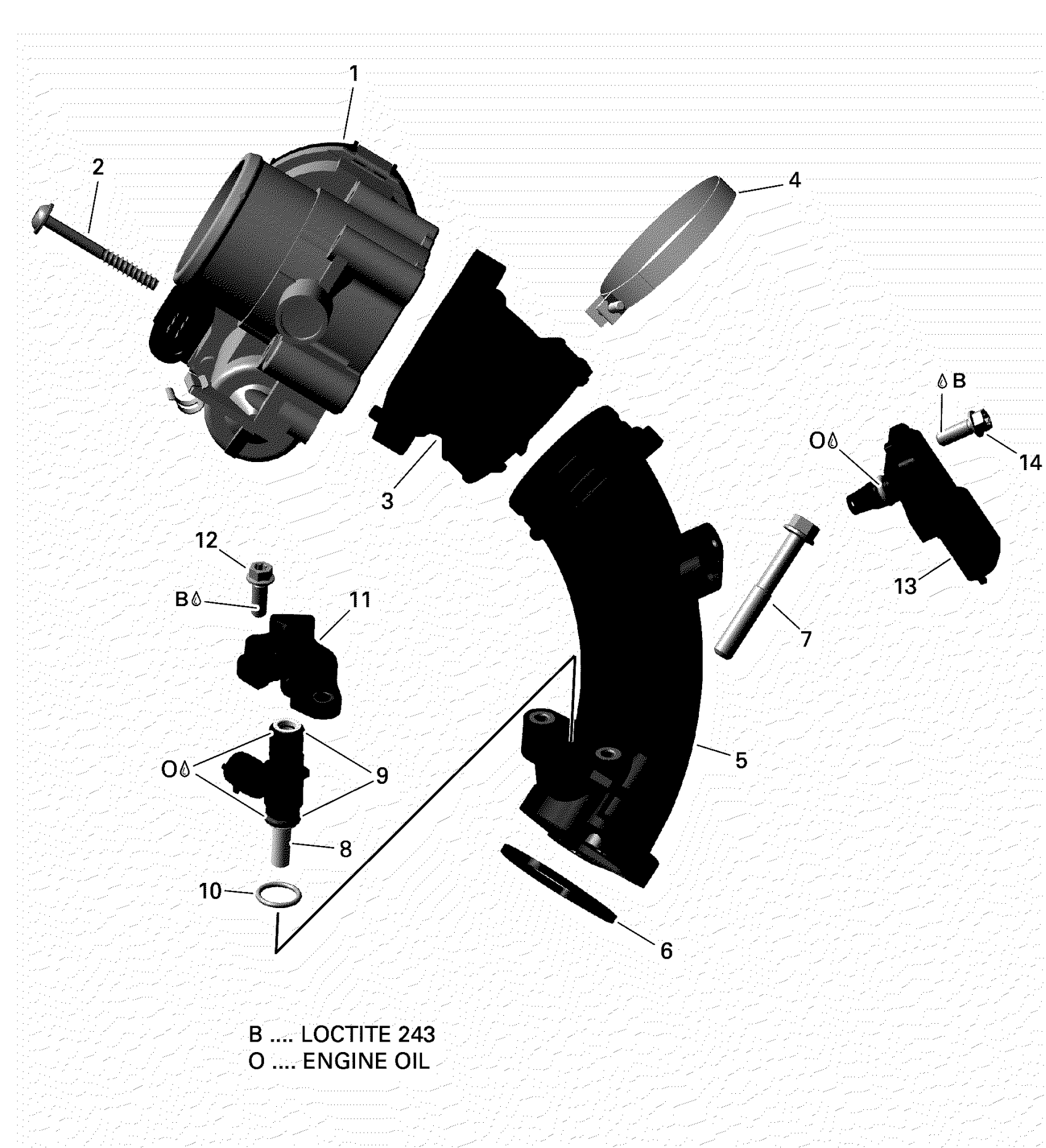

Can-Am Traxter HD5, 2017 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Throttle Body

420893149

$600.72

2

Torx Flange Screw M6 X 50

420441588

$4.15

3

Intake Socket

420267174

$58.93

4

Clamp

420251480

$13.18

5

Intake Adaptor

420267527

$41.76

6

Gasket

420630642

$5.06

7

Torx Flange Screw M8 X 55

420641213

$7.01

8

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

9

O-Ring

420631220

$13.18

10

O-Ring

420631296

$0.72

11

Fuel Rail

420874901

$22.36

12

Torx Flange Screw M6 X 16

420440164

$1.67

13

Pressure And Temperature Sensor

707000995

$81.31

14

Torx Flange Screw M6 X 16

420440164

$1.67
