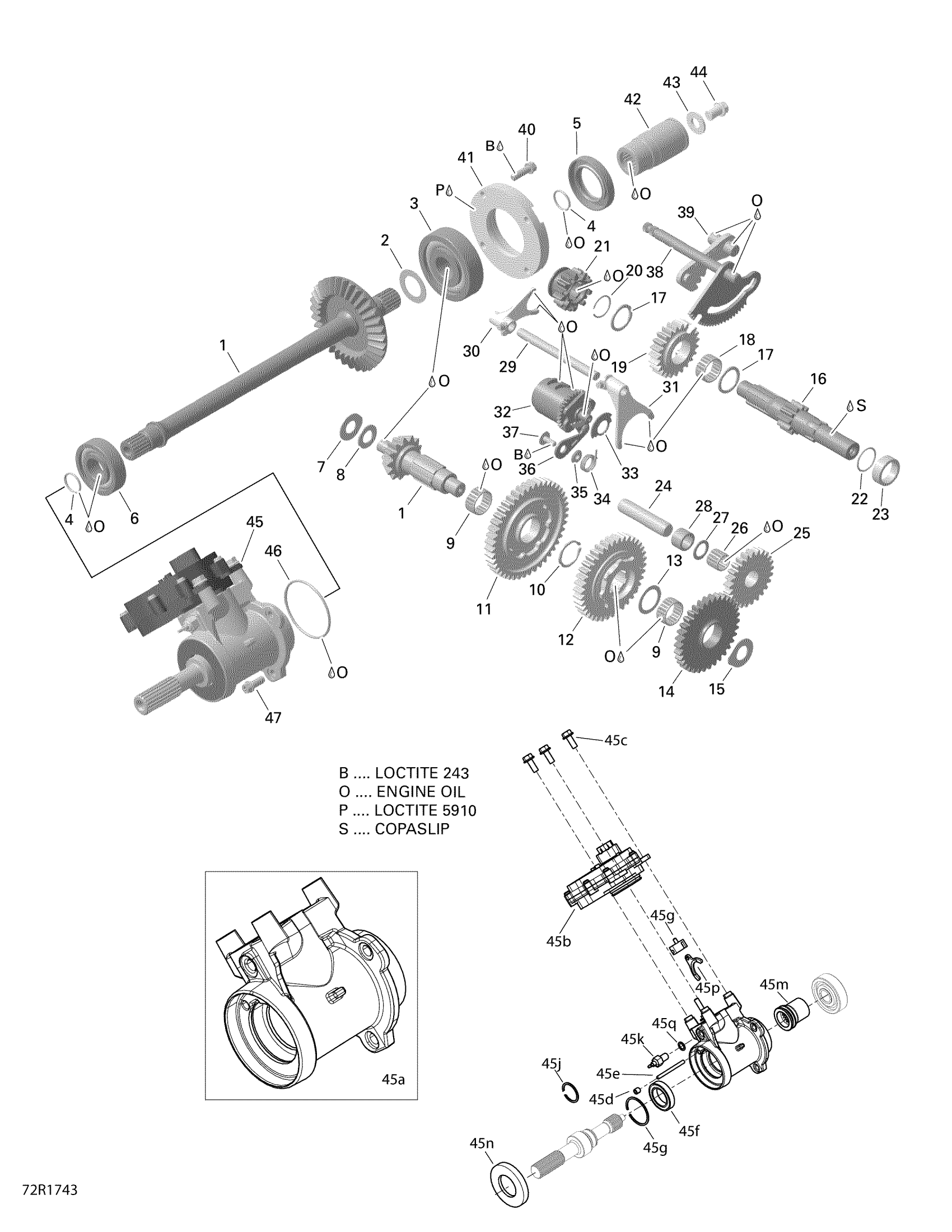

Can-Am Traxter HD5, 2017 Gear Box And Components Diagram

#

Description
Price

1

Gearbox | Include 9 to 14, 16 to 28

420684226

$679.99

1

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Oil Seal

420650683

$19.49

6

Ball Bearing

420932822

$30.49

7

Thrust Washer Set, MAG Side

420281306

$61.49

8

Axial Needle Bearing

420632300

$18.49

9

Needle Bearing

420632070

$25.99

10

Retaining Ring

420245850

$5.31

11

Sliding Gear 44T

420635584

$148.49

12

Gear Pinion 38T

420635573

$104.99

13

Thrust Washer

420427010

$3.98

14

Gear Pinion 34T

420635184

$88.99

15

Thrust Washer Set, CVT Side

420281302

$86.99

16

Countershaft 11T

420220972

$137.99

17

Thrust Washer

420227862

$3.98

18

Needle Bearing

420632070

$25.99

19

Gear Pinion 23T

420635603

$79.99

20

Circlip

420445302

$4.12

21

Gear Pinion 16T

420635215

$74.99

22

O-Ring

420630040

$4.44

23

Distance Ring

420247125

$20.99

24

Needle Pin

420229600

$37.99

25

Intermediate Gear 25T

420635674

$87.99

26

Needle Cage

420432034

$35.99

27

Thrust Washer

420944192

$2.61

28

Distance Ring

420247122

$8.09

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum

420257329

$179.99

33

Isolating Washer

420627782

$5.50

34

Index Spring

420238290

$11.12

35

Step Ring

420227717

$12.12

36

Index Lever Kit

703500254

$52.99

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever Ass'Y

420257319

$58.99

40

Torx Flange Screw M8 X 25

420440372

$4.12

41

Bearing Cover

420610243

$58.99

42

Output Sleeve

420947772

$121.99

43

Washer

420627761

$9.69

44

Collar Screw M12 X 20

420840855

$5.79

45>47r

SHIFTING UNIT - Call your local BRP dealership

420686741

$939.99

45a

Housing

705401632

$164.99

45b>45b3

Actuator Ass'Y | Includes 72 to 74

715900502

$499.99

45b1

Circlip | 4X4

293370042

$3.17

45b2

Fork | 4X4

705400274

$18.99

45b3

O-Ring

293300117

$4.44

45c

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

45d

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

45e

Dowell Pin | 4X4

250400025

$7.73

45f

Ball Bearing | 4X4

705400249

$25.99

45g

Slider | 4X4

705402139

$46.99

45h

Circlip | 4X4

293370029

$5.19

45j

Circlip | 4X4

293370030

$2.89

45k

SWITCH - Call your local BRP dealership | 4X4

710000324

$28.99

45m

Coupling Sleeve | 4X4

705400389

$31.99

45n

Oil Seal

293250348

$20.49

45p

Shifter Lever Plate | 4X4

705401553

$20.99

45q

Copper Washer

705601628

$4.44

45r

O-Ring

293300179

$2.51

46

O-Ring

420430390

$1.03

47

Allen Screw M8 x 20

420240072

$1.04
