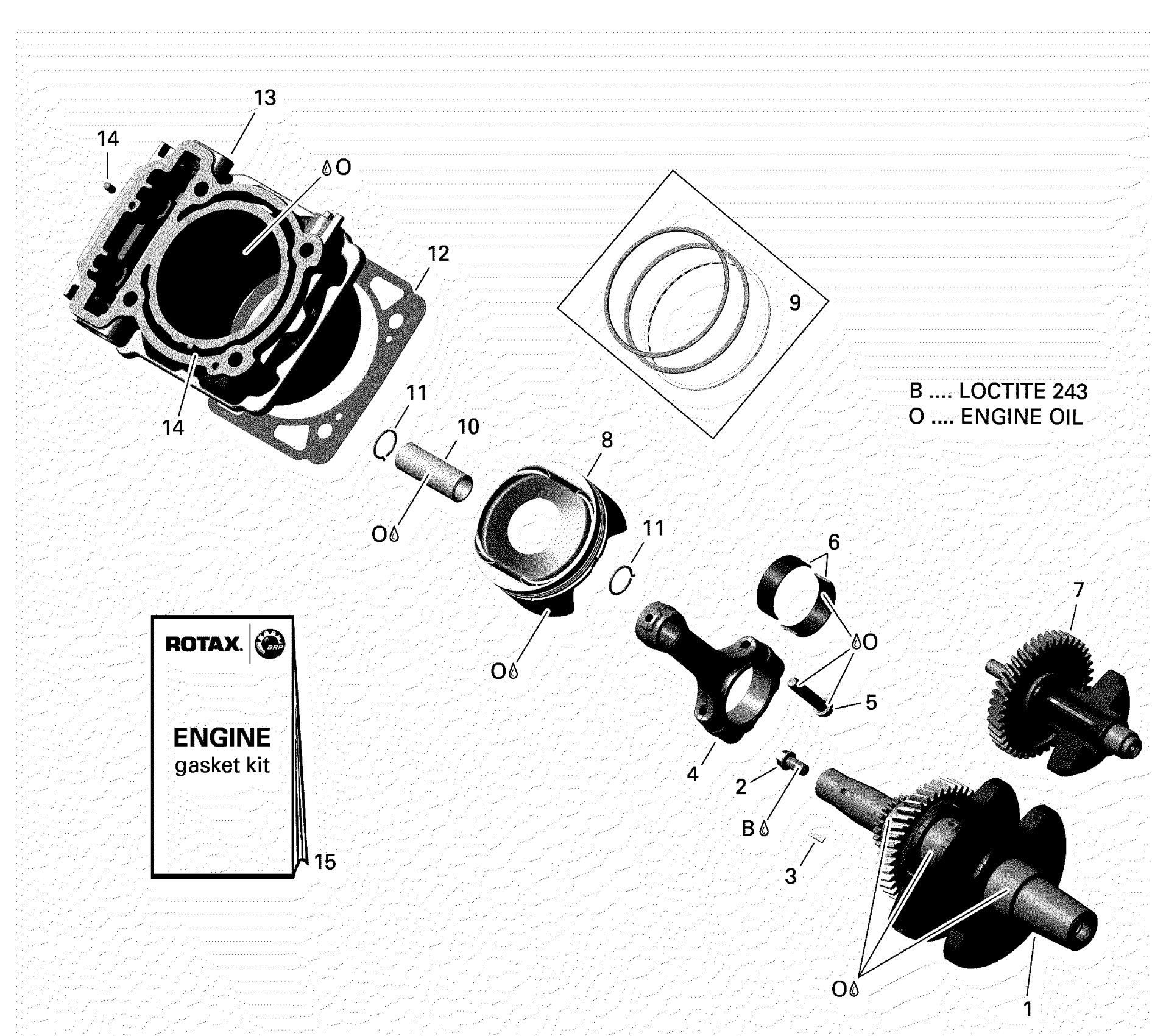

Can-Am Traxter HD5, 2017 Crankshaft And Piston Diagram

#

Description
Price

1

Crankshaft Ass'y

420295030

$670.99

2

Hex Screw

295501162

$15.28

3

Woodruff Key

420246571

$4.44

4>5

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

5

Connecting Rod Screw M8 X 1

420641645

$14.28

6

Plain Bearing 40 X 43 X 15

420233980

$28.49

7

Balance Shaft

420637455

$445.49

8

Piston Ass'y, 93.958 mm

420686310

$143.49

9

Piston Ring Set

420686314

$67.99

10

Piston Pin

420216270

$25.99

11

Piston Circlip

420845107

$4.89

12

Gasket

420450330

$13.76

13

Cylinder

420413263

$414.99

14

Drive Pin 5 X 10

420929650

$1.68

15

Gasket Set ( Engine)

420685125

$217.49
